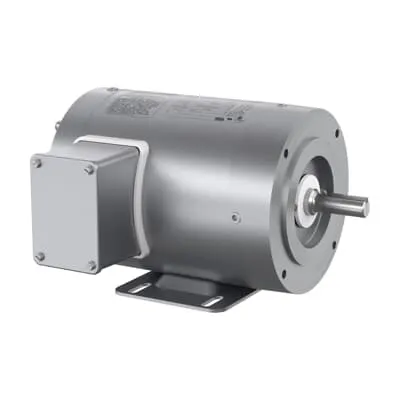

ABB 7BCESSWDM3546-5 Washdown Motor - IE3 Premium
Part Number: 7BCESSWDM3546-5
Quick Summary
Washdown Motor is a 1 HP, 575 V drive ideal for hygienic, washdown applications in food, beverage, and pharma manufacturing. Many engineers struggle with corrosion, downtime, and costly cleaning in sanitation-critical lines. This model meets premium efficiency IE3 and is available with CSA and UR certifications for safe, compliant operation. Built with stainless steel frame, 56C rotor, and C-Face mounting, it enables fast, predictable installation and reduced lifecycle costs. Its 575 V, 3‑phase design aligns with standard facility power and minimizes installation complexity. The stainless washdown version supports GMP hygiene needs and helps maximize uptime. With global stock and rapid lead times, procurement runs smoother for projects.
Product Information
Extended Description
7BCESSWDM3546-5 ABB: Washdown Motor 1 Hp 575 V (CESSWDM3546-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1775RPM,3PH,60HZ,56C,3522M,TENV
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CESSWDM3546-5
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Dimension Diagram
35LYW899: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TENV
Frame Material
Stainless Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
CESSWDM3546-5
Gross Volume
2110.969 in³
Gross Weight
46 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
1HP,1775RPM,3PH,60HZ,56C,3522M,TENV,F1,N
Made To Order
No
Medium Description
Stainless Washdown, 1 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 3 Phase, TENV Enclosure, 575 V, 60 Hz (CESSWDM3546-5)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56C
Motor Frame Suffix
C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
76 %
Product Name
Stainless Washdown
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
46 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
1.2 A
Rated Efficiency
85.50 %
Rated Speed
1745 r/min
Replaced Product ID (OLD)
7B35W899G198G1
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.63 in
Short Description
1 HP, 1800 RPM, Frame Size 56C, C-Face, 3 PH, TENV, 575 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
575 V
Stainless washdown construction with a 56C frame delivers a durable, sanitation-ready motor that resists caustic cleaners and frequent washdowns. The stainless steel exterior and C-Face mounting support robust mounting in compact spaces, while maintaining fast cleaning cycles between production shifts. By combining corrosion resistance with reliable performance, this motor reduces sanitation-related downtime on food and beverage lines and pharma packaging equipment. This aligns with GMP hygiene expectations and helps maintain product integrity. Core electricals include a 1 HP, 575 V, 3-phase design optimized for 60 Hz networks and direct-on-line starting. The 56C frame and NEMA B design, along with a 4-pole, single-speed rotor, ensure predictable torque for conveyors, mixers, and pumps. With IE3 premium efficiency, facilities realize energy savings and lower operating costs over the motor’s life, supporting sustainability targets and utility rebate opportunities. Installation and retrofit are simplified by C-Face drive end flange and horizontal, foot-mounted orientation. The motor aligns with standard Baldor/ABB 56C replacements, reducing spares inventory and downtime during swaps. The inverter-friendly 1.15 service factor provides headroom for short-term overloads and start/stop cycles common in washdown lines. Enclosure Type is TENV with insulation class F for continuous operation in moderate ambient temperatures up to 40 °C. Frame size 56C with 0.63 in shaft diameter and stainless frame supports rugged-duty service. The motor’s design emphasizes ease of cleaning and minimal corrosion risk in washdown zones. Availability and compliance are reinforced by multiple stock locations (US, China, and more) and a 0-day lead time in many warehouses. Certifications from CSA and UR help satisfy regulatory requirements for electrical equipment, while the product warranty policy ensures returns if needed.
Get a Quick Quote for a ABB 7BCESSWDM3546-5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCESSWDM3546-5?
Enquire Now
FAQs
The motor uses a 56C frame with a C‑Face drive end flange and foot-mounted base, enabling straightforward replacement of compatible motors in existing equipment. Its horizontal mounting and standard 3‑phase 575 V supply simplify wiring and conduit planning. Direct-on-line starting reduces control hardware needs, and the service factor of 1.15 provides headroom for startup surges typical in conveyors, pumps, and mixers in clean zones.
This model runs on 575 V, 3‑phase power at 60 Hz, delivering 1 HP at a 1745–1800 rpm range with a 56C frame. IE3 premium efficiency reduces energy consumption over the motor’s lifecycle, lowering operating costs and supporting sustainability goals. The 1.2 A rated current and 0.63 in shaft diameter are sized for reliable, long life in demanding washdown environments.
Yes. The 1 HP, 4‑pole design paired with a robust stainless steel frame and C‑Face mounting is ideal for conveyors, mixers, and pumps in food, beverage, and pharma equipment. Its TENV enclosure and corrosion‑resistant build help maintain uptime in washdown zones, while the 56C frame supports quick swaps within standard plant footprints.
The unit carries CSA and UR certifications, indicating compliance with electrical safety and performance standards. These approvals help facilities meet regulatory requirements for equipment used in regulated environments, support supplier qualification processes, and simplify audits for food, beverage, and pharmaceutical manufacturing.
The stainless steel, washdown-ready construction minimizes corrosion-related maintenance and sanitation downtime. IE3 efficiency lowers energy costs, while the 1.15 service factor provides resilience during operational fluctuations. Stock availability across multiple warehouses shortens lead times, improving project timelines and overall return on investment through reduced downtime and faster replacements.
