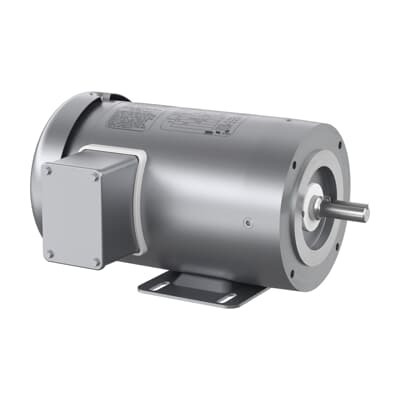

ABB 7BCESSWDM3554 Washdown Motor - NEMA Premium
Part Number: 7BCESSWDM3554
Quick Summary
Washdown motors deliver reliable 1.5 HP performance for hygienic, high-cleanliness environments like food and beverage processing. Facilities often struggle with corrosion, downtime, and costly washdowns that disrupt production. This ABB model meets premium efficiency standards with IE3 and carries CSA EEV, UR, and NEMA Premium certifications for compliance and reliability. Designed for 230/460 V three-phase systems, it features a stainless-steel frame and TEFC enclosure, which simplifies cleaning and extends service life. With stock across multiple warehouses, 0-day lead times are achievable, reducing procurement risk. The combination of rugged construction and industry-aligned electrical specs also supports quick deployment in bottling lines, packaging systems, and other sanitary manufacturing processes.
Product Information
Extended Description
7BCESSWDM3554 ABB: Washdown Motor 1.50 Hp 230 V (CESSWDM3554)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,1770RPM,3PH,60HZ,56C,3524M,TE
Ambient Temperature
40 °C
Bearing
6205, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
CESSWDM3554
Certification Agency
CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
35LYV810: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Stainless_Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
CESSWDM3554
Gross Volume
3496.049 in³
Gross Weight
41 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
1.5HP,1770RPM,3PH,60HZ,56C,3524M,TEFC,F1
Made To Order
No
Medium Description
Stainless Washdown, 1.5 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CESSWDM3554)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56C
Motor Frame Suffix
C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
1.50 Hp
Power Factor
72 %
Product Name
Stainless Washdown
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
41 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
4.6 A | 2.3 A
Rated Efficiency
86.50 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.63 in
Short Description
1.5 HP, 1800 RPM, Frame Size 56C, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The 1.5 HP output with 60 Hz operation delivers steady torque for conveyors, pumps, and mixers, improving throughput while maintaining energy efficiency under continuous use. This performance translates to measurable cost reductions in running power and equipment downtime across packaging lines and sanitary washdown stations. Feature → Business Impact → Application: A stainless-steel frame combined with a TEFC enclosure resists corrosion from aggressive cleaning protocols, extending motor life in CIP environments and reducing maintenance cycles in dairy, meat, and beverage lines. Feature → Business Impact → Application: The 56C frame and C-face mounting with horizontal orientation streamline replacement and alignment with existing conveyors and gear reducers, lowering installation time and spare-part inventory costs in OEM integrator projects. Feature → Business Impact → Application: IE3 Premium efficiency and NEMA Premium/CSA EEV certifications provide regulatory compliance and energy savings, supporting green initiatives and reducing total cost of ownership for facilities aiming to meet industry standards. Feature → Business Impact → Application: 230/460 V three-phase operation with a robust 1770 rpm nominal speed ensures compatibility with common plant electrical infrastructure and synchronous drive requirements, enabling retrofit projects without extensive electrical upgrades. Feature → Business Impact → Application: Stocked at multiple warehouses with 0-day lead time minimizes downtime risk in critical production environments, enabling rapid deployment for sanitary processing lines, bottling, and packaging systems.
Get a Quick Quote for a ABB 7BCESSWDM3554
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCESSWDM3554?
Enquire Now
FAQs
The motor is designed for foot mounting with horizontal orientation and a C-face mounting option, featuring a 56C frame and a 0.63 in shaft diameter. This makes it compatible with standard conveyor drives, pumps, and gear reducers, simplifying retrofit and new installations while reducing alignment time and misfit risk.
The motor operates at 230/460 V, 3-phase, 60 Hz, with a rated speed of 1770 r/min and a power rating of 1.50 HP. It achieves IE3 Premium efficiency and carries NEMA Premium and CSA EEV certifications, supporting energy savings and regulatory compliance in demanding environments.
Yes. The stainless steel frame plus TEFC enclosure provides corrosion resistance and washdown compatibility, ideal for hygienic applications in food, beverage, and pharmaceutical processing where frequent cleansing is required without compromising performance.
The motor carries IE3 Premium efficiency, CSA EEV, UR, and NEMA Premium certifications. These ensure regulatory compliance, energy efficiency, and reliability across North American markets, reducing risk in audits and enabling smoother integration with compliant equipment lines.
Lead time is listed as 0 day, and the motor is stocked at multiple warehouses (including US and international locations), enabling rapid procurement and minimizing downtime when replacing or expanding sanitary motor installations.
