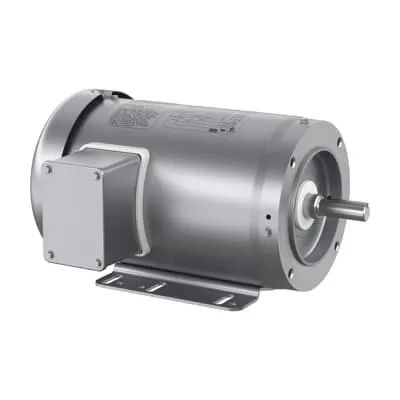

ABB 7BCESSWDM3554-H Washdown Motor - IP56 TEFC
Part Number: 7BCESSWDM3554-H
Quick Summary
ABB 7BCESSWDM3554-H Washdown Motor provides reliable 1.5 HP operation for sanitary process lines. In manufacturing environments that demand frequent cleaning, downtime and corrosion worries can spike maintenance costs. This motor leverages a stainless steel frame and TEFC enclosure with IP56 protection to stand up to high-pressure washdowns. It also carries premium efficiency ratings and regulatory approvals that simplify compliance and energy management. By matching a 230/460 V, 60 Hz three-phase supply with a compact 56HC frame and C-face mounting, it delivers installation flexibility and long-term performance for food, beverage, and pharmaceutical applications.
Product Information
Extended Description
7BCESSWDM3554-H ABB: Washdown Motor 1.50 Hp 230 V (CESSWDM3554-H)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,1770RPM,3PH,60HZ,56HC,3526M,T
Ambient Temperature
40 °C
Bearing
6205
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
CESSWDM3554-H
Certification Agency
CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
35LY-000-351: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Stainless_Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
CESSWDM3554-H
Gross Volume
3496.049 in³
Gross Weight
45 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IP Class
IP56
Insulation Class
F
Invoice Description
1.5HP,1770RPM,3PH,60HZ,56HC,3526M,TEFC,F
Made To Order
No
Medium Description
Stainless Washdown, 1.5 HP, 1800 RPM, Frame Size 56Hc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CESSWDM3554-H)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56HC
Motor Frame Suffix
CH
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
1.50 Hp
Power Factor
75 %
Product Name
Stainless Washdown
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
45 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
4.4 A | 2.2 A
Rated Efficiency
86.50 %
Rated Speed
1760 r/min
Replaced Product ID (OLD)
7B35E6084Z819G1
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.63 in
Short Description
1.5 HP, 1800 RPM, Frame Size 56Hc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature: Stainless washdown design with a stainless steel frame and TEFC enclosure. Business impact: Enhances corrosion resistance and hygiene, reducing maintenance frequency and improving sanitary cleanliness in washdown environments. Application: Food and beverage lines, pharmaceutical equipment, and other sanitary process machinery. Feature: IP56 protection with a C-face enclosure and drive end flange. Business impact: Superior ingress protection against water and dust, enabling reliable operation during aggressive cleaning cycles. Application: Conveyor systems and packaging lines in wet production areas. Feature: 1.5 HP, 230/460 V, 60 Hz three-phase design. Business impact: Flexible power input and strong starting torque for continuous-duty tasks, compatible with common VFDs and power distributions. Application: Mixers, pumps, and conveyors in automated lines. Feature: Premium efficiency (86.50%) with service factor 1.15. Business impact: Lower energy costs, improved motor life, and greater torque reserve under peak loads. Application: High-cycle applications with variable loads in processing plants. Feature: Foot-mounted, horizontal mounting with 56HC frame and C-Face mounting. Business impact: Easy retrofit and straightforward installation in compact equipment footprints. Application: Replacement motors in existing C-face housings and new sanitary installations.
Get a Quick Quote for a ABB 7BCESSWDM3554-H
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCESSWDM3554-H?
Enquire Now
FAQs
Begin with a standard C-face drive end flange alignment and a foot-mounted base. Use horizontal orientation (F1) on a compatible 56HC frame, connect to a 3-phase 230/460 V, 60 Hz supply, and ensure mount bolts align with serviceable bearings. Verify IP56 TEFC enclosure sealing and leave space for cooling in high-pressure washdown areas.
Yes. The motor features a stainless steel frame and TEFC enclosure with an IP56 rating, designed to withstand frequent high-pressure cleaning and sanitize-ready surfaces. This minimizes corrosion risk, reduces downtime, and supports reliability on sanitary conveyors and mixers in food and beverage lines.
The motor operates on 230 V or 460 V, three-phase at 60 Hz. It is compatible with standard VFDs for soft-start and speed control, preserving motor life and reducing peak electrical stresses on conveyors, pumps, and other continuous-duty equipment.
The 7BCESSWDM3554-H carries CSA EEV, UR, and NEMA Premium (NEMA_PREMIUM) approvals, with a NEMA design B and IP56 TEFC protections. It meets industry standards for efficiency, safety, and reliability in sanitary applications such as food, beverage, and pharmaceuticals.
With a rated efficiency of 86.50% and a service factor of 1.15, the motor delivers better energy use against typical loads, especially in continuous-duty lines. ROI depends on run-time, duty cycle, and load profiles; the improved efficiency reduces operating costs, while robust construction lowers replacement and maintenance expenses in washdown environments.
