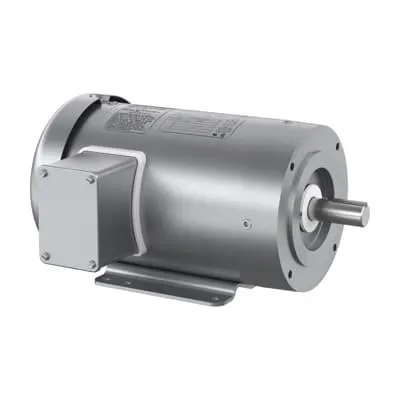

ABB 7BCESSWDM3559T Washdown Motor - TEFC, 3HP, IE3
Part Number: 7BCESSWDM3559T
Quick Summary
ABB 7BCESSWDM3559T Washdown Motor delivers rugged, sanitary-duty performance for food, beverage, and pharmaceutical processing lines. Facilities wrestle with frequent washdowns and corrosion that threaten uptime; this motor’s stainless-steel frame and TEFC enclosure resist aggressive cleaning and harsh environments. It is certified for CSA, CSA EEV, UR, and NEMA Premium IE3 efficiency, aligning with regulatory and energy-performance benchmarks. Ideal for stainless washdown applications and 3-phase service at 208-230/460 V and 60 Hz, it helps reduce maintenance costs and energy consumption while ensuring regulatory compliance. This combination of mechanical robustness and high-efficiency operation translates to longer motor life and lower total cost of ownership across demanding production environments.
Product Information
Extended Description
7BCESSWDM3559T ABB: Washdown Motor 3 Hp 208 V (CESSWDM3559T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,3470RPM,3PH,60HZ,143TC,3546M,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
CESSWDM3559T
Certification Agency
CSA | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
A
Dimension Diagram
35LYVV818: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Stainless_Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
CESSWDM3559T
Gross Volume
3496.049 inÂł
Gross Weight
74 lb
Horsepower Rating UL/CSA
3.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
3HP,3470RPM,3PH,60HZ,143TC,3546M,TEFC,F1
Lubrication
For life
Made To Order
No
Medium Description
Stainless Washdown, 3 HP, 3600 RPM, Frame Size 145Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 208-230/460 V, 60 Hz (CESSWDM3559T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
91 %
Product Name
Stainless Washdown
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
74 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
7.7 A | 7.4 A | 3.7 A
Rated Efficiency
86.50 %
Rated Speed
3470 r/min
Replaced Product ID (OLD)
7B35VV818R930G1
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
3 HP, 3600 RPM, Frame Size 145Tc, C-Face, 3 PH, TEFC, 208-230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101115
Voltage Code
P
Voltage Rating
208 V | 230 V | 460 V
Stainless washdown construction and TEFC enclosure deliver corrosion resistance in frequent cleaning cycles, reducing downtime and maintenance. With a 3 HP rating and a nominal 3470 r/min, it provides reliable torque for conveyors, pumps, and mixers even during aggressive washdowns. Foot-mounted, C-face mounting on a 145TC frame with 208-230/460 V 3-phase power simplifies installation and retrofit, while direct-on-line starting minimizes startup time. IE3 Premium efficiency and NEMA Premium compliance lower operating costs and support energy-management goals. Certifications CSA, CSA EEV, UR, and NEMA Premium provide regulatory assurance for global plants. Stocked at multiple warehouses with 0 day lead time, this model supports rapid procurement for demanding production schedules.
Get a Quick Quote for a ABB 7BCESSWDM3559T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCESSWDM3559T?
Enquire Now
FAQs
The motor is foot-mounted with C-face drive end mounting and uses a 145TC frame. It supports 208-230V, 3-phase or 460V, 60 Hz power, enabling direct connection to standard plant electrical systems and straightforward alignment with existing equipment.
It meets IE3 Premium efficiency standards and delivers a nominal speed of 3470 r/min with a rated output of 3 HP. The service factor is 1.15, supporting reliable operation under typical process loads.
Yes. The stainless steel frame and TEFC enclosure are designed for frequent washdowns, offering corrosion resistance and durable sealing that maintain uptime on conveyors, pumps, and processing equipment in food, beverage, and pharmaceutical lines.
Certifications include CSA, CSA EEV, UR, and NEMA Premium IE3 efficiency, ensuring compliance with North American electrical codes and energy-performance standards across regulated industries.
Lead time is listed as 0 days, and it is stocked at multiple warehouses (including US and international locations), enabling rapid procurement to minimize production downtime and support just-in-time manufacturing.
