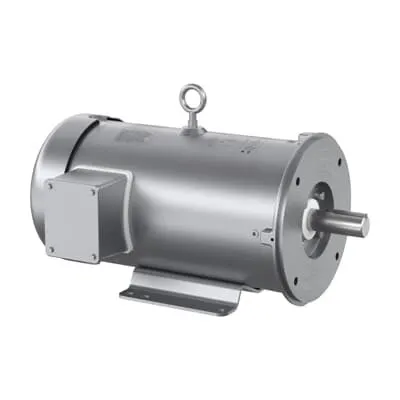

ABB CESSWDM3613T-5 Washdown Motor - NEMA Premium
Part Number: 7BCESSWDM3613T-5
Quick Summary
ABB CESSWDM3613T-5 Washdown Motor is a 5 HP, 575 V three‑phase motor designed for sanitary environments and washdown‑ready equipment. This solution addresses downtime and corrosion risk by combining stainless steel framing with a robust TEFC enclosure. It carries critical certifications including NEMA Premium efficiency, CSA EEV, and UR to support regulatory compliance in global facilities. With a focus on reliability and cleanability, this motor minimizes maintenance intervals while maximizing uptime. The design aligns with high‑demand industrial processes, offering compatibility with 60 Hz power and 3‑phase systems, while delivering energy savings and predictable performance in food & beverage, pharmaceutical, and dairy lines.
Product Information
Extended Description
7BCESSWDM3613T-5 ABB: Washdown Motor 5 Hp 575 V (CESSWDM3613T-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,3480RPM,3PH,60HZ,184TC,3636M,TE
Ambient Temperature
40 °C
Bearing
6206, Ball
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
CESSWDM3613T-5
Certification Agency
CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
A
Dimension Diagram
36LYL738: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Stainless_Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
CESSWDM3613T-5
Gross Volume
5274.135 in³
Gross Weight
106 lb
Horsepower Rating UL/CSA
5.000 Hp
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
F
Invoice Description
5HP,3480RPM,3PH,60HZ,184TC,3636M,TEFC,F1
Made To Order
No
Medium Description
Stainless Washdown, 5 HP, 3600 RPM, Frame Size 184Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 575 V, 60 Hz (CESSWDM3613T-5)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
90 %
Product Name
Stainless Washdown
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
106 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
4.63 A
Rated Efficiency
90.20 %
Rated Speed
3480 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.13 in
Short Description
5 HP, 3600 RPM, Frame Size 184Tc, C-Face, 3 PH, TEFC, 575 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
575 V
Feature → Business Impact → Application: Stainless steel frame and TEFC enclosure provide superior corrosion resistance and washdown durability, reducing cleaning labor and extending motor life in sanitary environments like food processing lines. This leads to lower total cost of ownership and less downtime during sanitation cycles. Application: meat/poultry processing, dairy, beverage packaging. Feature → Business Impact → Application: 5 HP, 3480 rpm at 60 Hz delivers sufficient torque for conveyors, mixers, and pumps while maintaining efficient energy use, lowering operating costs and improving line throughput. Application: packaging lines and small- to mid‑size processing equipment. Feature → Business Impact → Application: 575 V three‑phase direct on line starting simplifies electrical installation and reduces control complexity, enabling faster commissioning and improved startup reliability on new lines and retrofit projects. Application: plant modernization and new line builds. Feature → Business Impact → Application: Service Factor 1.15 provides headroom for motor starting surges and short overloads, improving reliability in variable load scenarios and reducing nuisance trips in demanding processes. Application: dosing systems and vertical filling lines. Feature → Business Impact → Application: C‑Face drive end flange and 184TC frame compatibility enable straightforward mounting in existing equipment footprints, cutting installation time and rework. Application: retrofits and OEM equipment upgrades. Feature → Business Impact → Application: 60 Hz operation with 3‑phase power and 3480 r/min synchronous speed ensures predictable performance across standard industrial grids, supporting consistent throughput and energy‑efficient operation in continuous duty environments.
Get a Quick Quote for a ABB 7BCESSWDM3613T-5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCESSWDM3613T-5?
Enquire Now
FAQs
The CESSWDM3613T-5 is designed as a foot‑mounted unit with a C‑Face drive end flange and a horizontal mounting position, using the 184TC frame. This combination provides straightforward alignment with existing equipment footprints, simplifies replacement, and enables quick retrofits in conveyors, pumps, and mixers. Ensure mounting surfaces are clean and accessible for routine washdowns.
Yes. The stainless steel frame and TEFC enclosure offer excellent protection against splash and corrosion in washdown environments. Rated for 40 °C ambient temperatures, the motor is built to withstand frequent cleaning cycles common in food processing, dairy, and beverage applications, while preserving electrical integrity and performance over time.
This motor carries CSA EEV, UR, and NEMA Premium certifications, signaling compliance with safety standards and energy efficiency requirements. For regulated facilities, these certifications simplify supplier qualification, improve energy reporting, and help meet corporate sustainability goals while ensuring safe operation in North American and multi‑site deployments.
The motor operates on 575 V, 60 Hz, three‑phase power and supports direct on line starting, reducing control complexity and enabling rapid commissioning. Verify your facility has a 575 V, 3‑phase power supply with adequate breaker protection and appropriate wiring to meet the motor’s 4.63 A nominal current and 1.15 service factor.
Maintenance is minimized by a stainless washdown design and TEFC enclosure, which resist corrosion and simplify cleaning. With a 1.15 service factor and IE3 efficiency, energy costs are reduced, contributing to faster ROI. Warranties are contingent on standard terms, and the vendor notes that warranty returns apply if required; stock is readily available from multiple warehouses to support uptime.
