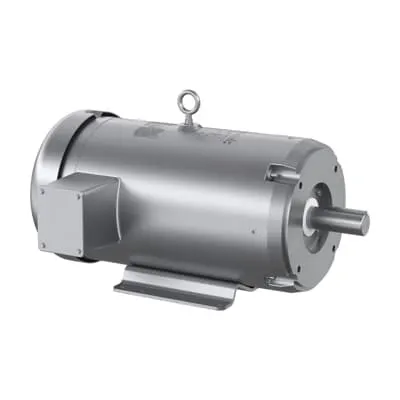

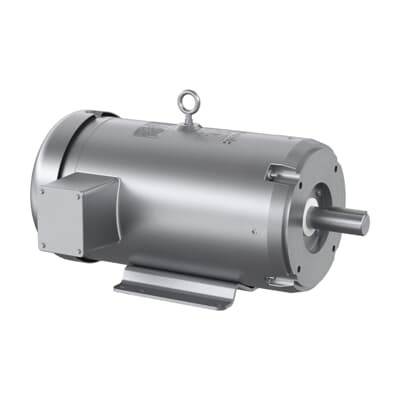

ABB Washdown Motor 7BCESSWDM3710T - NEMA Premium
Part Number: 7BCESSWDM3710T
Quick Summary
ABB washdown motor 7BCESSWDM3710T delivers durable, sanitary drive for food and beverage processing environments. In high-humidity lines or washdown stations, maintenance fatigue and corrosion risk can drive downtime. This motor carries CSA EEV, UR, and NEMA Premium certifications, plus a stainless TEFC frame for demanding environments. Designed for food processing and general sanitary equipment, it also aligns with energy‑efficiency goals thanks to IE3/NEMA Premium ratings and a life‑lubricated bearing. This translates to lower total cost of ownership, predictable service life, and consistent performance in sanitary lines. Its 213TC frame, C-face mounting, and foot‑mounted base simplify retrofits and new installations across global facilities.
Product Information
Extended Description
7BCESSWDM3710T ABB: Washdown Motor 7.50 Hp 230 V (CESSWDM3710T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5HP,1770RPM,3PH,60HZ,213TC,3740M,
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6307, Sealed Bearing
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
CESSWDM3710T
Certification Agency
CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
A
Dimension Diagram
37LYJ639: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Stainless_Steel
Frame Size
213
Frequency (f)
60 Hz
Global Commercial Alias
CESSWDM3710T
Gross Volume
7561.383 inÂł
Gross Weight
137 lb
Horsepower Rating UL/CSA
7.500 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
7.5HP,1770RPM,3PH,60HZ,213TC,3740M,TEFC
Lubrication
For life
Made To Order
No
Medium Description
Stainless Washdown, 7.5 HP, 1800 RPM, Frame Size 213Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CESSWDM3710T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
213TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
7.50 Hp
Power Factor
81 %
Product Name
Stainless Washdown
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
137 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
19 A | 9.5 A
Rated Efficiency
91.70 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.38 in
Short Description
7.5 HP, 1800 RPM, Frame Size 213Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101115
Voltage Code
J
Voltage Rating
230 V | 460 V
Stainless washdown design with a TEFC enclosure resists corrosive cleaning chemistries, extending motor life in harsh washdown zones. The stainless frame reduces pitting and contamination risk, lowering maintenance frequency and sparing downtime on critical lines. Ideal for food and beverage processing equipment, pharmaceutical packaging, and meat/poultry processing lines where frequent washdowns are required. 7.5 HP at 1770 rpm with a 60 Hz, 230/460 V rating ensures compatibility with common industrial power systems. Direct-on-line starting minimizes control complexity and startup duration, improving line uptime and reducing soft-start equipment costs. 213TC frame, C-face mounting, and foot-mounted base allow quick retrofit or new install alignment with standard conveyors and pumps. The footprint supports horizontal mounting with robust 1.15 service factor for heavy loads, while the 1.38 in shaft diameter provides resilient coupling compatibility. Energy efficiency of 91.70% aligns with premium standards, delivering measurable operating cost savings during continuous operation and helping meet sustainability targets without sacrificing torque. Maintenance-free lubrication “For life” plus sealed bearings (6307) minimize daily upkeep. TEFC design and stainless construction support longer service intervals and sanitation compliance. Certifications CSA EEV, NEMA Premium, and UR marks reinforce reliability, quality control, and regulatory compliance for regulated facilities.
Get a Quick Quote for a ABB 7BCESSWDM3710T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCESSWDM3710T?
Enquire Now
FAQs
Yes. It uses a 213TC frame with C‑Face mounting and a foot‑mounted base, designed for horizontal installation and easy retrofit into existing equipment. The footprint aligns with standard conveyors, pumps, and mixers, minimizing retrofit risk. Ensure supply is 230/460 V and 3‑phase, with 60 Hz operation to match downstream controls.
It is a three‑phase, 4‑pole motor rated for 60 Hz with 230/460 V dual voltage. The motor delivers 7.50 HP at 1770 r/min, with rated current of 19 A (line) or 9.5 A per winding. Efficiency is 91.70% (IE3/NEMA Premium), supporting energy savings on continuous‑duty applications.
Best suited for sanitary lines in food & beverage processing, beverage packaging, meat/poultry, and pharmaceutical equipment where frequent washdowns occur. The stainless frame, TEFC enclosure, and sanitary mounting support CIP/SIP processes, while direct‑on‑line starts simplify line startups and reduce control hardware needs.
The motor carries CSA EEV, NEMA Premium, and UR certifications, plus compliance with NEMA standards. These marks support regulatory approval in regulated facilities and assure energy‑efficient performance, robust construction, and quality control suitable for demanding sanitary environments.
Lubrication is life‑long with sealed bearings (6307), reducing routine maintenance. Warranty terms indicate that warranty returns are required for warranty claims. The combination of corrosion resistance, sealed bearings, and robust TEFC construction supports longer service intervals, lower downtime, and a favorable return on investment in sanitary production lines.
