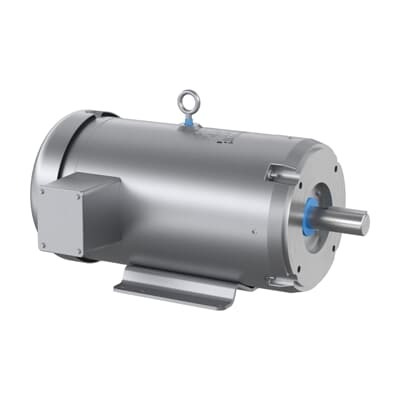

ABB 7BCESSWDM3711T-5 Washdown Motor - TEFC Enclosure
Part Number: 7BCESSWDM3711T-5
Quick Summary
ABB washdown motor 7BCESSWDM3711T-5 delivers 10 HP at 575 V for sanitary processing environments. Operators often face corrosion, frequent cleaning downtime, and unpredictable performance in washdown zones. This unit carries CSA and UR certifications and adheres to NEMA standards to ensure reliability in demanding applications. With a stainless steel frame and TEFC enclosure, it combines sanitary design with robust efficiency, delivering longer uptime and lower life-cycle costs. Designed for direct installation and compatible with C-face mounting and the 215TC footprint, it fits existing lines while improving sanitation compliance.
Product Information
Extended Description
7BCESSWDM3711T-5 ABB: Washdown Motor 10 Hp 575 V (CESSWDM3711T-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
0HP,3500RPM,3PH,60HZ,215TC,3744M,T
Ambient Temperature
40 °C
Bearing
6307, Sealed Bearing
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CESSWDM3711T-5
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
C-Face
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Stainless Steel
Frame Size
Undefined
Global Commercial Alias
CESSWDM3711T-5
Gross Weight
154 lb
Insulation Class
F
Invoice Description
0HP,3500RPM,3PH,60HZ,215TC,3744M,TEFC,F
Made To Order
No
Medium Description
Frame Size 215Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, (CESSWDM3711T-5)
Minimum Order Quantity
1 piece
Motor Base Type
Rigid
Motor Frame Size
215TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
10 Hp
Power Factor
94 %
Product Name
WD - Stainless
Product Net Depth / Length
0 in
Product Net Height
0 in
Product Net Weight
154 lb
Product Net Width
0 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
8.5 A
Rated Efficiency
91.70 %
Rated Speed
3500 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.38 in
Short Description
Frame Size 215Tc, C-Face, 3 PH, TEFC,
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
Voltage Rating
575 V
The TEFC enclosure and stainless steel frame provide corrosion resistance and washdown-ready durability, reducing maintenance and downtime in food and beverage lines; this translates to higher line uptime and safer sanitation practices. The 215TC frame with C-face mounting enables straightforward retrofits or new installations on existing equipment footprints, cutting installation time and costs. A 10 HP, 575 V, 3-phase, 2-pole design delivers reliable, direct-on-line starting, minimizing soft-start requirements and improving startup consistency in packaging lines. Rated at 3500 r/min with a 1.15 service factor and sealed 6307 bearings, the motor handles continuous duty in warm plant environments up to 40 C ambient, supporting long service life. Its stainless steel base and rigid mounting option simplify alignment and reduce vibration, optimizing machine reliability in demanding sanitary processes. Budget-conscious manufacturers appreciate the combination of premium efficiency and readily available stock across multiple warehouses, ensuring quick replenishment and predictable maintenance planning. The unit's 215Tc frame and TEFC enclosure are compatible with a wide range of compatible drives and control schemes, easing integration with modern PLCs and VFDs where applicable, while maintaining compliance with industry sanitation standards.
Get a Quick Quote for a ABB 7BCESSWDM3711T-5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCESSWDM3711T-5?
Enquire Now
FAQs
This model uses a 215TC frame with C-Face mounting and TEFC enclosure, designed for direct mounting to rigid bases. Ensure footprint compatibility with existing flange, shaft alignment of 1.38 in, and correct coupling. Verify 575 V, 3-phase power and a direct-on-line start sequence to minimize wiring changes and downtime.
The motor delivers a rated efficiency of 91.70% and a service factor of 1.15, suitable for continuous operation. It is a 3-phase, 575 V, 2-pole design, with a rated speed of 3500 r/min and synchronous speed of 3600 r/min. The shaft diameter is 1.38 in, supporting robust mechanical connections.
Industries such as food and beverage processing, packaging lines, and pharmaceutical equipment benefit from the TEFC stainless-steel frame and washdown-ready design. The motor handles frequent cleaning cycles and moisture exposure while maintaining sanitary compliance and consistent performance in high-hygiene environments.
The motor carries CSA and UR certification, supporting safe electrical compliance, and aligns with NEMA standards for reliability in industrial environments. The TEFC enclosure and stainless frame further support sanitary installation and durable operation in demanding production lines.
With a stainless steel frame, sealed bearings, and a 0-day lead time stock availability, this motor reduces downtime and maintenance costs. Direct on line starting minimizes drive hardware requirements and startup energy, while high efficiency contributes to lower operating costs over the motor’s long service life.
