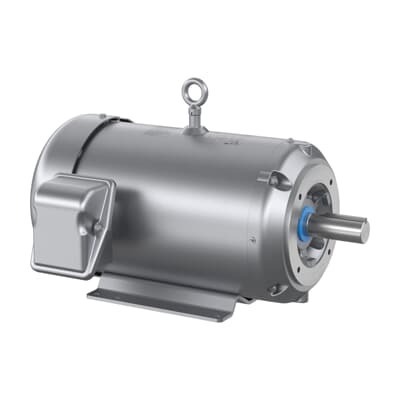

ABB 7BCESSWDM41906T Washdown Motor - NEMA Premium
Part Number: 7BCESSWDM41906T
Quick Summary
Washdown motor provides reliable power for sanitary cleaning in food, beverage, and pharmaceutical environments. Many users face corrosion in wet areas, frequent washdowns, and downtime from subpar enclosures. This ABB unit meets NEMA Premium efficiency, CSA EEV, and UR certifications, helping you align with energy and safety standards. The stainless TEFC enclosure and 256TC frame support straightforward installation, standard mounting, and durable operation at 60 Hz with 230/460 V. Designed for stainless washdown, it reduces maintenance costs and extends service life, delivering consistent performance in demanding production lines. Its 20 HP rating and robust build also help maximize uptime in continuous duty applications.
Product Information
Extended Description
7BCESSWDM41906T ABB: Washdown Motor 20 Hp 230 V (CESSWDM41906T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
20HP,3525RPM,3PH,60HZ,256TC,3960M,T
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6309, Sealed Bearing
Bearing NDE
6208
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
CESSWDM41906T
Certification Agency
CSA | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
39LYE119: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Stainless_Steel
Frame Size
256
Frequency (f)
60 Hz
Global Commercial Alias
CESSWDM41906T
Gross Volume
14448.906 inÂł
Gross Weight
141.521 kg
Horsepower Rating UL/CSA
20.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
20HP,3525RPM,3PH,60HZ,256TC,3960M,TEFC,F
Lubrication
For life
Made To Order
No
Medium Description
Stainless Washdown, 20 HP, 3600 RPM, Frame Size 256Tc, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CESSWDM41906T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
256TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
20 Hp
Power Factor
93 %
Product Name
Stainless Washdown
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
141.521 kg
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
43 A | 21.5 A
Rated Efficiency
91 %
Rated Speed
3525 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.15 %
Shaft Diameter
1.63 in
Short Description
20 HP, 3600 RPM, Frame Size 256Tc, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101115
Voltage Code
G
Voltage Rating
230 V | 460 V
Stainless washdown design with TEFC enclosure provides exceptional corrosion resistance and a hygienic operating environment, translating to lower maintenance costs and fewer production disruptions in food processing and pharmaceutical lines. This directly improves process uptime and product quality by maintaining motor performance under frequent washdowns and high-pressure cleaning cycles. The business impact is a longer service life with less replacement expense and easier compliance with sanitary standards in cleanroom and production environments. The motor’s energy-efficient NEMA Premium IE3 designation reduces operating costs over the equipment lifecycle, supporting regulatory compliance and sustainability targets for facilities with energy management programs. With a 230/460 V, 3-phase supply and 60 Hz operation, the drive integrates seamlessly with standard plant power systems, minimizing electrical retrofit requirements and simplifying installation on existing conveyors and pumps. The 256TC frame and foot-mounted, horizontal F1 mounting enable straightforward retrofits and rapid commissioning on common equipment footprints, reducing commissioning time and accelerating time-to-value. Bearings are sealed and lubricated for life, lowering maintenance intervals and preventing unexpected downtime during long-running shifts, which is crucial for continuous processes and high-volume production lines. The motor is designed for continuous duty of 60 minutes, delivering reliable torque and consistent performance in demanding washdown environments, while the stainless frame supports aggressive washdown protocols and CIP/SIP cycles in hygienic facilities. Finally, its stock availability across multiple warehouses ensures rapid delivery to US, China, and other international sites, supporting just-in-time maintenance strategies and supply chain resilience.
Get a Quick Quote for a ABB 7BCESSWDM41906T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCESSWDM41906T?
Enquire Now
FAQs
Yes. The model is specified for 230 V or 460 V three-phase power at 60 Hz, enabling flexible installation in mixed electrical environments. It operates as a 2-pole motor with a direct-on-line starting method, and it uses a 256TC frame with a foot-mounted Base Type for straightforward integration into conveyors, pumps, or other standard equipment operating in cleanroom or washdown settings.
The motor carries NEMA Premium efficiency, CSA EEV, and UR certifications, with additional CSA listings. These certifications verify energy efficiency, electrical safety, and regulatory compliance, helping you meet industry standards for sanitation, safety, and environmental requirements in manufacturing facilities. Such certifications also support energy-use reporting and supplier qualification programs.
Absolutely. The CESSWDM41906T uses a 256TC frame and a foot-mounted, horizontal mounting arrangement (F1), which aligns with common installation footprints. Its 230/460 V three-phase supply and 60 Hz operation ease retrofits on existing lines, reducing downtime during upgrading or replacing older washdown motors and enabling quick, reliable commissioning.
The stainless steel frame and TEFC enclosure provide superior corrosion resistance and washdown durability, essential for sanitary environments. These features, combined with sealed bearings and life-long lubrication, minimize contamination risks and maintenance needs while maintaining consistent torque and speed in continuous-duty operation typical of CIP/SIP cycles and high-demand production lines.
The motor uses life-lubricated bearings and a stainless, sealed design to minimize routine maintenance and unscheduled downtime, promoting higher uptime and lower maintenance costs. Coupled with NEMA Premium efficiency, energy savings contribute to a faster ROI in facilities prioritizing energy management, compliance, and reliability on washdown lines with frequent cleaning cycles.
