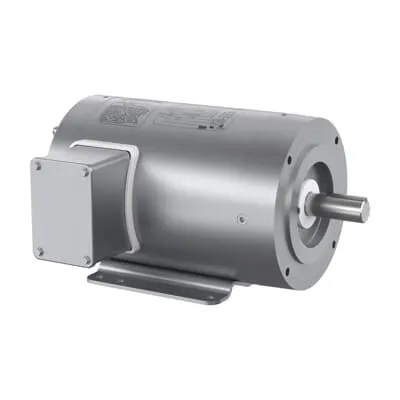

ABB CESSWDNM3555T-5 Washdown Motor - 575 V IE3 Premium
Part Number: 7BCESSWDNM3555T-5
Quick Summary
ABB washdown motor delivers 2 HP power for hygienic, wet environments in food, beverage, and pharma production lines. Customers struggle with corrosion, downtime, and compliance when selecting motors for washdown areas. This model meets CSA, UR, and NEMA Premium IE3 benchmarks for safety, energy efficiency, and compliance. Designed with a stainless steel washdown frame and C-face mounting, it simplifies installation and extends uptime in high-hygiene facilities. With 575 V three-phase operation and a 2 HP rating, it fits common manufacturing drives while helping reduce lifecycle costs. Manufacturers benefit from stocked availability at multiple warehouses and quick lead times. This makes planning easier for maintenance teams.
Product Information
Extended Description
7BCESSWDNM3555T-5 ABB: Washdown Motor 2 Hp 575 V (CESSWDNM3555T-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,3475RPM,3PH,60HZ,145TC,3546M,TE
Ambient Temperature
40 °C
Bearing
6205, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CESSWDNM3555T-5
Certification Agency
CSA | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
C-Face
Efficiency Level
IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TENV
Frame Material
Stainless_Steel
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
CESSWDNM3555T-5
Gross Weight
61 lb
Insulation Class
H
Invoice Description
2HP,3475RPM,3PH,60HZ,145TC,3546M,TENV,F1
Made To Order
No
Medium Description
Stainless Washdown, 2 HP, 3600 RPM, Frame Size 143Tc, C-Face Mounting, 3 Phase, 575 V, 60 Hz (CESSWDNM3555T-5)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
143TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
89 %
Product Name
Stainless Washdown
Product Net Depth / Length
0 in
Product Net Height
0 in
Product Net Weight
61 lb
Product Net Width
0 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
1.9 A
Rated Efficiency
88.50 %
Rated Speed
3475 r/min
Replaced Product ID (OLD)
7B35WW513L842G1
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Short Description
2 HP, 3600 RPM, Frame Size 143Tc, C-Face, 3 PH, 575 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
Voltage Rating
575 V
Stainless steel construction combined with a TE N V enclosure protects the windings from washdown spray and cleaning chemicals, while the 143TC frame and C-face drive end flange simplify alignment with existing equipment. This reduces maintenance intervals and extends motor life, particularly in meat, dairy, and beverage lines where sanitation is non-negotiable. IE3 premium efficiency delivers measurable energy savings on long-running conveyors and CIP cycles. With an efficiency rating of 88.50% and a rated current of 1.9 A, operators can lower running costs without compromising torque, enabling cost-per-ton reductions in continuous-process applications. Mounting flexibility and standardization support fast installs; the 143TC frame, 575 V, 3-phase supply, direct-on-line starting, and 60 Hz operation align with common industrial drives, reducing integration risk and spare parts needs. Built for compliance, the motor carries CSA, UR, and NEMA Premium certifications, plus insulation class H and ambient tolerance up to 40 °C, helping meet regulatory requirements in regulated industries and supporting safe, long life operations. Ready for rapid fulfillment, the model ships from stocked warehouses with immediate availability and a minimal lead time. Lead time is 0 days and stock is maintained at multiple warehouses worldwide, enabling rapid fulfillment for production lines. Technical performance reserves include a service factor of 1.15 and a two-pole design that ensure reliable torque at 3475 rpm, supporting continuous-duty loads and high starting torque demands.
Get a Quick Quote for a ABB 7BCESSWDNM3555T-5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCESSWDNM3555T-5?
Enquire Now
FAQs
This motor features a C-face drive end flange and a foot-mounted base on a 143TC frame, designed for straightforward integration with standard 575 V, 3‑phase drives. Direct-on-Line start capability and 60 Hz operation simplify replacement in existing lines, while the 0.88 in shaft diameter matches common couplings and belts. Confirm ambient conditions are within 40 °C and that upstream controls support the motor’s 1.9 A current rating.
The CESSWDNM3555T-5 delivers 2 HP continuous output with a rated speed of about 3475 r/min, at 575 V and 60 Hz. It offers IE3 premium efficiency (88.50%), a service factor of 1.15, and a rated current of 1.9 A. Insulation class is H, suitable for demanding washdown environments, with a synchronous speed of 3600 r/min.
Yes. The motor uses a stainless steel frame and a TE N V enclosure designed for washdown and sanitation in food and beverage and pharmaceutical settings. Ambient temperature rating is 40 °C, and the design supports continuous operation under typical CIP and cleaning cycles, helping minimize corrosion risk and extending service life in sanitary facilities.
The CESSWDNM3555T-5 carries CSA, UR, and NEMA Premium certification, indicating compliance with safety, reliability, and energy-efficiency standards. Additional design credentials include NEMA designation and insulation rated to H, supporting regulatory acceptance and long-term performance in regulated industries.
Lead time is listed as 0 days, with stock maintained across multiple warehouses, enabling rapid fulfillment and minimized downtime. Warranty terms specify that warranty returns must be processed per policy, reinforcing support for field service and maintenance. For procurement, the model is readily available from stocked channels to speed repairs and replacements.
