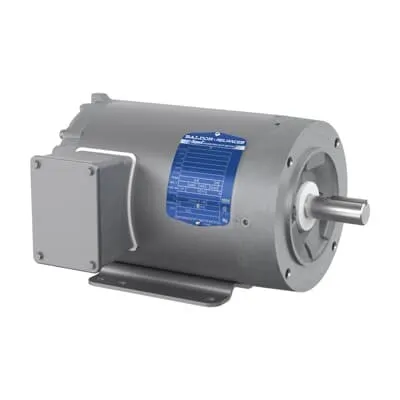

ABB 7BCESWDM3554T Washdown Motor - IE3 Premium
Part Number: 7BCESWDM3554T
Quick Summary
ABB washdown motor 7BCESWDM3554T delivers 1.5 HP power for food processing, packaging, and other sanitary applications. In washdown environments, corrosion, frequent cleaning, and downtime threaten productivity; this unit’s stainless steel frame and sealed bearings resist harsh cleaning and maintain reliable operation. With a robust TENV enclosure and 145TC frame, it meets demanding industrial standards while preserving serviceability. Rated for 230/460 V, 3-phase at 60 Hz, it integrates smoothly with existing lines and VFDs. Premium efficiency and recognized approvals support energy savings and regulatory compliance. For operations prioritizing cleanability, uptime, and total cost of ownership, this motor offers a strong balance of reliability and value.
Product Information
Extended Description
7BCESWDM3554T ABB: Washdown Motor 1.5 Hp 230 V (CESWDM3554T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,1770RPM,3PH,60HZ,145TC,3530M,
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CESWDM3554T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
35LYSS621: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TENV
Frame Material
Stainless Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
CESWDM3554T
Gross Volume
3496.049 inÂł
Gross Weight
50 lb
Horsepower Rating UL/CSA
1.500 Hp
IC Class
TENV
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
H
Invoice Description
1.5HP,1770RPM,3PH,60HZ,145TC,3530M,TENV
Lubrication
For life
Made To Order
No
Medium Description
Paint-Free Washdown, 1.5 HP, 1800 RPM, Frame Size 145Tc, C-Face Mounting, 3 Phase, TENV Enclosure, 230/460 V, 60 Hz (CESWDM3554T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1.5 Hp
Power Factor
72 %
Product Name
Paint-Free Washdown
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
50 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
4.6 A | 2.3 A
Rated Efficiency
86.50 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
1.5 HP, 1800 RPM, Frame Size 145Tc, C-Face, 3 PH, TENV, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
M
Voltage Rating
230 V | 460 V
Paint-free, washdown-ready stainless steel frame reduces corrosion risk and makes sanitation easier, extending motor life and reducing downtime in hygienic lines. This feature translates to lower maintenance costs and predictable performance in dairy, meat, and beverage applications where frequent cleaning is mandatory. C-face mounting and a 145TC frame simplify retrofits and align with common conveyors, minimizing installation time and reducing modification costs on existing lines. The 230/460 V dual-voltage, 3-phase operation at 60 Hz provides flexible integration with standard plant power and VFDs, supporting energy-efficient drive solutions and smooth startup. IE3 Premium efficiency and NEMA B design yield measurable energy savings and consistent torque under load, improving line throughput. Insulation class H and a TENV enclosure deliver robust protection in high-temperature washdown environments, promoting long service life. Sealed bearings (6205) and a 0.88 in shaft diameter offer reliable life in continuous duty, while a 1.15 service factor provides a healthy margin against overloads. Direct On Line starting and a paint-free, corrosion-resistant exterior minimize maintenance cycles and support uptime guarantees, with stock availability across major warehouses to shorten lead times.
Get a Quick Quote for a ABB 7BCESWDM3554T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCESWDM3554T?
Enquire Now
FAQs
This motor uses a 145TC frame with C-face mounting which aligns with common conveyor spec sheets and drive trains. It supports 230/460 V, 3‑phase, 60 Hz operation and Direct On Line starting, making retrofits straightforward. You’ll minimize alignment work, reduce mounting adapters, and speed up deployment when upgrading to a washdown-ready solution.
Expect 1.5 HP output at 1770 r/min with a 1.15 service factor, 3-phase operation, and dual voltage 230/460 V. This aligns with clean-in-place environments and standard automation routines. The motor uses premium IE3 efficiency, H-class insulation, and a TENV enclosure, delivering reliable torque and energy savings under varying load conditions.
Yes. The paint-free stainless steel frame and washdown-ready construction resist repeated sanitization and corrosion. The enclosure type is TENV, bearings are sealed, and the unit is designed for hygienic environments. With 60 Hz operation and 230/460 V, it integrates into typical clean-lines manufacturing setups and complies with industry standards.
The motor carries CSA and UR recognized approvals and aligns with NEMA design standards (B). It also features IE3 premium efficiency and a high-temperature insulation class H, supporting regulatory compliance and energy-performance requirements in industrial facilities.
A life-long lubrication approach, sealed bearings, and a stainless steel frame reduce maintenance frequency and sanitation downtime. The 0 day lead time stock availability, 230/460 V versatility, and robust construction collectively lower total cost of ownership by shortening downtime, extending service intervals, and delivering reliable performance in continuous-duty washdown environments.
