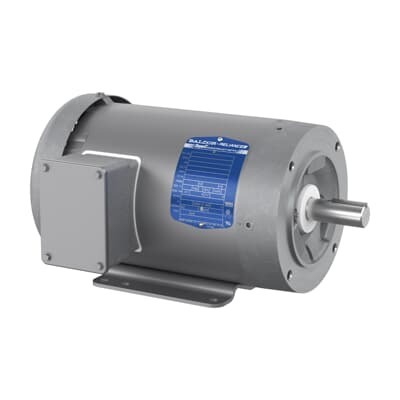

ABB 7BCESWDM3558T Washdown Motor 2 HP - CSA/CSA EEV/UR
Part Number: 7BCESWDM3558T
Quick Summary
ABB 7BCESWDM3558T washdown motor delivers reliable 2 HP performance for hygienic production lines in food & beverage and pharmaceutical applications. The design addresses common maintenance pain points, such as corrosion exposure and frequent washdowns, with a paint-free finish and life-long lubrication. Built for hard-won reliability, it features TEFC enclosure, stainless steel frame, and a robust 3-phase, 60 Hz, 230/460 V power drive. Certifications including CSA, CSA EEV, and UR support regulatory compliance across North America. The motor’s efficiency and durable construction translate into lower operating costs and quieter, smoother operation for continuous process lines. These factors combine to improve uptime, reduce total cost of ownership, and simplify procurement for multi-line facilities.
Product Information
Extended Description
7BCESWDM3558T ABB: Washdown Motor 2 Hp 230 V (CESWDM3558T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,1760RPM,3PH,60HZ,145TC,3528M,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CESWDM3558T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
35LYSS628: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Stainless Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
CESWDM3558T
Gross Volume
3496.049 in³
Gross Weight
56 lb
Horsepower Rating UL/CSA
2.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
2HP,1760RPM,3PH,60HZ,145TC,3528M,TEFC,F1
Lubrication
For life
Made To Order
No
Medium Description
Paint-Free Washdown, 2 HP, 1800 RPM, Frame Size 145Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CESWDM3558T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
76 %
Product Name
Paint-Free Washdown
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
56 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
5.6 A | 2.8 A
Rated Efficiency
88.50 %
Rated Speed
1755 r/min
Replaced Product ID (OLD)
7B35SS628G073G1
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
2 HP, 1800 RPM, Frame Size 145Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
M
Voltage Rating
230 V | 460 V
Paint-Free Washdown design reduces corrosion risk and eases cleaning, delivering longer service life in high-humidity environments. Feature → Business Impact → Application: Hygienic surfaces support easy sanitation in food and beverage lines, reducing downtime and contamination risk. 2 HP output at 1760 RPM provides reliable torque for conveyors and pumps in packaging lines. Application: line-starts and constant-speed drives with predictable load profiles. TEFC enclosure plus stainless steel frame offer rugged protection in washdown zones, enabling installation in wet environments without enclosure upgrades. Application: meat processing and pharma equipment where frequent cleaning is required. Premium efficiency (NEMA 12-12) reduces energy bills and heat generation, improving overall system efficiency in continuous operation. Application: processing stations that run multiple shifts, where cooling and energy costs matter. 145TC frame and C-face/mounting options simplify retrofits and new installations, minimizing downtime during mechanical changes. Application: equipment upgrades on existing lines seeking standardization. Sealed bearings (6205) and life-long lubrication minimize maintenance windows, reducing unscheduled downtime. Application: vertical pistons, pumps, or fans in environments with particulate exposure. 230/460 V 3-phase compatibility and 60 Hz operation support global manufacturing footprints, streamlining electrical design and spare parts planning. Application: multinational assembly plants needing consistent motor specs across sites.
Get a Quick Quote for a ABB 7BCESWDM3558T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCESWDM3558T?
Enquire Now
FAQs
This motor features a TEFC enclosure, stainless steel frame, and C-face mounting with 145TC frame size, designed for easy installation in wet, corrosive environments. It supports foot-mounted configurations and life-long lubrication, reducing maintenance downtime during installation and service in food, beverage, and pharmaceutical lines.
Yes. The motor is specified for 230/460 V with 60 Hz operation in a 3-phase configuration. It delivers 2 HP with a rated speed around 1755 r/min and a service factor of 1.15, making it suitable for continuous-duty drives across multiple plants.
The motor carries CSA, CSA EEV, and UR certifications, aligning with North American electrical safety and energy standards. It also uses a NEMA design B with a TEFC enclosure, reinforcing its suitability for regulated industrial environments.
Lubrication is rated as life-long, and bearings are sealed (6205) to minimize routine maintenance. The paint-free finish plus stainless steel frame enhances cleanability and corrosion resistance, supporting longer service intervals in sanitize-heavy processes.
Ideal for continuous-duty conveyors, pumps, and mixers in food and beverage, packaging, and pharma lines. Its 145TC frame, C-face mounting, and 3-phase 60 Hz compatibility streamline retrofits and new installs, reducing wiring and mounting complexity while delivering reliable 2 HP performance.
