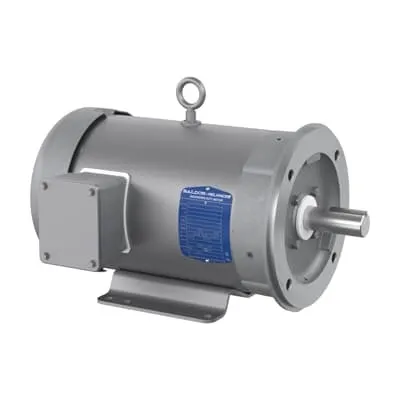

ABB 7BCESWDM3611T Motor - TEFC, 60 Hz, 182TC 3HP
Part Number: 7BCESWDM3611T
Quick Summary
ABB 7BCESWDM3611T washdown motor delivers reliable, sanitary motion control for food processing and packaging lines. In demanding washdown environments, standard motors struggle with corrosion, moisture, and downtime; this design resists water, chemicals, and frequent cleaning. Certified for CSA, CSA EEV, UR and NEMA Premium efficiency, it meets stringent safety and performance standards while maintaining energy savings. With a TEFC enclosure, 182TC frame, and 60 Hz operation, it integrates smoothly with existing ABB Baldor-Reliance components and common 230/460V supply, delivering long-term reliability and cost-effective maintenance for high-throughput facilities.
Product Information
Extended Description
7BCESWDM3611T ABB: Washdown Motor 3 Hp 230 V (CESWDM3611T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,1760RPM,3PH,60HZ,182TC,3632M,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6206, Ball
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
CESWDM3611T
Certification Agency
CSA | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
36LYK196: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Stainless_Steel
Frame Size
182
Frequency (f)
60 Hz
Global Commercial Alias
CESWDM3611T
Gross Volume
5274.135 in³
Gross Weight
79 lb
Horsepower Rating UL/CSA
3.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
3HP,1760RPM,3PH,60HZ,182TC,3632M,TEFC,F1
Lubrication
For life
Made To Order
No
Medium Description
Paint-Free Washdown, 3 HP, 1800 RPM, Frame Size 182Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CESWDM3611T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
182TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
78 %
Product Name
Paint-Free Washdown
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
79 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
8 A | 4 A
Rated Efficiency
89.50 %
Rated Speed
1760 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.13 in
Short Description
3 HP, 1800 RPM, Frame Size 182Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
K
Voltage Rating
230 V | 460 V
This washdown motor features a paint-free stainless steel frame and TEFC enclosure, delivering superior corrosion resistance and cleanability in sanitary environments. Feature → Business Impact → Application: Sanitary design reduces contamination risk and simplifies CIP/SIP cleaning, enabling use in food and beverage lines and pharmaceutical packaging. Feature → Business Impact → Application: The 182TC frame with C-Face mounting allows straightforward retrofits and compatibility with standard Automation components, minimizing installation time and downtime on existing conveyors. Feature → Business Impact → Application: Premium efficiency (NEMA Premium) and a 89.5% rated efficiency improve energy costs over the motor’s life, supporting sustainability goals for continuous production facilities. Feature → Business Impact → Application: 1.15 service factor and 4-pole, 1760 r/min performance ensure protective margins under peak loads common in start-stop conveyor systems. Feature → Business Impact → Application: Lubrication labeled as For life and 6206 Ball bearings reduce maintenance cycles and extend mean time between failures, lowering total cost of ownership. Feature → Business Impact → Application: Direct-on-line starting simplifies electrical design and reduces soft-start requirements on line starts, improving line readiness in packaging and material handling. All components are designed for 230/460 V 3-phase supplies and horizontal mounting, facilitating seamless integration into existing control schemes and spare-part compatibility.
Get a Quick Quote for a ABB 7BCESWDM3611T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCESWDM3611T?
Enquire Now
FAQs
This motor uses horizontal, foot-mounted installation with a C-face drive end flange and an 182TC frame. It operates on 3-phase power at 60 Hz with a voltage rating of 230 V or 460 V, allowing seamless integration with standard plant power and common VFDs or soft starters in washdown lines.
The motor offers a service factor of 1.15 and a rated efficiency of 89.5% (Premium Efficiency). Higher efficiency reduces energy consumption under load, while the service factor provides headroom for temporary overloads, improving uptime and lowering life-cycle operating costs on conveyors and mixers.
Yes. The Paint-Free Washdown design, TEFC enclosure, and stainless-steel frame are purpose-built for sanitary environments. It withstands frequent cleaning, chemical exposure, and moisture typical of food, beverage, and pharmaceutical processing, maintaining performance with minimal corrosion risk.
The motor carries CSA, CSA EEV, and UR certifications and is listed as NEMA Premium for efficiency. These markings ensure compliance with safety and energy performance requirements across North American facilities, supporting regulatory and sustainability goals in regulated industries.
Lubrication is rated For life, reducing periodic maintenance. With a 1.15 service factor and 3 HP output, you gain uptime and capability for peak loads, while energy efficiency lowers operating costs. The 182TC frame and C-face mounting simplify retrofits and spare-parts planning, improving total cost of ownership.
