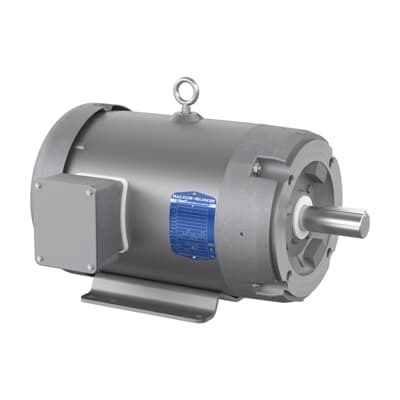

ABB CESWDM3714T Washdown Motor - IE3 Premium Efficiency
Part Number: 7BCESWDM3714T
Quick Summary
Washdown motor CESWDM3714T delivers reliable, sanitary drive solutions for wet environments in food and pharma. In many facilities, corrosion, downtime, and costly maintenance plague standard motors exposed to washdown cycles. This unit carries CSA, CSA EEV, and UR certifications to help meet regulatory requirements while delivering robust performance. With 60 Hz operation, 230/460 V compatibility, and a stainless steel frame, it also supports energy-conscious, long-term value for industrial facilities across manufacturing and packaging lines.
Product Information
Extended Description
7BCESWDM3714T ABB: Washdown Motor 10 Hp 230 V (CESWDM3714T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10HP,1770RPM,3PH,60HZ,215TC,3752M,T
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6307, Sealed Bearing
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CESWDM3714T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
A
Dimension Diagram
37LYH888: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Stainless Steel
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
CESWDM3714T
Gross Volume
7561.383 inÂł
Gross Weight
165 lb
Horsepower Rating UL/CSA
10.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
10HP,1770RPM,3PH,60HZ,215TC,3752M,TEFC,F
Lubrication
For life
Made To Order
No
Medium Description
Paint-Free Washdown, 10 HP, 1800 RPM, Frame Size 215Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CESWDM3714T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
10 Hp
Power Factor
85 %
Product Name
Paint-Free Washdown
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
165 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
25 A | 12.5 A
Rated Efficiency
91.70 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.38 in
Short Description
10 HP, 1800 RPM, Frame Size 215Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101115
Voltage Code
K
Voltage Rating
230 V | 460 V
Paint-Free Washdown design and stainless steel frame deliver corrosion resistance and hygienic cleanliness, reducing maintenance and downtime in food processing and pharmaceutical environments. TEFC enclosure and C-Face mounting simplify installation in wet areas, enabling quick alignment and rugged reliability on conveyors and pumps. The 10 HP motor with 1770 r/min speed, 230/460 V, 60 Hz input, and IE3 premium efficiency reduces energy costs while meeting modern regulatory targets for efficiency in light-to-medium industrial duty. A service factor of 1.15 provides a useful margin for startup surges and brief overloads common on load-starting equipment, improving uptime in continuous-operation processes. Lubrication is for life, lowering maintenance frequency, while the 1.38 in shaft diameter and 215TC frame support compatible couplings and gearbox interfaces. Overall, this motor is designed to minimize lifecycle costs while maximizing washdown performance, especially in high-hygiene industries with strict sanitation standards.
Get a Quick Quote for a ABB 7BCESWDM3714T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCESWDM3714T?
Enquire Now
FAQs
For installation in washdown zones, utilize the TEFC enclosure and stainless steel frame of the CESWDM3714T. Use the 215TC mounting footprint with C-face or foot-mounted configurations for flexible alignment. Ensure proper base leveling, secure mounting, and protection from excessive washdown spray near electrical connections. A direct-on-line starting approach is supported, simplifying start-up and reducing downtime.
The motor delivers 10 HP at 1770 rpm with 230/460 V and 60 Hz input. It features a 1.15 service factor and IE3 premium efficiency, which translates to lower energy consumption and steady performance under typical industrial loads. The 3-phase design and TEFC enclosure suit continuous duty in demanding environments, delivering reliable torque and consistent speed under load.
Yes. Designed for continuous operation in wet, hygienic settings, the CESWDM3714T uses a TEFC enclosure, stainless steel frame, and a 1.15 service factor to handle sustained loads and brief overloads. Its IP-rated design and ease of cleaning support reliable performance in food, beverage, and pharmaceutical lines where downtime must be minimized.
The CESWDM3714T carries CSA, CSA EEV, and UR certifications, signaling compliance with recognized safety and electrical standards in North America. These certifications help satisfy regulatory procurement requirements, supplier qualification, and quality assurance programs in regulated industries like food processing and pharmaceuticals.
The motor uses lubrication for life and a paint-free washdown design to resist corrosion, reducing maintenance intervals and replacement costs. Energy efficiency from IE3 reduces operating costs over time, while reliable TEFC sealing and stainless construction extend service life in harsh environments. Overall, this translates to lower total cost of ownership and quicker return on investment for sanitary production lines.
