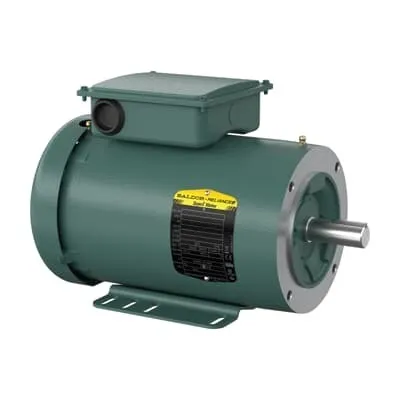

ABB 7BCEUHM3554T Unit Handling - CE/CSA TEFC
Part Number: 7BCEUHM3554T
Quick Summary
Unit Handling ABB 7BCEUHM3554T provides reliable, 1.5 HP drive for material handling in manufacturing environments. Manufacturing lines demand consistent startup torque and predictable energy use; this motor helps address variability and waste. Certified for CE, CSA, CSA EEV, UR, and WEEE, the unit meets global safety and environmental standards. Designed for TEFC enclosure and 60 Hz operation, it supports durable performance in harsh factory floors while offering straightforward installation. With 230/460 V dual voltage and a compact 145TCY frame, the motor fits a wide range of conveyors and handling equipment. Its 1.15 service factor and 86.5% efficiency translate into lower operating costs over the asset lifetime.
Product Information
Extended Description
7BCEUHM3554T ABB: Unit Handling 1.5 Hp 230 V (CEUHM3554T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,1770RPM,3PH,60HZ,145TCY,3524M
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEUHM3554T
Certification Agency
CE | CSA | CSA EEV | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
35LYX057: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
CEUHM3554T
Gross Volume
3496.049 inÂł
Gross Weight
45 lb
Horsepower Rating UL/CSA
1.500 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F3
Insulation Class
F
Invoice Description
1.5HP,1770RPM,3PH,60HZ,145TCY,3524M,TEFC
Lubrication
Regreasable
Made To Order
No
Medium Description
Unit Handling, 1.5 HP, 1800 RPM, Frame Size 145Tcy, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CEUHM3554T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145TCY
Mounting Orientation
Horizontal
Mounting Position
F3
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1.5 Hp
Power Factor
72 %
Product Name
Unit Handling
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
45 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
4.6 A | 2.3 A
Rated Efficiency
86.50 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
1.5 HP, 1800 RPM, Frame Size 145Tcy, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
L
Voltage Rating
230 V | 460 V
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
Feature: 1.5 HP, 1770 RPM, 60 Hz, 3-phase operation in a 145TCY frame with TEFC enclosure. Business Impact: Delivers strong starting torque and reliable performance, supporting premium efficiency and reduced energy waste. Application: Ideal for unit handling conveyors, sorters, and small-mechanized lines in manufacturing environments. Feature: Dual voltage 230/460 V reduces wiring complexity and spare-part needs. Business Impact: Simplifies installation and field upgrades across multiple lines, lowering commissioning time and inventory costs. Application: Multi-site facilities and automation cells where voltage flexibility matters. Feature: Foot-mounted, horizontal mounting (F3) with a C-face drive end flange. Business Impact: Eases retrofit and new-build integration by aligning with standard conveyor couplings and drives. Application: Belt and roller conveyors, packaging lines, and material-handling stations requiring straightforward alignment. Feature: Shaft diameter 0.88 in, frame size 145TCY, 4-pole design, direct-on-line starting. Business Impact: Improves mechanical coupling compatibility and startup reliability on continuous-duty lines. Application: High-volume packaging, sorting, and transfer applications. Feature: Efficiency and durability credentials—Insulation Class F, Service Factor 1.15, 86.5% efficiency. Business Impact: Lower operating costs, longer service life, and better performance under load. Application: Harsh factory floors and demanding automation cells requiring long-term reliability.
Get a Quick Quote for a ABB 7BCEUHM3554T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEUHM3554T?
Enquire Now
FAQs
The 7BCEUHM3554T is a 3-phase, 230/460 V TEFC motor with a foot-mounted base and horizontal mounting (F3). It aligns with standard 60 Hz drives and common control panels, enabling straightforward VFD integration and simple control wiring. Its 145TCY frame size ensures compatibility with typical conveyor couplings and adaptors used in material-handling lines.
Key specs include 1.5 HP output, 1770 rpm (4-pole), 60 Hz, 230/460 V dual voltage, 3-phase configuration, TEFC enclosure, and a 145TCY frame. It also features a 1.15 service factor and an efficiency rating around 86.5%, with insulation class F and NEMA B design, suitable for continuous duty in industrial environments.
Yes. With its 1.5 HP rating, 1770 rpm speed, robust TEFC enclosure, and 3-phase 60 Hz operation, the 7BCEUHM3554T is well-suited for unit handling conveyors, sorters, and transfer lines. Its DOL starting capability, combined with a compact 145TCY frame and 0.88 in shaft diameter, ensures reliable startup and durable performance in continuous-duty settings.
The motor carries CE, CSA, CSA EEV, UR, and WEEE certifications. These indicate compliance with international safety, electrical, and environmental standards, facilitating cross-border procurement, reducing regulatory risk, and supporting responsibility requirements for industrial equipment in regulated facilities.
Warranty terms state that the product under warranty must be returned if defects arise. This policy supports early fault detection and replacement processes, helping maintenance teams minimize downtime. For procurement, confirm regional warranty details and return procedures with the supplier to align with project timelines.
