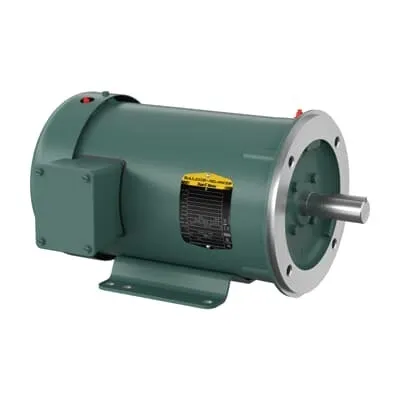

ABB 7BCEUHM3611T Unit Handling - TEFC CE/CSA/UR
Part Number: 7BCEUHM3611T
Quick Summary
Unit Handling ABB 7BCEUHM3611T is a 3 HP drive for reliable material handling in industrial conveyors. Operators face downtime and wear in demanding environments, and this motor addresses those challenges with a rugged TEFC enclosure and regreasable bearings for extended life. It carries CE, CSA, and UR certifications with WEEE compliance, aligning with safety and environmental regulations across global facilities. Designed for 60 Hz operation at 230/460 V, it fits readily into existing panel budgets and wiring schemes. Built for straightforward installation and predictable performance, it supports improved uptime and lower total cost of ownership in continuous-duty line applications.
Product Information
Extended Description
7BCEUHM3611T ABB: Unit Handling 3 Hp 230 V (CEUHM3611T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,1760RPM,3PH,60HZ,182TC,3632M,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6206, Ball
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEUHM3611T
Certification Agency
CE | CSA | CSA EEV | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
36LYA002: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
182
Frequency (f)
60 Hz
Global Commercial Alias
CEUHM3611T
Gross Volume
5274.135 in³
Gross Weight
73 lb
Horsepower Rating UL/CSA
3.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
3HP,1760RPM,3PH,60HZ,182TC,3632M,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
Unit Handling, 3 HP, 1800 RPM, Frame Size 182Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CEUHM3611T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
182TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
75 %
Product Name
Unit Handling
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
73 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
8.4 A | 4.2 A
Rated Efficiency
89.50 %
Rated Speed
1760 r/min
Replaced Product ID (OLD)
7B36A002S266G2
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.13 in
Short Description
3 HP, 1800 RPM, Frame Size 182Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
K
Voltage Rating
230 V | 460 V
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
Frame and enclosure: The 182TC frame with a TEFC enclosure provides rugged protection in dusty industrial environments, reducing ingress and maintenance. Business impact: longer service intervals and lower repair costs. Application: conveyors, mixers, and processing lines where contamination is a concern. Efficiency and performance: With an IE3 premium efficiency level and an 89.5% rated efficiency, energy savings accumulate across large installations. Business impact: lower energy bills and reduced heat load, improving reliability in tight electrical spaces. Application: high-duty cycle conveyors and packaging lines. Mechanical compatibility: 3-phase, 4-pole, 1760 rpm, 182TC frame, foot-mounted with C-Face drive end flange and horizontal mounting options for versatile installations. Business impact: faster retrofits and simpler stock management. Application: upgrades to existing lines or new equipment in heavy manufacturing. Operational robustness: Direct On Line starting, service factor 1.15, shaft diameter 1.13 in, and regreasable lubrication support long service life with minimal maintenance. Business impact: higher uptime and reduced maintenance costs. Application: continuous-duty equipment like mixers, presses, and material-handling systems. Stocking and compliance: Available from multiple warehouses with 0 day lead time and full CE/CSA/UR/WEEE compliance. Business impact: rapid deployment and multi-site standardization. Application: global plants seeking consistent, regulator-ready drive solutions.
Get a Quick Quote for a ABB 7BCEUHM3611T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEUHM3611T?
Enquire Now
FAQs
This unit uses a 182TC frame with TEFC enclosure and 3-phase 230/460 V at 60 Hz, plus a C-Face drive end flange for straightforward mounting. It supports direct-on-line starting and horizontal or foot-mounted configurations, making retrofits and new installations quick and predictable while preserving existing wiring schemes.
Install with a horizontal, foot-mounted orientation in a clean, ventilated area. Use the C-Face drive end flange for a secure drive alignment and confirm shaft alignment tolerance with a 1.13 in shaft diameter. Favor regular greasing due to regreasable lubrication and ensure 230/460 V, 60 Hz supply stability for reliable operation.
The motor delivers 3 HP at 1760 rpm with IE3 premium efficiency at 89.5%, reducing energy costs in continuous-duty lines. Service factor is 1.15, and rated current is 8.4 A / 4.2 A, enabling smaller line conductors and cooler operation. Direct-on-line starting minimizes electronics and startup energy demands, improving overall plant reliability.
The unit is certified CE, CSA, CSA EEV, UR, and WEEE, covering safety, electrical compatibility, and environmental disposal requirements. This helps you meet regulatory approvals across regions, accelerates audits, and reduces risk when deploying in multi-site manufacturing or processing facilities.
Lead time is listed as 0 days, with stock in multiple warehouses (including US and international locations). This enables rapid deployment, minimizes project delays, and supports centralized or regional procurement strategies for global operations.
