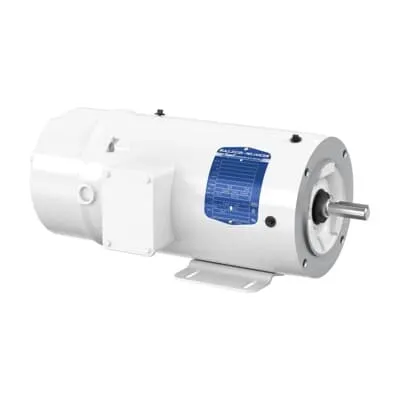

ABB CEWDBM3538 Washdown Motor - 0.5HP, 208-230/460V
Part Number: 7BCEWDBM3538
Quick Summary
Washdown motor capability from ABB CEWDBM3538 delivers reliable, sanitary performance for food, beverage, and pharmaceutical equipment. Operators often confront corrosion, frequent cleaning cycles, and downtime in washdown environments, making durability and quick maintenance essential. This design carries CE marking and CSA/UR listings, aligning with global standards while offering a robust NEMA design B and F insulation for demanding applications. With a 56C frame, C-face mounting, and true 3-phase, 60 Hz operation, it integrates smoothly into existing lines and gear assemblies, helping you reduce downtime and installation costs while improving overall line efficiency.
Product Information
Extended Description
7BCEWDBM3538 ABB: Washdown Motor 0.5 Hp 208 V (CEWDBM3538)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.5HP,1775RPM,3PH,60HZ,56C,3514M,TEN
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205, Sealed Bearing
Bearing NDE
6203
Brake Present
Yes
Brand / Label
Baldor-Reliance
Catalog Number
CEWDBM3538
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
B
Dimension Diagram
35LYL652: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | Not Regulated / Exempt | Undefined Efficiency
Electrical Data
Enclosure Type
TENV
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
CEWDBM3538
Gross Volume
3496.049 inÂł
Gross Weight
42 lb
Horsepower Rating UL/CSA
0.500 Hp
IC Class
TENV
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
.5HP,1775RPM,3PH,60HZ,56C,3514M,TENV,F1
Lubrication
For life
Made To Order
No
Medium Description
White Washdown, 0.5 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 3 Phase, TENV Enclosure, 208-230/460 V, 60 Hz (CEWDBM3538)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.5 Hp
Power Factor
62 %
Product Name
White Washdown
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
42 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
1.9 A | 1.8 A | 0.9 A
Rated Efficiency
78.20 %
Rated Speed
1770 r/min
Replaced Product ID (OLD)
7B35L652G069G2
Selling Unit of Measure
piece
Service Factor
1.25
Service Factor Percentage
1.25 %
Shaft Diameter
0.63 in
Short Description
0.5 HP, 1800 RPM, Frame Size 56C, C-Face, 3 PH, TENV, 208-230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
N
Voltage Rating
208 V | 230 V | 460 V
Feature: 56C frame size and 0.5 HP power rating for compact installations. Business Impact: Fits standard equipment footprints, lowering retrofit costs and simplifying spare parts planning. Application: Suitable for small conveyors and hygienic process equipment requiring reliable, space-efficient drive. Feature: Enclosure Type TENV with White Washdown finish. Business Impact: Provides protection in harsh washdown environments, improving uptime and extending motor life. Application: Food and beverage line conveyors, pharmaceutical packaging lines. Feature: C-Face mounting with foot mounting option and horizontal orientation. Business Impact: Flexible installation options and straightforward gearbox coupling, reducing installation time and alignment risks. Application: OEM equipment retrofits and new line builds. Feature: Electrical configuration 3-phase, 60 Hz, voltage 208/230/460 V. Business Impact: Broad grid compatibility and compatibility with standard VFDs and controls, enabling easier integration and lower wiring complexity. Application: Industrial conveyors, mixers, and processing pumps. Feature: Insulation Class F, NEMA Design B, and lubrication for life. Business Impact: Enhanced insulation and bearing reliability minimize maintenance cycles and extend service intervals. Application: Continuous duty in sanitary environments with high washdown exposure. Feature: Lubrication for life and sealed bearings (6205). Business Impact: Reduces maintenance needs and downtime, improving total cost of ownership. Application: Long-running drive systems in packaging and handling lines. Feature: Direct On Line starting and 3-phase operation. Business Impact: Simplifies control architecture and reduces startup components, lowering initial capital and ongoing energy management costs. Application: Simple, reliable start-ups on new or retrofit lines.
Get a Quick Quote for a ABB 7BCEWDBM3538
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEWDBM3538?
Enquire Now
FAQs
The CEWDBM3538 is a 3-phase motor configured for 208-230/460 V, 60 Hz operation with direct-on-line starting, simplifying integration with standard industrial controls and cabling. Its 56C frame and 0.5 HP rating make it a straightforward drop-in for many conveyors and processing equipment.
It features a TENV enclosure with a white washdown finish designed to resist washdown chemicals and moisture. This combination protects internal components, reduces corrosion risk, and supports sustained uptime in sanitary manufacturing areas such as food processing and pharma packaging.
The CE mark and CSA/UR listings provide regulatory compliance across regions, while the motor’s NEMA Design B, insulation class F, and 4-pole, single-speed design support reliable operation in continuous duty environments common to packaging and material handling.
Plan for a C-Face flange with optional foot mounting and horizontal orientation to match most gearboxes and drives. Shaft diameter is 0.63 in, and the unit is designed for easy mounting and alignment, reducing retrofit risk and shortening commissioning time.
The motor delivers 0.5 HP at around 1770 r/min with a rated efficiency of 78.20% and a power factor of 0.62. It draws approximately 1.9 A at nominal load, supports continuous duty, and offers lubrication-for-life bearings, contributing to lower maintenance costs and faster payback.
