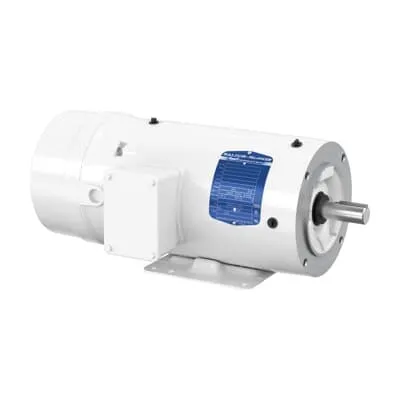

ABB CEWDBM3554T Washdown Motor - IE3 Premium Efficiency
Part Number: 7BCEWDBM3554T
Quick Summary
Washdown motor ABB CEWDBM3554T delivers rugged, washdown-ready power for food processing, pharma, and packaging lines. Maintenance teams struggle with corrosion, leaks, and downtime in harsh washdown environments. Certified IE3 Premium Efficiency, CSA | CSA EEV | UR listings ensure reliability and regulatory compliance across US and global facilities. This 3‑phase, 145TC frame motor supports easy installation with C‑Face mounting and offers robust 60 Hz performance at 230/460 V. In lean manufacturing settings, the combination of washdown design, sealed bearings, and life-long lubrication translates to lower maintenance costs, steadier throughput, and a stronger return on investment. Operators benefit from predictable performance and longer service intervals, enabling higher overall equipment effectiveness in industrial automation environments.
Product Information
Extended Description
7BCEWDBM3554T ABB: Washdown Motor 1.5 Hp 230 V (CEWDBM3554T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,1770RPM,3PH,60HZ,145TC,3530M,
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205, Sealed Bearing
Bearing NDE
6203
Brake Present
Yes
Brand / Label
Baldor-Reliance
Catalog Number
CEWDBM3554T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
35LYMM890: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TENV
Frame Material
Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
CEWDBM3554T
Gross Volume
3590.443 inÂł
Gross Weight
61 lb
Horsepower Rating UL/CSA
1.500 Hp
IC Class
TENV
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
H
Invoice Description
1.5HP,1770RPM,3PH,60HZ,145TC,3530M,TENV
Lubrication
For life
Made To Order
No
Medium Description
White Washdown, 1.5 HP, 1800 RPM, Frame Size 145Tc, C-Face Mounting, 3 Phase, TENV Enclosure, 230/460 V, 60 Hz (CEWDBM3554T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1.5 Hp
Power Factor
72 %
Product Name
White Washdown
Product Net Depth / Length
22.875 in
Product Net Height
12.813 in
Product Net Weight
61 lb
Product Net Width
12.25 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
4.6 A | 2.3 A
Rated Efficiency
86.50 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
1.5 HP, 1800 RPM, Frame Size 145Tc, C-Face, 3 PH, TENV, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
M
Voltage Rating
230 V | 460 V
Feature 1: 1.5 HP, 1770 rpm, 60 Hz, 230/460 V three‑phase operation with a 145TC frame. Business impact: delivers consistent torque and reliable startup, reducing process variation on conveyors, pumps, and fans in washdown lines. Application: ideal for food processing, beverage handling, and pharmaceutical packaging equipment where precise speed control matters. Feature 2: TENV enclosure and steel frame with sealed bearings. Business impact: provides washdown resilience against moisture and chemicals, extending service life and lowering maintenance frequency. Application: harsh cleaning cycles in dairy, meat, or sanitizer environments.Feature 3: Brake-present option with C‑Face mounting and horizontal F1 orientation. Business impact: improves safety and load control during start/stop sequences, enabling smoother automation with conveyors and packaging lines. Application: lines requiring controlled deceleration and secured loads.Feature 4: IE3 Premium Efficiency rating. Business impact: lowers energy consumption and heat, reducing operating costs in continuous‑run applications. Application: any continuous‑duty motor in high‑throughput packaging, conveying, or pumping systems.Feature 5: Certifications and global readiness (CSA | CSA EEV | UR). Business impact: supports regulatory compliance and easier vendor qualification for multinational facilities. Application: global rollouts in food, pharma, and consumer goods manufacturing.
Get a Quick Quote for a ABB 7BCEWDBM3554T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEWDBM3554T?
Enquire Now
FAQs
Plan for a horizontal base with C-Face mounting on a 145TC frame. Ensure the drive is supplied with 230/460 V, 60 Hz three-phase power and that shaft coupling accommodates a 0.88 in shaft diameter. Use sealed bearings and follow washdown cleaning procedures to protect the TENV enclosure.
It is a 3‑phase, 1.5 HP motor running at 1770 r/min with a 4‑pole design, supporting direct-on-line starting and 230/460 V at 60 Hz. The IE3 efficiency and 1.15 service factor help maintain stable line speed and reduce energy costs on conveyors and fill/seal equipment.
Yes. The motor uses a Washdown‑ready design with a TENV enclosure, steel frame, and sealed bearings, engineered to withstand frequent washdowns. It also carries CSA | CSA EEV | UR certifications, aiding regulatory compliance in food and pharmaceutical facilities.
The CEWDBM3554T includes IE3 Premium Efficiency and listings from CSA, CSA EEV, and UR. These certifications support regulatory compliance, energy efficiency programs, and safer operation in regulated industries.
Expect lower energy costs due to IE3 efficiency, reduced maintenance from life‑lub lubrication and sealed bearings, and fewer unscheduled downtimes thanks to robust washdown construction. Coupled with longer service intervals and reliable 60 Hz operation, the motor delivers faster payback in conveyors and packaging lines.
