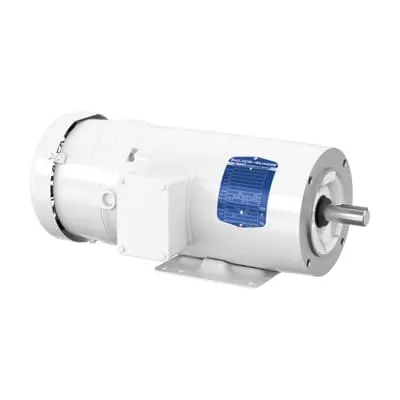

ABB 7BCEWDBM3558T Washdown Motor - TEFC
Part Number: 7BCEWDBM3558T
Quick Summary
Washdown Motor ABB 7BCEWDBM3558T delivers 2 HP torque for harsh washdown environments in food and beverage lines. Engineers often wrestle with moisture, dust, and aggressive cleaning cycles that accelerate wear and downtime; this motor helps reduce those pain points with a durable enclosure and sealed bearings. Key certifications and standards include CSA, CSA EEV, and UR compliance, aligning with NEMA design expectations for reliable industrial operation in sanitary settings. Designed for 3-phase power, it integrates with 230/460 V systems, 60 Hz, and features a C-face/foot-mounted configuration that simplifies retrofits and new installs alike, delivering dependable performance across conveyors, pumps, and fans.
Product Information
Extended Description
7BCEWDBM3558T ABB: Washdown Motor 2 Hp 230 V (CEWDBM3558T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,1760RPM,3PH,60HZ,145TC,3528M,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205, Sealed Bearing
Bearing NDE
6203
Brake Present
Yes
Brand / Label
Baldor-Reliance
Catalog Number
CEWDBM3558T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
35LYMM610: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
CEWDBM3558T
Gross Volume
3590.443 in³
Gross Weight
60 lb
Horsepower Rating UL/CSA
2.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
2HP,1760RPM,3PH,60HZ,145TC,3528M,TEFC,F1
Lubrication
For life
Made To Order
No
Medium Description
White Washdown, 2 HP, 1800 RPM, Frame Size 145Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CEWDBM3558T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
77 %
Product Name
White Washdown
Product Net Depth / Length
22.875 in
Product Net Height
12.813 in
Product Net Weight
60 lb
Product Net Width
12.25 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
5.6 A | 2.8 A
Rated Efficiency
86.50 %
Rated Speed
1760 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
2 HP, 1800 RPM, Frame Size 145Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
L
Voltage Rating
230 V | 460 V
Feature: TEFC enclosure and sealed bearings provide washdown-ready protection. Business Impact: minimizes corrosion risk and maintenance downtime in sanitary environments. Application: ideal for conveyors, mixers, and rinse-down pumps in food processing facilities. Feature: 2 HP, 1760 rpm, 60 Hz, 230/460 V three-phase design. Business Impact: standardizes electrical supply needs, reduces wiring variations, and enables consistent torque delivery. Application: suitable for belt-driven equipment and fans that require predictable startup and load response. Feature: Frame size 145TC, C-face mounting, and foot-mounted base. Business Impact: simplifies installation, alignment, and retrofit projects, lowering commissioning time. Application: easily drops into existing line setups or new installations with common mounting patterns. Feature: Brake present option. Business Impact: enables controlled stops and safety-critical sequencing on packaging and assembly lines. Application: conveyors and automation cells where precise stopping is required. Feature: Premium efficiency and solid service factor. Business Impact: lowers operating costs through improved energy use and headroom for load spikes, reducing wear and energy waste. Application: continuous-duty applications like conveyors and process equipment in production environments. Feature: 6205 sealed bearings, insulation class F, and TEFC enclosure. Business Impact: longer bearing life, better heat management, and resilience under elevated ambient temperatures. Application: harsh factory floors with frequent washdowns and ambient 40 °C conditions. Feature: Brake presence plus overall NEMA-aligned design. Business Impact: supports safe, compliant operation and easier integration with safety systems. Application: food and beverage lines requiring reliable stop/start performance and sanitary design.
Get a Quick Quote for a ABB 7BCEWDBM3558T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEWDBM3558T?
Enquire Now
FAQs
The ABB 7BCEWDBM3558T uses a C-face flange and foot-mounted base on a 145TC frame, designed for horizontal mounting and 3-phase operation at 230/460 V, 60 Hz. It fits standard industrial conveyors, pumps, and fans, and pairs with existing mounting patterns to simplify retrofit projects and new installations.
This motor is a 2 HP, 1760 r/min, 3-phase unit rated for 230/460 V at 60 Hz. Rated current is 5.6 A (full load) with an optional 2.8 A subset, offering a service factor of 1.15 and a rated efficiency of 86.5%. It uses a TEFC enclosure and insulation class F for reliable operation.
Yes, the model can be configured with a brake option. A brake enables controlled stops and safety-critical sequencing on lines such as packaging conveyors, where precise stop/start control improves product handling and operator safety.
The motor carries CSA, CSA EEV, and UR certifications, with NEMA-aligned design considerations. These certifications confirm electrical safety, performance reliability, and suitability for demanding industrial environments such as food processing and packaging lines, helping with regulatory compliance and supplier qualification.
Maintenance benefits include life-long lubrication and sealed bearings, reducing routine service and downtime. Its premium efficiency and robust construction drive energy savings and extended service life, translating to lower operating costs and faster return on investment for continuous-duty applications like conveyors and process equipment.
