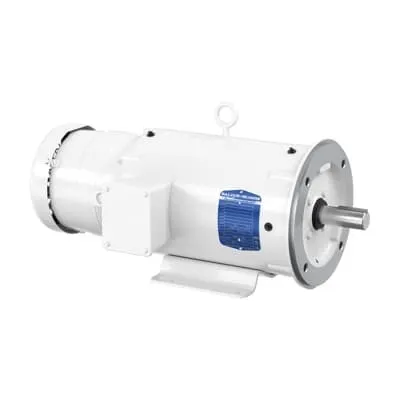

ABB CEWDBM3615T Washdown Motor - CSA/CSA EEV/UR
Part Number: 7BCEWDBM3615T
Quick Summary
Washdown motor delivers reliable power for washdown-ready equipment in food, beverage, and packaging lines. Moisture, washdowns, and frequent cleaning threaten uptime, corrosion resistance, and maintenance costs. This ABB 5 HP motor carries CSA, CSA EEV, and UR certifications and meets premium IE3 efficiency, helping you stay compliant and energy-efficient. With 3-phase operation at 60 Hz and dual voltage 230/460 V, it fits a broad range of OEM designs while offering straightforward installation. Designed for horizontal mounting (F1) with a C-face drive end and foot mounting, it simplifies retrofits and spare-parts planning across multi-line environments.
Product Information
Extended Description
7BCEWDBM3615T ABB: Washdown Motor 5 Hp 230 V (CEWDBM3615T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1750RPM,3PH,60HZ,184TC,3642M,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6206, Sealed Bearing
Bearing NDE
6205
Brake Present
Yes
Brand / Label
Baldor-Reliance
Catalog Number
CEWDBM3615T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
36LYG566: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
CEWDBM3615T
Gross Volume
7192.91 inÂł
Gross Weight
110 lb
Horsepower Rating UL/CSA
5.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
5HP,1750RPM,3PH,60HZ,184TC,3642M,TEFC,F1
Lubrication
For life
Made To Order
No
Medium Description
White Washdown, 5 HP, 1800 RPM, Frame Size 184Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CEWDBM3615T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
78 %
Product Name
White Washdown
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
110 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
13.4 A | 6.7 A
Rated Efficiency
89.50 %
Rated Speed
1750 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.13 in
Short Description
5 HP, 1800 RPM, Frame Size 184Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
J
Voltage Rating
230 V | 460 V
TEFC enclosure and washdown-ready design protect against moisture, cleaning agents, and particulate ingress, reducing corrosion risk and maintenance downtime in sanitary environments. This translates to longer motor life and more reliable operation on critical production lines. Suitable for OEMs in food processing, beverage packaging, and pharmaceutical equipment, it supports consistent performance even after repeated cleaning cycles. With 5 HP output at 60 Hz and dual voltage of 230/460 V, the motor delivers dependable torque for conveyors, pumps, and mixers while maintaining a compact 184TC footprint. The 4-pole design enables a running speed of 1750 r/min, aligning with common line speeds and drive trains. IE3 premium efficiency, combined with a service factor of 1.15, reduces energy consumption and provides a safety margin for occasional overloads. Horizontal mounting (F1) with both foot mounting and a C-face drive end flange supports easy retrofit and quick replacements, minimizing downtime during upgrades. Sealed bearings (6206) with life-long lubrication and the secondary bearing (6205 NDE) ensure longevity in harsh washdown environments, lowering maintenance costs over the motor’s life. Certifications CSA, CSA EEV, and UR provide regulatory confidence for North American facilities and multinational operations, while stock availability across warehouses enables rapid procurement for urgent projects.
Get a Quick Quote for a ABB 7BCEWDBM3615T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEWDBM3615T?
Enquire Now
FAQs
The motor supports horizontal mounting (F1) with a foot-mounted base and a drive-end C-face flange, enabling flexible coupling to existing equipment. Its 184TC frame, 1.13 in shaft diameter, and TEFC enclosure simplify retrofits and align with common industrial drives. It operates on 230 V or 460 V and runs on 60 Hz three-phase power, making it a versatile fit for conveyors, pumps, and mixers.
This is a 5 HP, 3‑phase motor rated for 60 Hz operation with dual voltage 230 V / 460 V. It features a 4-pole design yielding a nominal running speed of 1750 r/min (synchronous 1800 r/min), service factor 1.15, insulation class F, and IE3 premium efficiency. Bearing configuration includes sealed 6206 and 6205 NDE, suitable for continuous-duty washdown environments.
Yes. The CEWDBM3615T carries CSA, CSA EEV, and UR certifications, aligning with North American regulatory requirements. It also adheres to NEMA design B, 3‑phase, and 60 Hz labeling. These certifications support safe integration into regulated facilities and simplify supplier qualification for OEMs and contractors.
Its White Washdown designation signals suitability for sanitary applications, complemented by a TEFC enclosure that protects against moisture and cleaning agents. Sealed bearings and life-long lubrication reduce maintenance, while the 60 Hz, 230/460 V, and 184TC frame offer compatibility with standard washdown conveyors and processing equipment in food, beverage, and pharmaceutical settings.
Premium IE3 efficiency lowers operating energy costs in continuous-duty use, while a service factor of 1.15 provides overload safety without sacrificing reliability. Sealed bearings and lifetime lubrication minimize routine maintenance. Plus, multi-warehouse stocking and 0 day lead time help accelerate procurement and reduce downtime during plant upgrades or line replacements.
