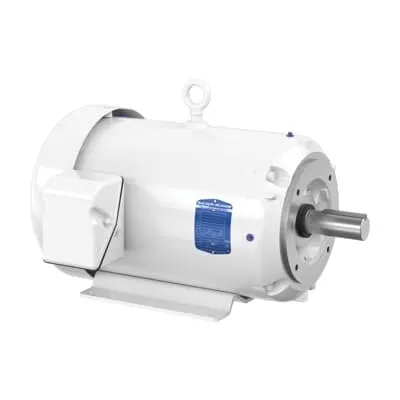

ABB 7BCEWDM23932T Washdown Motor - 10HP TEFC CSA CSA EEV UR
Part Number: 7BCEWDM23932T
Quick Summary
The ABB 7BCEWDM23932T Washdown Motor delivers 10 HP power for washdown environments in food, beverage, and pharma equipment. When frequent cleaning and high-pressure spray threaten seals and uptime, this motor helps reduce unplanned downtime. Certified for CSA, CSA EEV, and UR with IE3 efficiency, it meets modern reliability and energy standards. With dual voltage options and a rugged TEFC enclosure, it simplifies installation and long-term operating cost. This 256TC frame fits common motor bases and supports straightforward retrofits on conveyors, pumps, and industrial mixers. Its life-lubrication bearings, 1.63 inch shaft, and 1180 r/min rated speed align with typical line speeds for optimized performance. Designed for continuous duty in environments up to 40 °C and up to 1000 m altitude, it maintains stable torque.
Product Information
Extended Description
7BCEWDM23932T ABB: Washdown Motor 10 Hp 230 V (CEWDM23932T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10HP,1180RPM,3PH,60HZ,256TC,3956M,T
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6309 | Ball
Bearing NDE
6208 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEWDM23932T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
A
Dimension Diagram
39LYR098: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
256
Frequency (f)
60 Hz
Global Commercial Alias
CEWDM23932T
Gross Volume
14448.906 inÂł
Gross Weight
131.088 kg
Horsepower Rating UL/CSA
10.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
10HP,1180RPM,3PH,60HZ,256TC,3956M,TEFC,F
Lubrication
For life
Made To Order
No
Medium Description
White Washdown, 10 HP, 1200 RPM, Frame Size 256Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CEWDM23932T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
256TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
10 Hp
Power Factor
68 %
Product Name
White Washdown
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
131.088 kg
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
30.2 A | 15.1 A
Rated Efficiency
91 %
Rated Speed
1180 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.63 in
Short Description
10 HP, 1200 RPM, Frame Size 256Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101115
Voltage Code
K
Voltage Rating
230 V | 460 V
Feature: Dual voltage 230/460 V with 60 Hz operation provides installation flexibility across regional electrical standards. Business Impact: Reduces spare-part and inventory burden while enabling quick deployment on diverse lines. Application: Ideal for conveyors, pumps, and mixers in facilities that operate at different voltages. Feature: IE3 efficiency rating delivers energy savings during high-use operation. Business Impact: Lowers operating costs and supports regulatory energy compliance. Application: Food and beverage packaging lines with long production runs. Feature: TEFC washdown enclosure and white washdown designation resist water ingress and corrosion in hygienic environments. Business Impact: Extends service life, lowers maintenance cycles, and improves sanitation compliance. Application: Sanitary processing equipment and rinse-down stations in dairy, meat, and pharmaceutical plants. Feature: Life-lubrication bearings (6309 Ball, 6208 Ball NDE) reduce maintenance needs. Business Impact: Minimizes unscheduled downtime and service interventions. Application: High-duty conveyors and continuous-process equipment. Feature: Foot-mounted base with C-face drive end flange and 256TC frame enables straightforward retrofits. Business Impact: Simplifies alignment, mounting, and integration with existing machines. Application: Pumps, fans, and packaging line motors. Feature: Direct On Line starting and 3-phase operation simplify drive integration and control schemes. Business Impact: Reduces control hardware requirements and startup complexity. Application: Line-start motors on packaging and material handling systems.
Get a Quick Quote for a ABB 7BCEWDM23932T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEWDM23932T?
Enquire Now
FAQs
ABB 7BCEWDM23932T supports foot mounted bases with a C-face drive end flange (F1 mounting). This enables easy alignment with standard conveyors and equipment. The 256TC frame is compatible with common motor bases, allowing straightforward retrofits or new installations in tight spaces.
Yes. The motor is specified for dual voltage operation at 230 V or 460 V with 60 Hz frequencies, enabling installation across regional power networks without changing the drive hardware. This flexibility simplifies procurement and reduces stocking needs for multi-site deployments.
The motor carries CSA, CSA EEV, and UR markings, indicating compliance with recognized electrical safety standards and reliability benchmarks. These certifications support regulatory acceptance in North America and align with customer requirements for safe, audit-ready equipment in critical processing environments.
The 7BCEWDM23932T features IE3 premium efficiency and direct-on-line starting. This combination reduces electricity consumption during long production runs and minimizes drive-train complexity, making it well suited for continuous-duty conveyors, pumps, and mixers in high-demand lines.
Lubrication is listed as life-lubricated, reducing routine maintenance needs. Warranty terms indicate coverage for product reliability, with a return policy if a warranty issue arises. For best results, maintain seals and cleanliness during washdowns to preserve performance and longevity.
