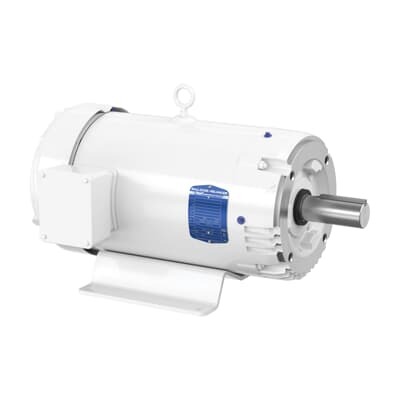

ABB 7BCEWDM2395T Washdown Motor - IP55 TEFC F1
Part Number: 7BCEWDM23994T
Quick Summary
Washdown Motor from ABB 7BCEWDM2395T provides reliable, corrosion-resistant drive for washdown applications in food processing and packaging. In wet environments, uptime is often compromised by moisture ingress and frequent cleaning cycles; this motor’s TEFC enclosure and IP55 protection help withstand that harsh routine. It is certified with CSA, CSA EEV and UR approvals and features Premium Efficiency (NEMA 12-12), reinforcing compliance and energy savings. The unit is a 3-phase, 60 Hz motor rated at 230/460 V with a 286TC frame and C-face mounting, designed for straightforward integration with common bases and drives. For operators, this translates to longer service intervals, lower operating costs, and reliable performance across demanding production lines.
Product Information
Extended Description
7BCEWDM23994T ABB: Washdown Motor 15 Hp 230 V (CEWDM23994T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
15HP,3500RPM,3PH,60HZ,254TC,3752M,T
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6309, Sealed Bearing
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
CEWDM23994T
Certification Agency
CSA | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
A
Dimension Diagram
37LYH882: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
254
Frequency (f)
60 Hz
Global Commercial Alias
CEWDM23994T
Gross Volume
7561.383 in³
Gross Weight
188 lb
Horsepower Rating UL/CSA
15.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
15HP,3500RPM,3PH,60HZ,254TC,3752M,TEFC,F
Lubrication
For life
Made To Order
No
Medium Description
White Washdown, 15 HP, 3600 RPM, Frame Size 254Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CEWDM23994T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
254TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
15 Hp
Power Factor
90 %
Product Name
White Washdown
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
188 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
33.2 A | 16.6 A
Rated Efficiency
91 %
Rated Speed
3500 r/min
Replaced Product ID (OLD)
7B37H882T381G1
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.63 in
Short Description
15 HP, 3600 RPM, Frame Size 254Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101115
Voltage Code
K
Voltage Rating
230 V | 460 V
Feature: TEFC enclosure and IP55 protection provide moisture resistance and protection against washdown environments. Business Impact: Reduces windings exposure to water and dust, lowering maintenance costs and extending motor life. Application: Food processing conveyors and beverage packaging lines where frequent cleaning is essential. Feature: Premium Efficiency (NEMA 12-12) coupled with 89.50% rated efficiency. Business Impact: Lower energy consumption and operating costs over the life of the motor. Application: High-cycle production lines seeking ROI through energy savings.Feature: 286TC frame with C-Face mounting and 3-phase 60 Hz operation at 230/460 V. Business Impact: Easy retrofits and flexible integration with standard bases, shafts, and VFDs. Application: Retrofit projects and new installations across workshops and plants.Feature: Direct On Line starting, 8-pole design, and NEMA Design Code B. Business Impact: Simplified start-up, robust torque characteristics, and predictable performance under continuous duty. Application: Heavy-load conveyors and mixers in continuous-operation environments.Feature: Stainless Steel option and robust mechanicals (shaft diameter 1.88 in, 6311/6309 bearings). Business Impact: Enhanced corrosion resistance and long bearing life, reducing downtime. Application: Clean-in-place (CIP) and washdown zones in pharmaceutical and food plants.Feature: Certifications (CSA, CSA EEV, UR) and IP55/NEMA aligned design. Business Impact: Regulatory compliance and market-ready validation for North American projects. Application: Sterile lines, regulated manufacturing, and multinational facilities.
Get a Quick Quote for a ABB 7BCEWDM23994T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEWDM23994T?
Enquire Now
FAQs
This motor uses a 286TC frame with C-Face mounting and is designed for horizontal, foot-mounted installation. It supports 230/460 V, 60 Hz three-phase power and is compatible with standard motor bases and variable frequency drives (VFDs). When retrofitting, ensure mounting alignment and shaft compatibility (1.88 in), and verify bearing clearances to match your conveyor system.
Key specs include 15 HP output, rated speed of 880 r/min, maximum speed 1350 r/min, and IP55 TEFC enclosure. The motor operates on 230/460 V, 60 Hz with a 3-phase supply and 8P pole design. Efficiency is 89.50%, delivering energy savings, while the 1.00 service factor supports reliable operation under continuous duty on demanding lines.
Yes. The unit is a washdown-ready stainless-steel-leaning solution with TEFC enclosure and IP55 protection, designed for frequent washdowns and high-humidity environments. It’s ideal for conveyors and packaging lines in food and beverage sectors, as well as pharmaceutical processing where cleaning and hygiene are critical.
The motor carries CSA, CSA EEV, and UR certifications, aligning with North American electrical and safety standards. It also adheres to NEMA design conventions and Premium Efficiency ratings, supporting compliance in regulated industries while enabling widespread procurement.
You gain longer service intervals due to IP55 TEFC protection and robust bearings (6311/6309), reducing maintenance costs. The high efficiency (89.50%) lowers energy bills, and the compact, standard-footprint design minimizes retrofitting costs. Overall, expect lower total cost of ownership with improved uptime on continuous-duty lines.
