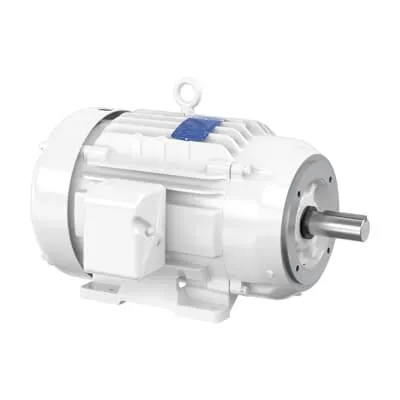

ABB 7BCEWDM2401T Washdown Motor - IP55 TEFC 60 Hz
Part Number: 7BCEWDM2401T
Quick Summary
ABB 7BCEWDM2401T washdown motor delivers reliable 7.5 HP drive for hygienic, high-pressure washdown environments in food, beverage, and pharmaceutical applications. Maintenance downtime and corrosion risk in harsh washdown settings can erode uptime and inflate lifecycle costs. Built to endure, it features IP55 protection and TEFC enclosure, with NEMA Premium efficiency and CSA/UR certifications for global compliance. For global maintenance teams, the 230/460 V, 60 Hz multi-voltage rating and 256TC frame simplify installation and spare-part compatibility, reducing downtime and total cost of ownership. With direct-on-line start and robust construction, it is a straightforward retrofit for existing lines and supports long service life in demanding environments.
Product Information
Extended Description
7BCEWDM2401T ABB: Washdown Motor 7.5 Hp 230 V (CEWDM2401T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5HP,880RPM,3PH,60HZ,256TC,TEFC,F1
Ambient Temperature
40 °C
Bearing
6309
Bearing NDE
6208
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEWDM2401T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
C-Face
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
CEWDM2401T
Gross Volume
9651.933 inÂł
Gross Weight
145.15 kg
IP Class
IP55
Insulation Class
F
Invoice Description
7.5HP,880RPM,3PH,60HZ,256TC,TEFC,F1
Made To Order
No
Maximum Speed
1350 r/min
Medium Description
Stainless Steel, 7.5 HP, 900 RPM, Frame Size 256Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CEWDM2401T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
256TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
8P
Number of Poles (High)
8
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
7.5 Hp
Power Factor
67 %
Product Name
Stainless Steel
Product Net Depth / Length
27 in
Product Net Height
17.438 in
Product Net Weight
145.15 kg
Product Net Width
20.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
24.2 A | 12.1 A
Rated Efficiency
86.50 %
Rated Speed
880 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
1.63 in
Short Description
7.5 HP, 900 RPM, Frame Size 256Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
900 r/min
Type of Duty
Continuous
Voltage Rating
230 V | 460 V
The motor delivers 7.5 HP from a 256TC frame with TEFC enclosure, compatible with 230/460 V at 60 Hz for 3-phase systems. This combination reduces retrofit cost and ensures torque consistency across conveyors and pumps. IP55 protection shields interior components from dust and wash-down water, minimizing unscheduled downtime in hygienic environments and the TEFC enclosure further enhances reliability in harsh environments. Premium efficiency with 86.50% efficiency lowers energy consumption, while a rated current of 24.2 A / 12.1 A supports medium-load applications and maintains a favorable power factor. Direct On Line starting simplifies electrical design, reducing control hardware and startup time. The 8-pole design delivers 880 r/min at 60 Hz, making it suitable for continuous-duty tasks in packaging and material handling. Mounting flexibility includes foot-mounted, horizontal orientation with a C-face drive end flange and 256TC frame, easing installation on existing baseplates. Stock is available across multiple warehouses with quick-turn availability, enabling rapid deployment for OEMs and service teams.
Get a Quick Quote for a ABB 7BCEWDM2401T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEWDM2401T?
Enquire Now
FAQs
The 7BCEWDM2401T is designed for dual-voltage operation at 230 V and 460 V in a 3-phase, 60 Hz system. It supports typical industrial wiring schemes and current draws of approximately 24.2 A at full load and 12.1 A at lighter loads, enabling straightforward retrofits without changing switchgear or drives.
This model uses a 256TC frame with a TEFC enclosure and a C-face drive end flange. It is foot-mounted with horizontal mounting orientation, which simplifies installation on standard baseplates and aligns with common drive shafts in conveyors, pumps, and processing equipment.
The motor carries CSA, UR, and EEV listings, along with a NEMA design code of A and Premium Efficiency ratings. It features IP55 ingress protection and an insulation class of F, offering global compliance and reliable performance in demanding environments.
Routine maintenance aligns with standard industrial motors: monitor bearing condition, inspect seals, and ensure proper lubrication per OEM guidance. Warranty terms require returns for warranty service, and the unit is stocked at multiple warehouses to minimize downtime when replacements are needed.
Premium Efficiency (86.50%) reduces energy consumption over the motor’s life, lowering operating costs for continuous-duty applications. Combined with direct-on-line starting and robust enclosure protection, it minimizes electrical and maintenance investment, delivering faster payback on mid-to-high duty cycles common in food, beverage, and pharmaceutical lines.
