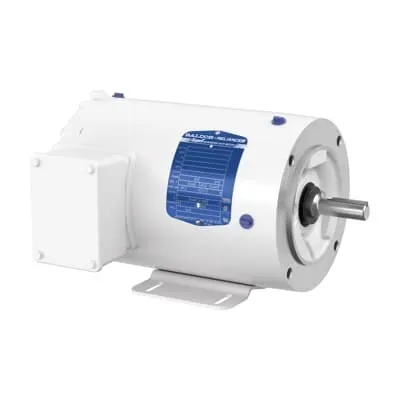

ABB Washdown Motor 7BCEWDM3550 - IE3 Premium
Part Number: 7BCEWDM3550
Quick Summary
ABB Washdown Motor 7BCEWDM3550 delivers reliable, wet-environment power for food and beverage processing lines. Facilities struggle with corrosion, downtime, and motor wear in splash-prone spaces, reducing maintenance and causing unexpected downtime. Certified IE3 Premium Efficiency, NEMA Design Code B, and CSA/UR certifications help meet energy, safety, and regulatory requirements. By pairing a 1.5 HP rating with 230/460 V dual-voltage capability and a rugged TENV enclosure, it delivers reliable performance while lowering life-cycle costs.
Product Information
Extended Description
7BCEWDM3550 ABB: Washdown Motor 1.5 Hp 230 V (CEWDM3550)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,3500RPM,3PH,60HZ,56,C,3528M,T
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEWDM3550
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
35LYT964: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TENV
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
CEWDM3550
Gross Volume
2110.969 in³
Gross Weight
46 lb
Horsepower Rating UL/CSA
1.500 Hp
IC Class
TENV
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
1.5HP,3500RPM,3PH,60HZ,56,C,3528M,TENV,F
Lubrication
For life
Made To Order
No
Medium Description
White Washdown, 1.5 HP, 3600 RPM, Frame Size 56C, C-Face Mounting, 3 Phase, TENV Enclosure, 230/460 V, 60 Hz (CEWDM3550)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56C
Motor Frame Suffix
C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1.5 Hp
Power Factor
87 %
Product Name
White Washdown
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
46 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
4 A | 2 A
Rated Efficiency
85.50 %
Rated Speed
3500 r/min
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.63 in
Short Description
1.5 HP, 3600 RPM, Frame Size 56C, C-Face, 3 PH, TENV, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
N
Voltage Rating
230 V | 460 V
Feature: 1.5 HP, 3500 r/min, 3-phase, 60 Hz, dual voltage 230/460 V. This combination delivers robust torque at starting and running speeds, reducing motor stalls and energy waste. Application: ideal for conveyors, mixers, and processing equipment in washdown environments. Business Impact: improved line throughput and reduced energy cost across shifts. Feature: TENV enclosure with a 56C frame and C-Face mounting. This configuration provides rugged protection against washdown exposure, minimizing corrosion risk and maintenance cycles. Application: horizontal, foot-mounted installations on packaging lines and washdown stations. Business Impact: lower repair frequency and longer service intervals. Feature: IE3 Premium Efficiency and a 0.87 power factor with a 1.15 service factor. This improves energy efficiency, reduces heat generation, and extends motor life under continuous operation. Application: continuous-duty conveyors and processing equipment with high reliability needs. Business Impact: substantial energy savings and cooler plant operation. Feature: RoHS compliance and CSA/UR certifications with standard EN/UL-traceability. Benefit: regulatory compliance, safer maintenance, and easier audits. Application: use in hygienic, regulated industries like food processing and packaging. Business Impact: risk reduction and smoother changeovers. Feature: Stocked at multiple warehouses with 0-day lead time and a clear warranty policy. Benefit: faster project timelines and reduced downtime during commissioning. Application: fast-track installations and rapid replacements on busy production floors. Business Impact: improved project predictability and total cost of ownership.
Get a Quick Quote for a ABB 7BCEWDM3550
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEWDM3550?
Enquire Now
FAQs
The 7BCEWDM3550 uses a 56C frame with C-face mounting and offers horizontal, foot-mounted orientation. This simplifies retrofits and new installs by aligning with common plant mounting patterns, reducing the need for custom adapters and minimizing downtime during replacement or upgrade projects.
Key specs include 1.5 HP output, rated speeds of 3500 r/min with a synchronous speed of 3600 r/min, 60 Hz operation, and dual voltage 230/460 V. It features a power factor ~0.87, service factor 1.15, and rated current of 4 A at 230 V / 2 A at 460 V, suitable for demanding processes.
Yes. The motor uses a TENV enclosure designed for damp or wet environments and has a 56C frame suited for horizontal mounting. Its RoHS compliance and CSA/UR certifications support regulatory demands, while the durable build tolerates frequent cleaning and high-pressure washdown typical in hygienic processes.
The unit carries IE3 Premium Efficiency, NEMA Design Code B, CSA and UR certifications, and RoHS compliance. These credentials support energy targets, safety standards, and regulatory audits across North American and international facilities.
Replacing with this IE3-rated washdown motor reduces electricity usage due to higher efficiency and a lower heat load, cutting cooling and maintenance costs. Coupled with a robust TENV enclosure and longer service intervals, customers typically see reduced downtime and a favorable total cost of ownership over the motor’s life cycle.
