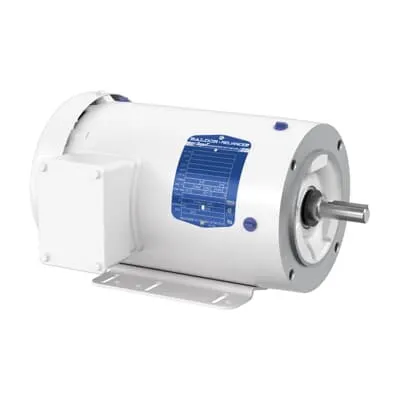

ABB 7BCEWDM3555 Washdown Motor - 2 HP, 230 V, TEFC, IE3
Part Number: 7BCEWDM3555
Quick Summary
ABB 7BCEWDM3555 Washdown Motor delivers reliable 2 HP performance for washdown environments in food processing, beverage lines, and pharmaceutical packaging. This design helps operators avoid corrosion and downtime by withstanding frequent washdowns and wet-cleaning cycles. Certifications such as CSA, CSA EEV, and UR support safe operation in regulated facilities, while RoHS compliance reinforces responsible material use. With 3-phase power and a TEFC enclosure, it’s built for energy efficiency and long service life in demanding environments. For procurement teams, the motor’s compatibility with 230/460 V systems and its install-ready features translate to lower total cost of ownership and faster ROI.
Product Information
Extended Description
7BCEWDM3555 ABB: Washdown Motor 2 Hp 230 V (CEWDM3555)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,3490RPM,3PH,60HZ,56HCY,3526M,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEWDM3555
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
35LYS593: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
CEWDM3555
Gross Volume
3496.049 in³
Gross Weight
35 lb
Horsepower Rating UL/CSA
2.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
2HP,3490RPM,3PH,60HZ,56HCY,3526M,TEFC,F1
Lubrication
For life
Made To Order
No
Medium Description
White Washdown, 2 HP, 3600 RPM, Frame Size 56Hcy, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CEWDM3555)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56HCY
Motor Frame Suffix
HCY
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
88 %
Product Name
White Washdown
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
35 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
5 A | 2.5 A
Rated Efficiency
85.50 %
Rated Speed
3490 r/min
Replaced Product ID (OLD)
7B35S593M774G1
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.63 in
Short Description
2 HP, 3600 RPM, Frame Size 56Hcy, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
M
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: 2 HP three-phase motor delivers strong throughput for compact automation tasks, reducing cycle times and increasing line productivity in high-demand washdown processes. This aligns with 3490 r/min speed at 60 Hz, providing predictable performance for belt and pump-driven lines in food, beverage, and pharma applications. Feature → Business Impact → Application: TEFC enclosure protects the windings from moisture, dust, and cleaning agents, extending motor life and lowering maintenance costs in clean-in-place environments. This is ideal for sanitary sections of processing plants that require robust sealing and easy cleaning practices. Feature → Business Impact → Application: 230/460 V dual-voltage capability enables flexible integration with existing electrical infrastructures, simplifying retrofits and new installations across plant floors. Feature → Business Impact → Application: Premium IE3 efficiency reduces energy consumption and operating costs over the motor’s life, supporting sustainability goals and lowering utility bills in continuous operation scenarios. Feature → Business Impact → Application: C-Face drive end and foot mounting with horizontal alignment simplify mounting and alignment, reducing commissioning time and installation errors in tight spaces. Feature → Business Impact → Application: RoHS compliance and global certifications (CSA, CSA EEV, UR) provide regulatory assurance and market access for multinational facilities, ensuring ongoing compliance during audits and expansions. Feature → Business Impact → Application: Lubrication labeled as “For life” minimizes maintenance intervals and downtime for lubrication servicing, improving overall equipment effectiveness on busy lines. These characteristics collectively support predictable performance, lower risk of unscheduled outages, and easier maintenance planning for operators in the food, beverage, and pharma sectors.
Get a Quick Quote for a ABB 7BCEWDM3555
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEWDM3555?
Enquire Now
FAQs
The motor is designed for foot mounting with horizontal orientation (F1) and features a C-Face drive end flange for straightforward coupling to drives. Its 3‑phase configuration supports standard industrial power supplies, enabling quick integration into existing lines and reducing installation downtime in food and pharmaceutical processing environments.
Yes. The 7BCEWDM3555 supports both 230 V and 460 V operation at 60 Hz. It delivers 3490 r/min under these conditions with a single-speed operation, making it suitable for synchronous belt drives and pump interfaces common in washdown lines.
The motor carries CSA, CSA EEV, and UR certifications, along with RoHS compliance. These endorsements help meet safety and regulatory requirements for U.S. and international facilities, enabling smoother audits and broader market access for food, beverage, and pharmaceutical applications.
Ideal for edible, FDA-regulated environments and other washdown applications, including conveyor drives and sanitary pumps. The TEFC enclosure and 2 HP rating, combined with 60 Hz operation, support reliable performance on line speeds and cleaning cycles typical of processing plants.
Lubrication is specified as 'For life,' reducing maintenance intervals and downtime. Paired with IE3 efficiency and a robust 56HCY frame, this motor offers lower energy and maintenance costs over its lifecycle, improving overall return on investment for continuous operation in production environments.
