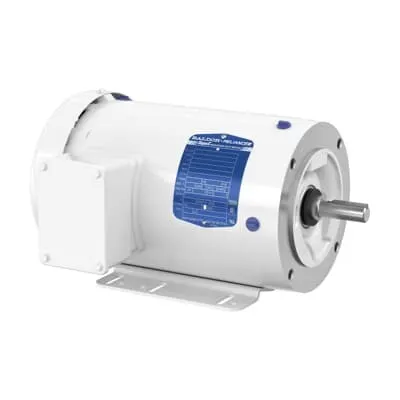

ABB 7BCEWDM3555-H Motor - Washdown, 2HP, 60 Hz, 3PH TEFC
Part Number: 7BCEWDM3555-H
Quick Summary
ABB 7BCEWDM3555-H Motor is a washdown-capable 2 HP AC motor designed for food processing and packaging lines. If your operation faces harsh washdowns, corrosion risk, or tight downtime windows, this motor helps by combining a rugged TEFC enclosure with premium efficiency and predictable availability. It is built for continuous duty and carries industry-standard certifications to support regulatory compliance, while offering reliable performance in demanding environments. With a 56HC frame, foot-mounted design, and C-face drive end flange, installation is straightforward and predictable, enabling efficient maintenance planning. This combination of rugged protection and flexible power options supports lean manufacturing goals and energy-saving initiatives across multiple sites.
Product Information
Extended Description
7BCEWDM3555-H ABB: Washdown Motor 2 Hp 230 V (CEWDM3555-H)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,3490RPM,3PH,60HZ,56HC,TEFC,F1
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEWDM3555-H
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
35LY-000-264: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
CEWDM3555-H
Gross Volume
3496.049 in³
Gross Weight
41 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
2HP,3490RPM,3PH,60HZ,56HC,TEFC,F1
Made To Order
No
Medium Description
White Washdown, 2 HP, 3600 RPM, Frame Size 56Hc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CEWDM3555-H)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56HC
Motor Frame Suffix
CH
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
88 %
Product Name
White Washdown
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
41 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
5 A | 2.5 A
Rated Efficiency
85.50 %
Rated Speed
3490 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.63 in
Short Description
2 HP, 3600 RPM, Frame Size 56Hc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature TEFC enclosure → Business Impact protects windings from washdown spray and airborne contaminants, reducing maintenance and downtime; Application ideal for conveyors, pumps, and mixers in food processing and packaging lines. Feature Premium Efficiency and Insulation Class F → Business Impact lowers operating costs through improved energy use and sustained performance in warm environments; Application supports long-cycle operation in continuous duty scenarios. Feature Dual voltage 230/460 V → Business Impact simplifies installation across sites with different power standards, enabling quick, low-cost deployments; Application suitable for multi-site food and beverage facilities. Feature Direct On Line starting → Business Impact enables fast, simple commissioning and reduced control hardware costs; Application beneficial for line-start scenarios in assembly and packaging. Feature 56HC frame with 0.63 in shaft diameter → Business Impact ensures compatibility with common gearboxes and belts, reducing replacement lead times; Application streamlines retrofits and upgrades. Feature 3-phase, 60 Hz operation → Business Impact delivers reliable torque and consistent performance under variable loads; Application aligns with standard industrial drives and controls. Feature Foot-mounted with C-face drive end flange → Business Impact offers flexible mounting and easy motor-to-drive integration; Application simplifies installation on horizontal conveyors and processing equipment. Feature Ambient temperature rating to 40 °C → Business Impact ensures stable performance in warm plant areas, reducing the risk of thermal issues; Application suitable for hot production floors and return lines.
Get a Quick Quote for a ABB 7BCEWDM3555-H
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEWDM3555-H?
Enquire Now
FAQs
The motor is designed for foot mounting with horizontal orientation and includes a C-face drive end flange, enabling straightforward integration with belts, pulleys, and gearboxes.
Yes. It supports dual voltage 230/460 V and is configured for Direct On Line starting, simplifying control schemes for standard industrial drives.
The model carries CSA, CSA EEV, and UR markings, with NEMA-based standards guidance and a premium efficiency rating for reliable, compliant operation.
Lead time is listed as 0 day with stock availability across multiple warehouses, including US and international locations, ensuring rapid fulfillment.
Product supports standard warranty terms with a stated policy that warranty-related returns are required if applicable; regular washdown maintenance is supported by TEFC protection and robust insulation.
