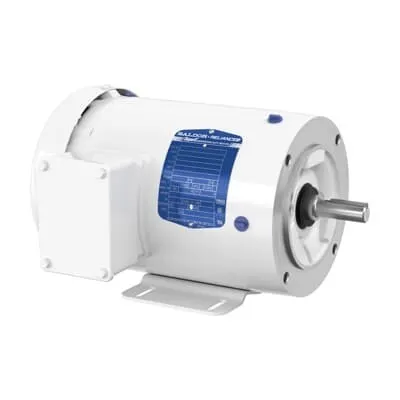

ABB 7BCEWDM3556 Washdown Motor - IE3 Premium Efficiency
Part Number: 7BCEWDM3556
Quick Summary
Washdown motor 1 HP for hygienic, high-demand manufacturing environments and processing lines. Industrial facilities contend with frequent washdowns, corrosion risk, and unpredictable downtime that eat into productivity. Certified for CSA, CSA EEV, and UR, this motor also features IE3 premium efficiency and a TEFC enclosure, underscoring reliability and compliance. With a 56C frame, 3-phase 60 Hz supply, and C-face mounting, it aligns with common OEM configurations, reducing installation complexity and spare parts variety. Designed to run at 60 Hz with 1 HP output, it delivers energy savings and steady torque, helping manufacturers lower operating costs while meeting hygiene and safety standards.
Product Information
Extended Description
7BCEWDM3556 ABB: Washdown Motor 1 Hp 230 V (CEWDM3556)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1170RPM,3PH,60HZ,56C,3526M,TEFC
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEWDM3556
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
B
Dimension Diagram
35LYS587: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
CEWDM3556
Gross Volume
3496.049 inÂł
Gross Weight
43 lb
Horsepower Rating UL/CSA
1.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
1HP,1170RPM,3PH,60HZ,56C,3526M,TEFC,F1,N
Lubrication
For life
Made To Order
No
Medium Description
White Washdown, 1 HP, 1200 RPM, Frame Size 56C, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CEWDM3556)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56C
Motor Frame Suffix
C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
64 %
Product Name
White Washdown
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
43 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3.6 A | 1.8 A
Rated Efficiency
82.50 %
Rated Speed
1155 r/min
Replaced Product ID (OLD)
7B35S587G019G1
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.63 in
Short Description
1 HP, 1200 RPM, Frame Size 56C, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
K
Voltage Rating
230 V | 460 V
Feature: TEFC enclosure and washdown suitability → Business Impact: Protects internal components from splashes and contaminants, enabling longer service life in challenging environments. Application: Food processing lines, beverage packaging, and sanitary conveyors benefit from reduced corrosion risk and maintenance downtime. Feature: IE3 premium efficiency and 1 HP output → Business Impact: Lower energy consumption and operating costs without sacrificing performance. Application: Continuous-duty drives and pumps in busy production lines gain improved energy efficiency and reduced utility bills. Feature: 56C frame, 3-phase 60 Hz, 230/460 V → Business Impact: Broad compatibility with standard electrical distributions and OEM equipment, simplifying panel design and inventory. Application: OEMs look for plug-and-play motors on mixed-voltage lines with reliable torque. Feature: C-face mounting and foot-mounted base → Business Impact: Easy installation and service access, reducing commissioning time and downtime. Application: Conveyors and mixers where quick changes and maintenance access are critical. Feature: Bearings and construction (6205 Ball / 6203 Ball; Insulation Class F; Synchronous 1200 r/min) → Business Impact: Durable, low-maintenance operation with predictable performance under load. Application: High-cycle operations such as pumps and fans in production lines benefit from improved reliability. Feature: Certifications and compliance (CSA, CSA EEV, UR; NEMA Design Code B) → Business Impact: Regulatory alignment and safe operation across global facilities. Application: Regulated environments with mandatory approvals can deploy with confidence, meeting internal and external audit requirements.
Get a Quick Quote for a ABB 7BCEWDM3556
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEWDM3556?
Enquire Now
FAQs
ABB 7BCEWDM3556 is a 3-phase motor designed for 230/460 V operation at 60 Hz with a 56C frame and TEFC enclosure. It supports foot mounting and C-face drive end, enabling straightforward integration with common VFDs and PLC-controlled lines. For best results, match shielded motor wiring with your control cabinet and ensure compatible overload protections are in place to maintain consistent torque and prevent nuisance trips.
The motor delivers 1 HP with a rated speed of 1155 r/min and a synchronous speed of 1200 r/min at 60 Hz. It uses IE3 premium efficiency and a TEFC enclosure, designed for continuous duty in washdown environments. The shaft diameter is 0.63 in, and the bearings are ball type (6205 and 6203), contributing to reliable, long-life performance in demanding applications.
Yes. The White Washdown motor family, including CEWDM3556, features a TEFC enclosure and 56C frame that resist washdown contaminants. Its 60 Hz, 3-phase, 230/460 V operation fits standard food-processing equipment. With CSA/UR certifications and robust construction, it provides dependable service in sanitary environments while meeting regulatory expectations.
The ABB 7BCEWDM3556 carries CSA, CSA EEV, and UR certifications, ensuring compliance with safety and electrical standards. It is built to NEMA design B and IE3 efficiency class, offering reliable performance and energy savings. These approvals support installation across facilities with strict regulatory requirements and audits.
With IE3 premium efficiency, the motor reduces energy costs over a standard 3-phase drive deployment. Built for longevity with ball bearings (6205/6203) and a life-lubricated construction, it minimizes maintenance intervals. The TEFC enclosure and washdown-ready design also reduce cleaning-related wear, translating to lower maintenance labor and extended asset life.
