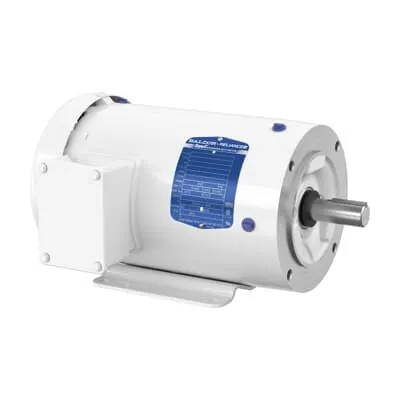

ABB 7BCEWDM3556T Washdown Motor - 1 HP TEFC 230/460 V
Part Number: 7BCEWDM3556T
Quick Summary
ABB 7BCEWDM3556T washdown motor powers sanitary, high-hygiene line equipment with 1 HP at 230 V. Engineers face moisture, corrosion, and downtime in washdown environments, and this motor's TEFC enclosure and rugged frame help minimize those risks. It carries CSA, CSA EEV, and UR certifications, reinforcing safety compliance in food, beverage, and pharmaceutical facilities. With dual voltage 230/460 V and 60 Hz operation, installation is flexible across global plants and conveyors. By combining energy-efficient performance with rugged construction, it delivers lower operating costs across continuous-duty applications.
Product Information
Extended Description
7BCEWDM3556T ABB: Washdown Motor 1 Hp 230 V (CEWDM3556T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1//.75HP,1155//970RPM,3PH,60//50HZ,
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEWDM3556T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Dimension Diagram
35LYS595: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
CEWDM3556T
Gross Volume
3496.049 inÂł
Gross Weight
41 lb
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
F
Invoice Description
1//.75HP,1155//970RPM,3PH,60//50HZ,145TC
Made To Order
No
Medium Description
White Washdown, 1 HP, 1200 RPM, Frame Size 145Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CEWDM3556T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
64 %
Product Name
White Washdown
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
41 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3.6 A | 1.8 A
Rated Efficiency
82.50 %
Rated Speed
1155 r/min
Replaced Product ID (OLD)
7B35S595G019
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Short Description
1 HP, 1200 RPM, Frame Size 145Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
230 V | 460 V
Feature: TEFC enclosure and washdown-ready construction. Business Impact: Protects windings from moisture and contaminants, reducing maintenance cycles and extending motor life. Application: Food processing lines, beverage packaging, and pharmaceutical equipment where frequent washdowns occur. Feature: Dual voltage 230/460 V and 60 Hz compatibility. Business Impact: Simplifies global installation and stock management, minimizing costly wiring changes and downtime during plant expansions. Application: International manufacturing sites and multi-market operations that require flexible electrical sourcing. Feature: 145TC frame, foot-mounted and C-face mounting options. Business Impact: Facilitates quick retrofits and straightforward integration with existing bases and couplings, reducing installation time and spare-parts inventory. Application: Conveyor systems, mixers, and mixers in compact plant spaces. Feature: Premium efficiency and continuous-duty design. Business Impact: Improves energy performance and reduces operating costs over the motor's life, supporting sustainability goals. Application: Continuous-process equipment and heavy-duty conveyors in 24/7 operations. Feature: Insulation class F, 6205/Ball bearings, and 60 Hz, 3-phase operation. Business Impact: Enhances thermal tolerance and long-term reliability, lowering total cost of ownership. Application: Harsh washdown environments with high duty cycles and frequent start/stop cycles. Feature: 1 HP rating with 1155 rpm and 145TC frame in a TEFC enclosure. Business Impact: Predictable performance with standardized drive compatibility and easy part sourcing. Application: Automation lines, packaging equipment, and material-handling systems requiring dependable start-up and smooth speed control.
Get a Quick Quote for a ABB 7BCEWDM3556T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEWDM3556T?
Enquire Now
FAQs
The CEWDM3556T uses a 145TC frame and offers both foot-mounted and C-face mounting. For retrofits, align the motor shaft with the driven equipment, secure via the frame feet or the C-face adapter, and use appropriate fasteners. Ensure electrical connections match a 230/460 V 3-phase supply for 60 Hz operation and verify alignment to minimize vibration.
This motor is designed for dual voltage operation: 230 V or 460 V, 3-phase, at 60 Hz. The nominal current is approximately 3.6 A at 230 V and 1.8 A at 460 V. Use a suitable VFD or direct-on-line starter compatible with TEFC, NEMA-style drives, and verify proper wiring per the nameplate data.
Yes. The motor carries CSA, CSA EEV, and UR certifications, which support compliance in North American markets and industrial facilities that require recognized electrical safety and equipment approvals. It’s also built with a NEMA-style design and a TEFC enclosure for reliable operation in harsh environments.
Plan routine inspections of the TEFC enclosure seals, bearings, and shaft alignment. The motor uses 6205 ball bearings and a 6203 NDE bearing, with an insulation class F, suitable for typical washdown temperatures up to 40 C ambient. Maintain clean ventilation, monitor for unusual noise or vibration, and follow Baldor/ABB warranty guidance for warranty returns when issues arise.
Best-fit applications include conveyors, mixers, and process equipment in washdown-intensive areas of food processing, beverage packaging, and pharmaceutical production. Its 1 HP rating, 1155 rpm speed, and 145TC frame provide reliable torque for belt drives and pump systems, while the TEFC enclosure protects against moisture, ensuring uptime and consistent performance.
