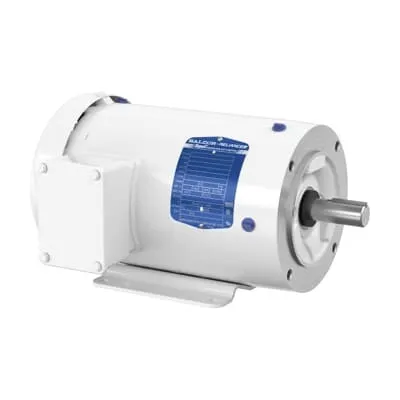

ABB 7BCEWDM3558T-5 Washdown Motor - 575 V TEFC IE3 Premium
Part Number: 7BCEWDM3558T-5
Quick Summary
ABB 7BCEWDM3558T-5 Washdown Motor delivers 2 HP reliability for washdown environments in industrial equipment. End-user pain points include corrosion risk, ingress protection challenges, and unplanned downtime. Certified CE marking, CSA/UR listings, and CSA EEV support safety and compliance in global plants. Built for premium efficiency (IE3) and TEFC protection, it helps lower energy costs and maximize uptime, while offering straightforward installation in 145TC frames. The 3-phase, 60 Hz 575 V supply matches standard plant mains, and a 4-pole, NEMA-design body ensures stable torque across demanding cycles. With a 1-piece package and foot-mounted, C-face mounting, retrofit projects go smoothly and maintenance intervals stay predictable.
Product Information
Extended Description
7BCEWDM3558T-5 ABB: Washdown Motor 2 Hp 575 V (CEWDM3558T-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,1764RPM,3PH,60HZ,145TC,3528M,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEWDM3558T-5
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
35LYSS595: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
CEWDM3558T-5
Gross Volume
3496.049 in³
Gross Weight
46 lb
Horsepower Rating UL/CSA
2.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
2HP,1764RPM,3PH,60HZ,145TC,3528M,TEFC,F1
Lubrication
For life
Made To Order
No
Medium Description
White Washdown, 2 HP, 1800 RPM, Frame Size 145Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 575 V, 60 Hz (CEWDM3558T-5)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
80 %
Product Name
White Washdown
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
46 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
2.15 A
Rated Efficiency
86.50 %
Rated Speed
1764 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
2 HP, 1800 RPM, Frame Size 145Tc, C-Face, 3 PH, TEFC, 575 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
L
Voltage Rating
575 V
Feature: TEFC enclosure and washdown-ready construction provide corrosion resistance and easier cleaning, reducing maintenance intervals. Business Impact: Increased equipment availability and lower lifecycle costs due to fewer seal failures and quicker sanitation cycles. Application: Food processing lines, beverage packaging, and pharmaceutical lines where frequent washdowns are required. Feature: 2 HP output on 575 V three-phase power with IE3 Premium efficiency delivers meaningful energy savings. Business Impact: Lower utility bills and improved overall equipment effectiveness (OEE) in continuous process environments. Application: Pumps, conveyors, and fans in primary production areas. Feature: 145TC frame with C-Face mounting and foot-mount base type supports straightforward installation and retrofits. Business Impact: Reduced installation time, compatibility with existing mounting footprints, and easier service access. Application: Retrofit projects on aging lines or new-builds requiring standardization. Feature: Direct On Line starting, 4-pole design, and 60 Hz operation provide reliable startup and stable torque. Business Impact: Minimized startup surge and steadier process control, improving uptime. Application: High-tidelity process lines in pharma and packaging. Feature: 6205 Ball bearings and lubrication for life reduce maintenance and extend bearing life. Business Impact: Lower maintenance costs and fewer unplanned shutdowns. Application: Continuous operation in washdown environments with heavy washdown cycles.
Get a Quick Quote for a ABB 7BCEWDM3558T-5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEWDM3558T-5?
Enquire Now
FAQs
This motor is designed for foot-mounted installation with horizontal mounting orientation and a C-Face drive end flange. It uses a 145TC frame and direct-on-line starting for 3-phase, 575 V power at 60 Hz. The shaft diameter is 0.88 in, enabling straightforward coupling to standard driven equipment and minimizing retrofit complexity.
The motor delivers 2 HP at 575 V with a 60 Hz, 3-phase supply and a 4-pole configuration, yielding a nominal speed of 1764 r/min. ItAchieves IE3 Premium efficiency, has a rated current around 2.15 A, and a service factor of 1.15, with insulation class F and TEFC enclosure for durable performance in harsh environments.
Yes. The White Washdown motor features a TEFC enclosure designed for washdown environments and 575 V operation, providing corrosion resistance and easy cleaning. It is well-suited for food & beverage, pharmaceutical, and packaging lines, where sanitation, reliability, and uptime are critical to meeting production schedules.
The motor carries CE marking and CSA/UR listings, with CSA EEV noted for electrical safety compliance. It adheres to NEMA design code B and is built for a 145TC frame with TEFC enclosure and 3-phase operation. These certifications support global installation and regulatory compliance in industrial plants.
Lead time is indicated as 0 day, and the product is stocked at multiple warehouses, enabling rapid fulfillment. Warranty terms specify that warranty returns are required for product issues. In-stock availability across designated warehouses supports fast procurement and minimal downtime for critical washdown applications.
