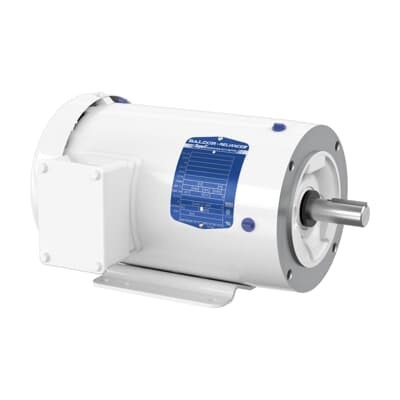

ABB CEWDM3559T-5 Washdown Motor - TEFC 575V, 3-Phase
Part Number: 7BCEWDM3559T-5
Quick Summary
Washdown motor CEWDM3559T-5 from ABB delivers a reliable 3 HP drive for harsh washdown environments. Operating in sanitary lines across food processing, beverage, and packaging, this motor addresses moisture exposure, corrosion risk, and downtime. It carries CSA and UR approvals with CSA EEV certification, and RoHS compliance, helping meet stringent safety and environmental requirements. Designed for direct-on-line starts and continuous duty, it combines IE3 premium efficiency with a 575 V, 60 Hz rating and a TEFC enclosure, reducing energy use while simplifying installation. With a 145TC frame and foot-mounted C-face configuration, the unit supports straightforward retrofits and dependable long-term operation in busy facilities.
Product Information
Extended Description
7BCEWDM3559T-5 ABB: Washdown Motor 3 Hp 575 V (CEWDM3559T-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,3450RPM,3PH,60HZ,145TC,3532M,TE
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEWDM3559T-5
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
35LYTT936: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
CEWDM3559T-5
Gross Volume
3496.049 in³
Gross Weight
52 lb
Horsepower Rating UL/CSA
3.000 Hp
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
3HP,3450RPM,3PH,60HZ,145TC,3532M,TEFC,F1
Made To Order
No
Medium Description
White Washdown, 3 HP, 3600 RPM, Frame Size 145Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 575 V, 60 Hz (CEWDM3559T-5)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
92 %
Product Name
White Washdown
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
52 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
2.9 A
Rated Efficiency
86.50 %
Rated Speed
3450 r/min
Replaced Product ID (OLD)
7B35TT936M839G1
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
3 HP, 3600 RPM, Frame Size 145Tc, C-Face, 3 PH, TEFC, 575 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
575 V
575 V three-phase power, 3 HP rating, 60 Hz operation, and a 145TC frame with TEFC enclosure provide compatibility with standard plant electricals and rugged sealing for damp environments, reducing moisture ingress and maintenance costs while improving motor life. This combination translates into lower total cost of ownership as energy efficiency improves, and downtime is minimized in critical lines such as conveyors and mixers. Direct On Line starting and continuous-duty capability support simple control schemes, reducing startup complexity and wear on drives, which is ideal for pumps and fans in high-throughput production. IE3 premium efficiency and RoHS compliance drive energy savings and regulatory alignment, while the sturdy footprint and C-face foot-mounted mounting streamline installations and retrofits in existing lines. In-stock availability across multiple warehouses with 0-day lead times enhances supply chain resilience, ensuring production continuity for global operations. The 575 V rating, 60 Hz performance, and 52 lb weight offer a practical balance of power and manageability for shop-floor integration. This motor’s 0.88 in shaft diameter and 13.75 in width support compatibility with common mechanical couplings and belt drives, enabling straightforward upgrades or replacements. The result is predictable, compliant performance with lower lifecycle costs and faster ROI for sanitary processing equipment.
Get a Quick Quote for a ABB 7BCEWDM3559T-5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEWDM3559T-5?
Enquire Now
FAQs
Ensure the mounting footprint matches a 145TC frame and use the included foot-mounted, horizontal orientation with a C-face configuration. Connect to a 575 V, three-phase supply and perform a direct-on-line start. Verify shaft alignment, torque requirements, and motor realignment after commissioning to maintain optimal efficiency and minimize vibration in belt or coupling-driven applications.
The CEWDM3559T-5 provides 3 HP at 575 V and 60 Hz, with a rated speed of 3450 r/min and a 2-pole configuration. It features a TEFC enclosure, 145TC frame, 0.88 in shaft diameter, and a service factor of 1.15. It is RoHS compliant and carries IE3 Premium Efficiency and CSA EEV/UR certifications for safety and efficiency.
Yes. The White Washdown model is designed for sanitary environments, with a TEFC enclosure and a 40 °C ambient rating. It carries CSA EEV and UR approvals and RoHS compliance, supporting regulatory requirements in food/beverage facilities. Its 575 V, 60 Hz, 3 HP rating aligns with common plant power systems while delivering reliable performance under continuous duty.
This motor features CSA, CSA EEV, and UR certifications, along with RoHS compliance, providing recognized safety and environmental assurances for North American and international operations. These certifications help meet industry and customer standards for sanitary equipment, reducing risk during audits and simplifying procurement in regulated sectors such as food, beverage, and packaging.
Lead time is listed as 0 days, and the motor is stocked at multiple warehouses (e.g., US, GB, SG, CN), with a minimum order quantity of 1 piece. This availability supports rapid fulfillment, enabling faster production line commissioning and reduced downtime when replacing or upgrading existing washdown motors.
