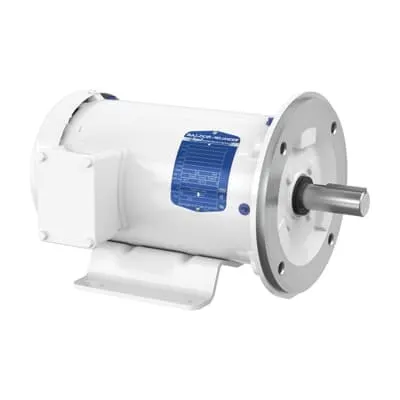

ABB 7BCEWDM3610T Washdown Motor - IE3 Premium Efficiency
Part Number: 7BCEWDM3610T
Quick Summary
ABB 7BCEWDM3610T Washdown Motor delivers rugged, hygienic power for 3-phase drive in food processing and packaging lines. Many facilities struggle with corrosion, washdown exposure, and downtime during cleaning cycles, making motor reliability a real pain point. Certified for CSA, CSA EEV, and UR, it also achieves IE3 premium efficiency, supporting energy programs and total cost of ownership goals. With a 182TC frame, TEFC enclosure, and dual voltage rating of 230/460 V, it fits common U.S. and international installations while helping facilities cut maintenance and spare parts costs over the motor’s life. This combination of protection, efficiency, and mounting versatility supports consistent throughput and safer hygiene practices across demanding environments.
Product Information
Extended Description
7BCEWDM3610T ABB: Washdown Motor 3 Hp 230 V (CEWDM3610T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,3450RPM,3PH,60HZ,182TC,3532M,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6206 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEWDM3610T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
35LYMM213: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
182
Frequency (f)
60 Hz
Global Commercial Alias
CEWDM3610T
Gross Volume
3496.049 in³
Gross Weight
57 lb
Horsepower Rating UL/CSA
3.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
3HP,3450RPM,3PH,60HZ,182TC,3532M,TEFC,F1
Lubrication
For life
Made To Order
No
Medium Description
White Washdown, 3 HP, 3600 RPM, Frame Size 182Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CEWDM3610T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
182TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
92 %
Product Name
White Washdown
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
57 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
7.2 A | 3.6 A
Rated Efficiency
86.50 %
Rated Speed
3450 r/min
Replaced Product ID (OLD)
7B35MM213Q060G1
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.13 in
Short Description
3 HP, 3600 RPM, Frame Size 182Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
L
Voltage Rating
230 V | 460 V
Feature: TEFC enclosure and washdown-ready design protect internal windings from moisture and debris, extending motor life in CIP/SIP environments. Business Impact: Reduces maintenance costs and minimizes unplanned downtime during frequent cleaning cycles. Application: Suitable for food and beverage conveyors and other hygienic process equipment where reliability during washdowns is critical. Feature: IE3 premium efficiency with 3 HP rating delivers meaningful energy savings. Business Impact: lowers operating costs and supports sustainability programs without sacrificing performance. Application: Ideal for continuous-duty drives in packaging lines and material handling where energy efficiency is a priority. Feature: For life lubrication and robust bearings (6206 Ball) extend service intervals and reduce maintenance labor. Business Impact: Improves uptime and lowers total cost of ownership, particularly in high-cycle environments. Application: Heavy-use mixers, grinders, and drives in pharmaceutical or dairy processing. Feature: 182TC frame, 3-phase, 60 Hz, 230/460 V compatibility enables flexible installations. Business Impact: Simplifies spec alignment across multiple sites and reduces field procurement complexity. Application: Global plants with mixed voltage requirements and standardized frame sizing. Feature: C-Face drive end flange, foot mounting, horizontal F1 orientation support convenient installation and alignment. Business Impact: Fast, predictable mounting and reduced commissioning time. Application: Conveyor systems and pump drives in washdown zones where mounting position matters. Feature: 60 Min duty, service factor 1.15, and 3450 rpm speed provide reliable performance under typical load profiles. Business Impact: Consistent torque delivery and predictable performance for common industrial tasks. Application: Mixer drives, blowers, and process equipment in continuous operation.
Get a Quick Quote for a ABB 7BCEWDM3610T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEWDM3610T?
Enquire Now
FAQs
This motor supports 3-phase power at 60 Hz with dual voltage ratings of 230 V or 460 V and uses a 182TC frame size. It is foot mounted with a horizontal F1 orientation and a C-face drive end flange, simplifying retrofit onto common conveyors and processing equipment while minimizing rewiring or adaptors.
You get 3 HP output at 3450 r/min with a 1.15 service factor and IE3 premium efficiency. The motor is rated for continuous duty, 3-phase operation, and a TEFC enclosure, providing reliable torque delivery and improved energy efficiency in washdown environments.
Yes. The TEFC enclosure, washdown-ready design, and stainless perception of its build (with protective bearings and sealed windings) are engineered to withstand frequent cleaning cycles and moisture exposure, reducing corrosion risk and maintenance needs in CIP/SIP processes.
The motor is CSA, CSA EEV, and UR certified, aligning with electrical safety and motor control standards. This reduces qualification time for regulated facilities and supports compliance initiatives, while the IE3 efficiency rating helps meet energy-use targets and lifecycle cost goals.
With for life lubrication and robust ball bearings, maintenance intervals are extended and labor costs reduced. The IE3 efficiency reduces energy consumption, providing measurable annual savings, while its durable TEFC design minimizes downtime and replacement parts in high-cycle washdown applications.
