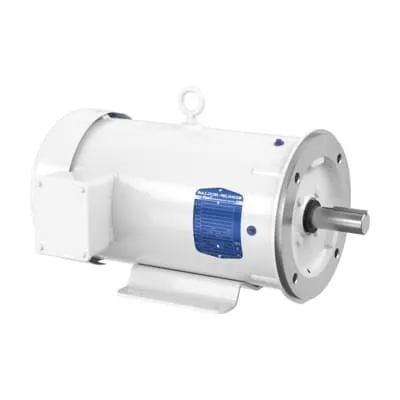

ABB CEWDM3613T-5 Washdown Motor - IE3 Premium Efficiency
Part Number: 7BCEWDM3613T-5
Quick Summary
The ABB washdown motor CEWDM3613T-5 delivers rugged, hygienic drive for washdown environments in food processing and packaging. Execution downtime and corrosion risk in wet plants are common pains that erode productivity and maintenance budgets. These motors carry CSA, UR, and CSA EEV approvals, underscoring safety and compliance across key markets. With IE3 premium efficiency and TEFC construction, you gain lower energy costs and longer service life, while a ready-to-ship profile helps accelerate project timelines. This combination supports operational reliability and total-cost-of-ownership improvements for capital equipment in harsh, washdown environments.
Product Information
Extended Description
7BCEWDM3613T-5 ABB: Washdown Motor 5 Hp 575 V (CEWDM3613T-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,3450RPM,3PH,60HZ,184TC,3630M,TE
Ambient Temperature
40 °C
Bearing
6206 | Ball
Bearing NDE
6205 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEWDM3613T-5
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
A
Dimension Diagram
36LYK190: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
CEWDM3613T-5
Gross Volume
5274.135 in³
Gross Weight
70 lb
Horsepower Rating UL/CSA
5.000 Hp
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
F
Invoice Description
5HP,3450RPM,3PH,60HZ,184TC,3630M,TEFC,F1
Made To Order
No
Medium Description
White Washdown, 5 HP, 3600 RPM, Frame Size 184Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 575 V, 60 Hz (CEWDM3613T-5)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
91 %
Product Name
White Washdown
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
70 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
4.7 A
Rated Efficiency
88.50 %
Rated Speed
3450 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.13 in
Short Description
5 HP, 3600 RPM, Frame Size 184Tc, C-Face, 3 PH, TEFC, 575 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
575 V
Feature TEFC enclosure ensures moisture and particulate protection, reducing corrosion risk and maintenance intervals. Business Impact Lower maintenance costs and longer mean time between failures in wet environments. Application Suitable for conveyors, pumps, and mixers in food & beverage, pharmaceutical, and packaging lines where frequent washdowns occur. Feature 5 HP, 575 V, 3-phase, 60 Hz rating aligned with common industrial standards, enabling straightforward integration with existing plant power and drive systems. Business Impact Simplified electrical design and robust performance with minimal voltage mismatch. Application Drops into standard 184TC frame bases and C-face mounting for quick retrofit in legacy lines.Feature 184TC frame, foot-mounted with horizontal orientation, Drive End Flange Type C-Face. Business Impact Improves mechanical compatibility and retrofitting ease, reducing installation risk. Application Fits common baseplates and adapter kits across OEM lines.Feature IE3 Premium Efficiency and 91% power factor. Business Impact Lower energy consumption and improved electrical efficiency, contributing to reduced operating costs. Application Beneficial for continuous-duty washdown applications with high duty cycles.Feature 60 Hz operation, 3450 r/min nominal speed, 4.7 A rated current, 1.15 service factor. Business Impact Delivers reliable performance with headroom for startup surges and belt-driven loads. Application Suitable for pumps, fans, and conveyors in nonstop processing lines.Feature CSA, UR, and CSA EEV certifications. Business Impact Certifications support regulatory compliance and customer qualification processes, reducing procurement risk. Application Useful in regulated industries and multinational facilities with strict safety requirements.Feature 70 lb product weight and 1.13 in shaft diameter. Business Impact Manageable handling and alignment during installation; shaft compatibility with standard couplings. Application Supports straightforward replacement in existing installations without bespoke parts.
Get a Quick Quote for a ABB 7BCEWDM3613T-5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEWDM3613T-5?
Enquire Now
FAQs
Plan horizontal, foot-mounted or C-face mounting with the 184TC frame. Ensure a direct-on-line 575 V three-phase supply, space for the 1.13 in shaft, and compatibility with TEFC enclosure. Verify 60 Hz operation and that the drive end flange aligns with existing bases or adapters to minimize alignment issues during retrofit.
The 184TC frame supports standard bases and adapters, with a C-face drive end flange for easy coupling to gearboxes or pulleys. Horizontal mounting and foot mounting options simplify installation in existing lines. Ensure shaft diameter, coupling bore, and mounting hole patterns match your current equipment to avoid costly rework.
CSA, UR, and CSA EEV approvals cover electrical and safety compliance for industrial motors, easing cross-border procurement and system approvals. These certifications help meet stringent safety standards in food processing, packaging, and regulated facilities, reducing the risk of compliance-related delays in multi-site deployments.
Warranty terms require the product to be returned if a warranty issue arises, and standard maintenance should follow manufacturer guidelines for TEFC motors. Given the washdown environment, regular inspections of bearings (6206) and seals, plus periodic V-belt or coupling checks, help preserve efficiency and prevent unplanned downtime.
Expected ROI derives from IE3 premium efficiency reducing operating costs, 3-phase 575 V compatibility for energy optimization, and a robust TEFC enclosure for harsh washdown environments. Coupled with 0-day lead times and stocked warehouses, deployment timelines shorten, accelerating plant uptime and reducing total cost of ownership.
