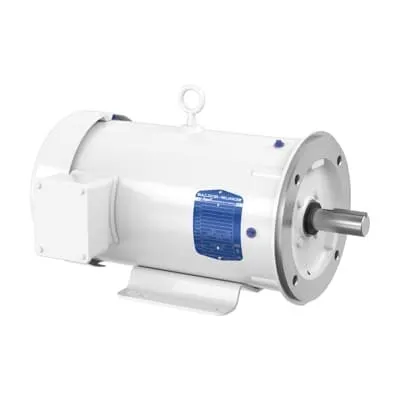

ABB CEWDM3616T Washdown Motor - TEFC
Part Number: 7BCEWDM3616T
Quick Summary
Washdown motors like the ABB CEWDM3616T provide reliable, sanitary drive for food processing and pharmaceutical lines. Operators struggle with moisture, corrosion, and unplanned downtime in washdown zones. Certified CSA, CSA EEV, and UR approvals, plus a TEFC enclosure and NEMA alignment, support safe, compliant operation. Designed for continuous operation, it offers 60 Hz performance at a steady 3450 rpm with a service factor of 1.15. Stocked at distributed warehouses and backed by 'For life' lubrication, this motor reduces downtime, lowers maintenance costs, and simplifies procurement for sanitary manufacturing lines. The design supports easy installation with compatible mounting options and industry-standard drive interfaces, enabling faster commissioning.
Product Information
Extended Description
7BCEWDM3616T ABB: Washdown Motor 7.5 Hp 230 V (CEWDM3616T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5HP,3450RPM,3PH,60HZ,184TC,3646M,
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6206 | Ball
Bearing NDE
6205 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEWDM3616T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
A
Dimension Diagram
36LYF317: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
CEWDM3616T
Gross Volume
7192.91 inÂł
Gross Weight
101 lb
Horsepower Rating UL/CSA
7.500 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
7.5HP,3450RPM,3PH,60HZ,184TC,3646M,TEFC
Lubrication
For life
Made To Order
No
Medium Description
White Washdown, 7.5 HP, 3600 RPM, Frame Size 184Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CEWDM3616T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
7.5 Hp
Power Factor
93 %
Product Name
White Washdown
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
101 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
16.8 A | 8.4 A
Rated Efficiency
89.50 %
Rated Speed
3450 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.13 in
Short Description
7.5 HP, 3600 RPM, Frame Size 184Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101115
Voltage Code
L
Voltage Rating
230 V | 460 V
The 7.5 HP, 230/460 V, three-phase configuration provides robust torque for conveyors, pumps, and mixers in sanitary lines. The motor runs at 60 Hz with a nominal speed of 3450 r/min, delivering reliable acceleration and precise control across varying loads, which supports scalable system design for mid-size processing equipment. The TEFC enclosure protects windings from moisture, steam, and washdown spray, reducing corrosion risk and extending service life in hygienic environments. Frame size 184TC with a C-face drive end flange and a foot-mounted base simplifies installation and ensures precise alignment with existing equipment, minimizing commissioning time. Lubrication designed for life eliminates routine re-lubrication, while 6206 and 6205 ball bearings deliver sustained performance under continuous-duty operation. Efficiency of 89.50% and a service factor of 1.15 bolster energy savings and startup performance, limiting peak electrical demand. Certifications—CSA, CSA EEV, UR—and NEMA design alignment reinforce cross-market applicability, while 230/460 V and 3-phase operation support broad integration. Stocking at multiple warehouses, including locations in China and the US, with zero-day lead time, minimizes downtime for critical lines and accelerates procurement during project windows.
Get a Quick Quote for a ABB 7BCEWDM3616T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEWDM3616T?
Enquire Now
FAQs
Yes. The CEWDM3616T is a dual-voltage 3-phase motor rated for 230 V and 460 V operation at 60 Hz. It features a 184TC frame, TEFC enclosure, and C-face drive end to fit standard equipment. This versatility simplifies global installations and reduces the need for multiple SKUs while maintaining consistent performance across power configurations.
The motor delivers an efficiency of 89.50% and a service factor of 1.15, supporting energy-conscious operation and resilience under startup surges. With a 7.5 HP rating and 3450 rpm nominal speed, it maintains stable performance across typical sanitary-line loads, helping to lower energy costs while preserving line uptime and drive smoothness.
This washdown motor is ideal for food & beverage processing, pharmaceutical equipment, and sanitary packaging lines requiring cleanability and moisture resistance. Its TEFC protection, white washdown branding, and 60 Hz, 3-phase operation enable reliable performance in high-humidity environments, while its mounting options and quick availability support rapid line integration and uptime in demanding production environments.
The CEWDM3616T carries CSA, CSA EEV, and UR certifications, along with NEMA design alignment. These approvals support compliance across North American markets and global applications, ensuring safe operation in regulated environments. Coupled with a TEFC enclosure and a sanitary-grade construction, the motor remains suitable for regulated industries and high-hygiene applications.
Lead time is listed as 0 day, with stock maintained at multiple warehouses including locations in China and the United States (e.g., Alabama, Alaska). This distribution minimizes downtime and accelerates procurement for urgent projects. Lubrication is designed for life, reducing maintenance frequency, while bearings (6206, 6205) support long, reliable service with minimal intervention.
