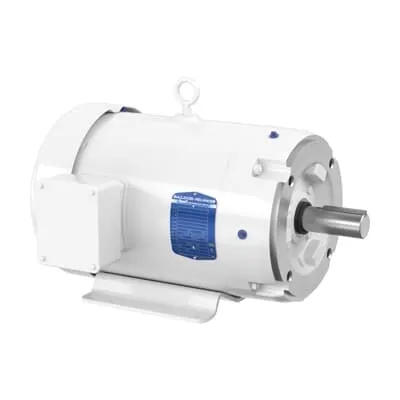

ABB CEWDM3702T Washdown Motor 2HP 865RPM TEFC
Part Number: 7BCEWDM3702T
Quick Summary
ABB CEWDM3702T washdown motor delivers reliable, high-performance operation for food, beverage, and pharma processing lines. Maintenance teams often struggle with corrosion, downtime, and costly repairs when selecting motors for damp, sanitize-prone environments. This model carries CSA, CSA EEV, and UL UR safety certifications, plus NEMA design and premium efficiency, ensuring compliance and long-term reliability in harsh washdown conditions. Built to operate on 60 Hz, 230/460 V with a TEFC enclosure and C-face mounting, it integrates smoothly with existing equipment. The result is lower total cost of ownership, consistent performance, and simplified procurement for industrial washdown applications.
Product Information
Extended Description
7BCEWDM3702T ABB: Washdown Motor 2 Hp 230 V (CEWDM3702T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,865RPM,3PH,60HZ,213TC,TEFC,F1
Ambient Temperature
40 °C
Bearing
6307 | Ball
Bearing NDE
6206 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEWDM3702T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
37LYE599: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
213
Frequency (f)
60 Hz
Global Commercial Alias
CEWDM3702T
Gross Volume
7192.91 in³
Gross Weight
111 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
2HP,865RPM,3PH,60HZ,213TC,TEFC,F1
Made To Order
No
Medium Description
White Washdown, 2 HP, 900 RPM, Frame Size 213Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CEWDM3702T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
213TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
8P
Number of Poles (High)
8
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
61 %
Product Name
White Washdown
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
111 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
7 A | 3.5 A
Rated Efficiency
85.50 %
Rated Speed
865 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.38 in
Short Description
2 HP, 900 RPM, Frame Size 213Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
900 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The TEFC enclosure provides a robust seal against water spray and cleaning agents, reducing corrosion risk and extending motor life in sanitary environments. This protection translates to lower maintenance costs and reduced downtime on production lines such as food processing or pharmaceutical packaging. Feature → Application compatibility → Benefit: 213TC frame with foot-mounted or C-face mounting aligns with standard plant equipment, enabling quick upgrades without costly reconfiguration. This compatibility supports faster installation on conveyors and mixers, improving time-to-line readiness. Feature → 2 HP, 865 r/min, 3-phase → Efficiency and performance: Premium efficiency at 60 Hz minimizes energy usage and heat generation, lowering utility bills and cooling needs in continuous-duty operations. This is particularly valuable for long-running mixers, pumps, and material-handling equipment in high-demand environments. Feature → 230/460 V, 60 Hz, 3-phase → Grid compatibility → Reliability: Direct On Line starting and 8-pole design deliver reliable startup with minimal voltage stress, suited for factory floors with shared power supplies. Feature → Certifications and standards → Compliance and risk reduction: CSA, CSA EEV, and UL UR recognition with NEMA design code B ensure regulatory alignment and safe operation across multiple regions, supporting certified installations in food, beverage, and healthcare sectors. Feature → Stocking and support → Operational continuity: 0-day lead time in several warehouses and listed stock at multiple locations reduce surge purchases and downtime, enabling quick replacement during production peaks. Long-tail keywords integrated: washdown motor 2 HP, TEFC washdown motor, 230/460 V three-phase motor, 213TC frame motor, C-face mounting motor, premium efficiency motor, NEMA design B motor, 60 Hz motor, food processing motor, pharma equipment motor.
Get a Quick Quote for a ABB 7BCEWDM3702T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEWDM3702T?
Enquire Now
FAQs
Install as a foot-mounted or C-face mounted unit using the 213TC frame. Ensure 230/460 V supply and 60 Hz service, with direct on line starting for simple integration. Verify axis alignment and shaft engagement (1.38 in diameter) for smooth operation and minimal misalignment risk.
Key specs include 2 HP output, 865 r/min, three-phase power, 230/460 V, 60 Hz, TEFC enclosure, 213TC frame, 1.38 in shaft, NEMA design B, and insulation class F. It is a white washdown, 3-phase motor designed for continuous duty.
Yes. The TEFC enclosure and washdown-rated design, along with appropriate certifications (CSA, CSA EEV, UR) and premium efficiency, make it well suited for sanitize-prone environments such as food processing and pharmaceutical packaging lines while meeting regulatory expectations.
The motor carries CSA, CSA EEV, and UL UR recognitions, aligning with safety and electrical compliance standards across regions. This helps ensure safe installation, reduced risk of non-compliance, and smoother procurement for regulated industries.
Stock is available at multiple warehouses with 0-day lead times listed, aiding quick replacements during peak demand. Locations include US-based and international warehouses, improving availability for global manufacturing operations.
