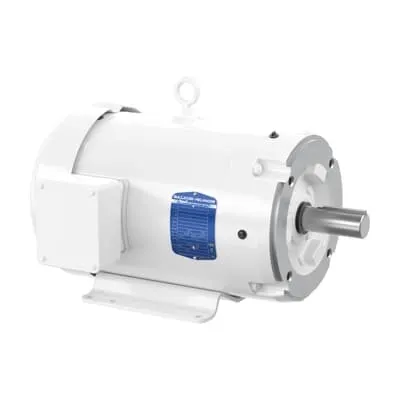

ABB 7BCEWDM3711T-5 Washdown Motor - 575 V IE3 TEFC
Part Number: 7BCEWDM3711T-5
Quick Summary
ABB 7BCEWDM3711T-5 Washdown Motor delivers reliable, sanitary motor performance for food and beverage processing. Operators often struggle with corrosion, moisture intrusion, and unplanned downtime during washdowns; this motor’s TEFC enclosure and frame design resist washdown cleaning cycles and harsh environments, helping keep lines running. Certified for CSA, CSA EEV, and UR, it meets essential US standards while delivering consistent performance across demanding facilities. With a 10 HP, 575 V three‑phase rating and premium IE3 efficiency, it lowers energy costs without sacrificing torque. The 215TC frame, C‑face mounting, and rigid base simplify installation and service, accelerating line upgrades and reducing total cost of ownership.
Product Information
Extended Description
7BCEWDM3711T-5 ABB: Washdown Motor 10 Hp 575 V (CEWDM3711T-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10HP,3490RPM,3PH,60HZ,215TC,3728M,T
Ambient Temperature
40 °C
Bearing
6307, Sealed Bearing
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEWDM3711T-5
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
C-Face
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
Undefined
Global Commercial Alias
CEWDM3711T-5
Gross Weight
122 lb
Insulation Class
F
Invoice Description
10HP,3490RPM,3PH,60HZ,215TC,3728M,TEFC,F
Made To Order
No
Medium Description
Frame Size 215Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, (CEWDM3711T-5)
Minimum Order Quantity
1 piece
Motor Base Type
Rigid
Motor Frame Size
215TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
10 Hp
Power Factor
87 %
Product Name
WD - White
Product Net Depth / Length
0 in
Product Net Height
0 in
Product Net Weight
122 lb
Product Net Width
0 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
9.5 A
Rated Efficiency
90.20 %
Rated Speed
3490 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.38 in
Short Description
Frame Size 215Tc, C-Face, 3 PH, TEFC,
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
Voltage Rating
575 V
This motor pairs a TEFC enclosure with a 575 V three‑phase supply to withstand washdown cycles and harsh cleaning chemistries, reducing corrosion risk and downtime. With a 10 HP output and IE3 premium efficiency, it delivers steady torque while trimming energy costs in sanitary lines. Its robust steel frame and factory‑applied balancing support reliable operation in food, beverage, and pharmaceutical processing environments. Design choices such as a two‑pole, 3490 r/min rating and Direct On Line starting simplify integration with standard process drives and conveyors. The motor’s high starting torque supports rugged line loads, while the rigid base and C‑face mounting improve alignment and reduce vibration, extending belt life and maintenance intervals in busy manufacturing settings. Frame size 215TC combined with a C‑face flange enables straightforward retrofits and new installations on common layouts. The 1.38 in shaft diameter and sealed 6307 bearings contribute to long service life in washdown environments, while the 60 Hz operation aligns with typical plant power systems and reduces retrofit risk. Certification and compliance are built in; CSA, CSA EEV, and UR recognition support safe operation in U.S. facilities. The product’s documented operating parameters—575 V, 9.5 A rated current, and 3600 r/min synchronous speed—support accurate electrical design, protection coordination, and predictable performance under varying loads. With stock available at defined warehouses and zero lead time stated, procurement teams can accelerate project timelines. The 10 HP rating, energy savings from IE3 efficiency, and minimal maintenance requirements collectively lower total cost of ownership while delivering consistent washdown reliability.
Get a Quick Quote for a ABB 7BCEWDM3711T-5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEWDM3711T-5?
Enquire Now
FAQs
This motor uses a 215TC frame with C‑Face mounting and horizontal orientation, which simplifies retrofit on existing conveyors and process lines. Ensure a level rigid base, proper shaft alignment, and compatible coupling or belt drive. With a 1.38 in shaft diameter and sealed bearings, verify seal compatibility with your washdown cleaners and wash cycles.
Yes. The motor is rated for 575 V three‑phase operation at 60 Hz, delivering 10 HP with IE3 efficiency. It supports Direct On Line starting for straightforward integration with standard plant drives, while the TEFC enclosure provides protection during frequent washdowns common in food and beverage facilities.
The unit carries CSA, CSA EEV, and UR certifications, confirming compliance with key North American electrical safety and efficiency requirements. It also adheres to NEMA design principles with a TEFC enclosure and a 2P, 215TC frame, aligning with common industry standards for sanitary, high‑duty environments.
Key specs include 10 HP output, 575 V, 3‑phase, 60 Hz, 2 poles, 3490 r/min, IE3 efficiency, and a rated current of 9.5 A. The motor’s Direct On Line starting and 215TC frame with C‑face mounting support reliable conveyor control, while the sealed bearing and robust frame reduce maintenance and downtime.
Maintenance is simplified by the sealed 6307 bearing system and steel frame, designed for washdown reliability. In use, ensure regular inspection of seals and mounting integrity. Warranty terms specify that product under warranty must be returned to the vendor if issues arise, with the stock readily available from multiple warehouses for quick replacement if needed.
