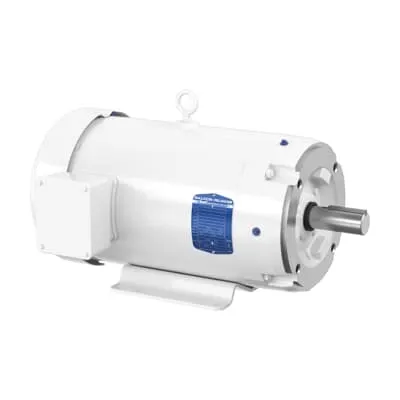

ABB 7BCEWDM3713T Washdown Motor - 15HP 230/460V TEFC
Part Number: 7BCEWDM3713T
Quick Summary
ABB Washdown Motor 15 HP drives reliable, wash-down capable motion in food and packaging lines. Maintenance teams often struggle with corrosion resistance and downtime in wet environments. This model meets stringent CSA, UR, and CSA EEV certifications, while delivering 60 Hz performance. With a rugged 215TC frame, TEFC enclosure, and 15 HP power, it aligns with cost-efficient, scalable automation strategies. Its 230/460 V, 60 Hz operation supports flexible integration across global lines, reducing stocking complexity. Designed for continuous duty and life-long lubrication, it helps lower total cost of ownership while maintaining peak efficiency. In tough washdown settings, you gain reliability, uptime, and regulatory peace of mind.
Product Information
Extended Description
7BCEWDM3713T ABB: Washdown Motor 15 Hp 230 V (CEWDM3713T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
15HP,3500RPM,3PH,60HZ,215TC,3752M,T
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6307 | Ball
Bearing NDE
6206 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEWDM3713T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
A
Dimension Diagram
37LYH886: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
CEWDM3713T
Gross Volume
7561.383 in³
Gross Weight
174 lb
Horsepower Rating UL/CSA
15.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
15HP,3500RPM,3PH,60HZ,215TC,3752M,TEFC,F
Lubrication
For life
Made To Order
No
Medium Description
White Washdown, 15 HP, 3600 RPM, Frame Size 215Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CEWDM3713T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
15 Hp
Power Factor
89 %
Product Name
White Washdown
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
174 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
34 A | 17 A
Rated Efficiency
91 %
Rated Speed
3500 r/min
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.38 in
Short Description
15 HP, 3600 RPM, Frame Size 215Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101115
Voltage Code
J
Voltage Rating
230 V | 460 V
Feature TEFC washdown design keeps water, detergents, and wash cycles from penetrating the windings, extending motor life in hygienic environments. Business impact: lower maintenance costs and fewer unscheduled outages. Applications: food processing, dairy, pharmaceutical packaging lines for conveyors and pumps. Feature 215TC frame with C-Face drive end flange and foot-mounted base simplifies installation and retrofits with existing gear or belt drives. Business impact: reduces installation time and spare parts because standard frame is widely compatible. Applications: horizontal mounting, belt conveyors, and standard drive adapters. Feature Three-phase operation at 60 Hz and dual voltage 230/460 V; 15 HP rating yields strong start-up torque and reliable speed under load. Business impact: supports direct-on-line starts and smooth acceleration, minimizing mechanical stress. Applications: conveyors, mixers, and fans in packaging lines. Feature Premium efficiency with Insulation Class F and service factor 1.15 delivers energy savings and robust transient performance. Business impact: lower energy costs and improved electrical reliability during peak loads. Applications: continuous production environments where uptime matters. Feature RoHS compliant certifications (CSA, UR, CSA EEV) plus NEMA design A help with regulatory alignment and cross-border deployment. Business impact: streamlined compliance workflows and global sourcing. Applications: multinational facilities requiring standard electrical design practices. Feature Stocked at multiple warehouses with 0 day lead time supports rapid project timelines and minimal downtime during procurement. Business impact: faster installations and reduced capital lock-up. Applications: capital equipment upgrades in food, beverage, and pharma lines.
Get a Quick Quote for a ABB 7BCEWDM3713T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEWDM3713T?
Enquire Now
FAQs
The CEWDM3713T uses a 215TC frame with C-Face drive end flange and is configured for horizontal, foot-mounted installation. Use a standard base and compatible mounting adapters to align with a belt or gear drive. Shaft diameter is 1.38 inches, and the motor supports 230/460 V, 3-phase power at 60 Hz. This compatibility minimizes retrofits and accelerates commissioning in new or upgrade projects.
This is a 3-phase, 15 HP motor designed for 60 Hz operation, with dual voltage 230 V and 460 V. It features a 2-pole design, a rated speed around 3500 r/min, and a service factor of 1.15. The rated current is specified as 34 A or 17 A depending on operating conditions, with a RoHS-compliant insulation class F and TEFC enclosure for reliability in demanding environments.
Yes. The motor is marketed as a White Washdown unit with TEFC enclosure designed to withstand washdown cycles, detergents, and water exposure. It carries RoHS compliance and industry certifications, which support use in regulated food and beverage facilities. With hot-swap assembly options and 40 °C ambient tolerance, it maintains performance in typical hygienic production rooms.
The CEWDM3713T carries CSA, UR, and CSA EEV certifications, along with NEMA design alignment. These certifications facilitate global regulatory compliance, simplify cross-border procurement, and support safe operation in certified facilities. Customers can leverage these approvals to meet internal standards, supplier qualification requirements, and industry regulations during audits.
The motor is stocked at multiple warehouses with a stated lead time of zero days in supplier information, enabling rapid fulfillment. Stock locations include Menden, Germany; China; Alabama and Alaska in the United States. This distribution supports fast deployment for capital projects, upgrades, or maintenance outages without extended waiting periods.
