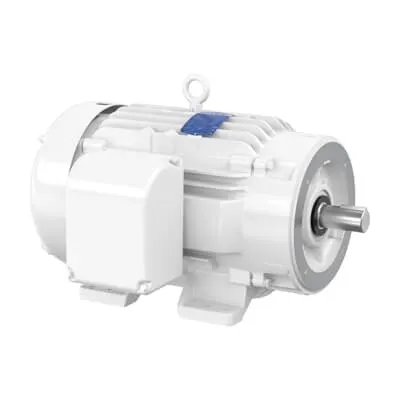

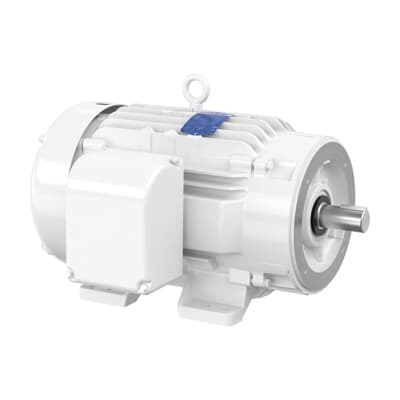

ABB 7BCEWDM4108T Washdown Motor - 30 HP 230V IP55 TEFC
Part Number: 7BCEWDM4108T
Quick Summary
Washdown motor solutions from ABB deliver reliable 30 HP power for food processing and packaging lines. In washdown environments, maintenance downtime and corrosion risk are persistent pains that erode productivity. This model features IP55 protection and a TEFC enclosure, plus trusted approvals such as CSA, CSA EEV, and UR, giving you compliance confidence in regulated facilities. With 3-phase 60 Hz operation at 230/460 V, it fits standard industrial power architectures and simplifies electrical design. The combination of durable stainless-steel-like performance, high efficiency, and precise mounting options translates into longer service intervals and lower operating costs, while ensuring consistent throughput in challenging washdown applications.
Product Information
Extended Description
7BCEWDM4108T ABB: Washdown Motor 30 Hp 230 V (CEWDM4108T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
30HP,3520RPM,3PH,60HZ,286TSC,TEFC,F
Ambient Temperature
40 °C
Bearing
6311
Bearing NDE
6208
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEWDM4108T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Drive End Flange Type
C-Face
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
286
Frequency (f)
60 Hz
Global Commercial Alias
CEWDM4108T
Gross Volume
14448.906 inÂł
Gross Weight
135.624 kg
IP Class
IP55
Insulation Class
F
Invoice Description
30HP,3520RPM,3PH,60HZ,286TSC,TEFC,F1
Made To Order
No
Maximum Speed
5400 r/min
Medium Description
Stainless Steel, 30 HP, 3600 RPM, Frame Size 286Tsc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CEWDM4108T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
286TSC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
30 Hp
Power Factor
89 %
Product Name
Stainless Steel
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
135.624 kg
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
68 A | 34 A
Rated Efficiency
91.70 %
Rated Speed
3520 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
1.63 in
Short Description
30 HP, 3600 RPM, Frame Size 286Tsc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
Voltage Rating
230 V | 460 V
The CEWDM4108T offers a robust TEFC (Totally Enclosed Fan C cooled) enclosure paired with an IP55 rating to withstand high-pressure washdown and corrosive environments, reducing maintenance and downtime while protecting internal components. By delivering 30 HP at 3520 r/min with 3-phase 60 Hz operation and dual voltage options (230 V / 460 V), this motor enables seamless integration into existing lines and drives down installation complexity and wiring costs. The 286TSC frame size with a C-Face drive end flange means straightforward mounting and compatibility with common belt and pulley assemblies, while foot-mount base type and horizontal orientation simplify retrofits on conveyors and processing equipment. High efficiency (91.70%) and a favorable power factor (89%) translate to lower energy usage and operating costs over the motor’s life. Certifications (CSA, CSA EEV, UR) provide regulatory alignment for regulated industries, and stock availability across multiple warehouses supports fast procurement and project scheduling. This model is well-suited for food and beverage, pharmaceutical, and packaging applications that demand reliability under tough washdown conditions, with easy maintenance and quick spare-part access.
Get a Quick Quote for a ABB 7BCEWDM4108T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEWDM4108T?
Enquire Now
FAQs
The CEWDM4108T is designed for Foot Mounted installation with a horizontal orientation and F1 mounting position. It uses a C-Face Drive End Flange and a 286TSC frame, which supports straightforward alignment with standard belt or pulley systems. This combination simplifies retrofits on conveyors and processing equipment while preserving existing space and footprint constraints.
Yes. The motor features an IP55 protection rating and a TEFC enclosure, specifically chosen for harsh washdown environments. In addition, its stainless-steel-like description and robust build help resist corrosion and ingress from water jets, making it suitable for food, beverage, pharmaceutical, and other hygiene-critical applications.
This ABB motor carries CSA, CSA EEV, and UR certifications, signaling compliance with recognized safety and reliability standards. These approvals support regulatory acceptance in regulated industries and facilitate qualification during audits and supplier qualification processes.
The motor provides 30 HP with a rated speed of 3520 r/min, operating at 60 Hz with 230 V or 460 V three-phase power. Rated current is 68 A (line) or 34 A (per phase in a balanced setup). It delivers a rated efficiency of 91.70% and a power factor of 89%, contributing to lower energy costs and improved power quality on the line.
Stock is available across multiple warehouses (including EGAUT001EXPU, GBINS001EXPU, SGIND004EXPU, USABB014EXPU). Lead time is listed as 0 day for immediate availability, enabling fast procurement and project scheduling. This makes it suitable for urgent upgrades, line conversions, or new equipment deployments without long wait times.
