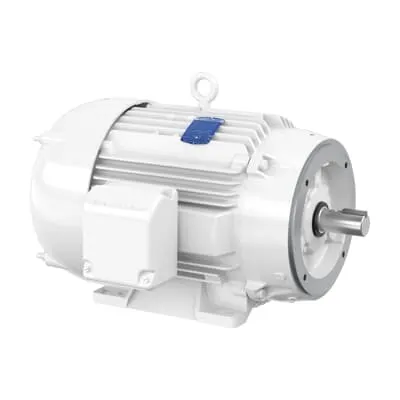

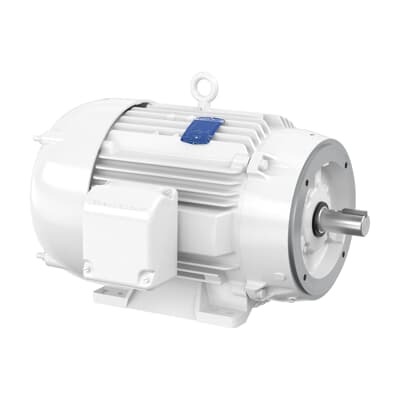

ABB 7BCEWDM4114T Washdown Motor - 50 HP TEFC IP55
Part Number: 7BCEWDM4114T
Quick Summary
Washdown Motor ABB 7BCEWDM4114T delivers reliable, high-performance drive for sanitary manufacturing lines. Facilities often struggle with corrosion, frequent washdowns, and downtime when selecting motors for harsh washdown zones. Key certifications and standards include IP55 enclosure protection, CSA/UR/EEV certifications, and NEMA-based efficiency targets, all of which help ensure compliance and durability in demanding environments. This motor’s 50 HP rating, 3540 rpm speed, and 230/460 V three-phase capability align with general industry requirements while offering energy efficiency and robust construction. By combining rugged protection with predictable performance, it supports predictable maintenance planning, reduced spare-part inventory, and improved overall equipment effectiveness in process- and hygiene-critical applications.
Product Information
Extended Description
7BCEWDM4114T ABB: Washdown Motor 50 Hp 230 V (CEWDM4114T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
50HP,3540RPM,3PH,60HZ,326TSC,TEFC,F
Ambient Temperature
40 °C
Bearing
6312
Bearing NDE
6311
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEWDM4114T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Drive End Flange Type
C-Face
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
326
Frequency (f)
60 Hz
Global Commercial Alias
CEWDM4114T
Gross Volume
18748.226 in³
Gross Weight
575 lb
IP Class
IP55
Insulation Class
F
Invoice Description
50HP,3540RPM,3PH,60HZ,326TSC,TEFC,F1
Made To Order
No
Maximum Speed
5400 r/min
Medium Description
Stainless Steel, 50 HP, 3600 RPM, Frame Size 326Tsc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CEWDM4114T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
326TSC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
50 Hp
Power Factor
90 %
Product Name
Stainless Steel
Product Net Depth / Length
33.75 in
Product Net Height
21.625 in
Product Net Weight
575 lb
Product Net Width
25.688 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
112 A | 56 A
Rated Efficiency
93 %
Rated Speed
3540 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
1.88 in
Short Description
50 HP, 3600 RPM, Frame Size 326Tsc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
Voltage Rating
230 V | 460 V
Feature: IP55 TEFC enclosure and robust frame provide washdown-ready protection. Benefit: Minimized ingress of dust and water, extended motor life, and lower corrosion-related maintenance costs. Application: Food, beverage, and pharmaceutical processing lines where frequent cleaning is required. Feature: 326TSC frame, foot-mounted, horizontal mounting with F1 position and C-face drive end. Benefit: Easy retrofits and straightforward mechanical integration with existing belts, gearboxes, and conveyors; reduces installation time and commissioning risk. Application: Global production lines needing compatible mounting and straightforward alignment. Feature: 50 HP, 3540 r/min, 3-phase, 230/460 V, 60 Hz, TEFC. Benefit: High torque at start, reliable operation across common industrial power standards, with flexible voltage options for multi-site deployments. Application: Variable-speed drives and line-start across mixed-voltage facilities. Feature: Premium Efficiency (NEMA 12-12) and 93% rated efficiency. Benefit: Lower energy consumption, reduced operating costs, and improved sustainability metrics for continuous-duty duty cycles. Application: Continuous-process equipment where energy costs are a concern. Feature: Direct On Line starting and 1.00 service factor. Benefit: Simple start-up with minimal control hardware, leading to lower maintenance costs and faster line-start readiness. Application: Critical conveyors and mixers requiring rapid and reliable ignition. Feature: Shaft diameter 1.88 in and 6, to 326TSC frame compatibility. Benefit: Compatibility with standard couplings and drivetrain components, minimizing redesign in upgrades. Application: Retrofits and new installations in established facilities. Feature: IP55, NEMA standards alignment, and multiple global stocking locations. Benefit: Compliance with hygiene and safety expectations, plus reduced lead times for critical spares and service. Application: Global manufacturing operations seeking fast maintenance support and regulatory alignment.
Get a Quick Quote for a ABB 7BCEWDM4114T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEWDM4114T?
Enquire Now
FAQs
This model is designed as a foot-mounted unit with horizontal mounting orientation and a C-face drive end, using the 326TSC frame for straightforward integration into conveyors and gearboxes.
The motor supports 230 V and 460 V in a three-phase configuration at 60 Hz, with a rated current of approximately 112 A / 56 A depending on voltage and load, and it uses a TEFC enclosure.
Yes. It features an IP55 enclosure for dust and water protection, a TEFC design, and is intended for environments where frequent washdowns and cleaning are required, reducing corrosion-related downtime.
Key certifications include CSA, CSA EEV, and UR, with NEMA-based efficiency expectations. These standards support compliance in regulated industries and across U.S. and international plants.
The motor’s premium efficiency (about 93%) reduces energy costs over time, while its robust IP55-tefc build and direct-on-line start can lower maintenance, spare parts, and startup downtime, delivering faster payback in continuous-duty applications.
