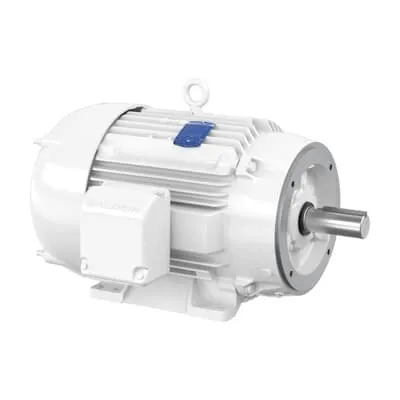

ABB 7BCEWDM4117T Washdown Motor - 30 HP, TEFC IP55
Part Number: 7BCEWDM4117T
Quick Summary
ABB washdown motor 30 HP delivers rugged, hygienic drive for food-processing washdown lines. In demanding plants, frequent sanitation cycles and corrosion risk threaten uptime and life-cycle costs. Certified CSA, UR, and CSA EEV, plus IP55 TEFC enclosure and NEMA design, support regulatory compliance and sanitation. With dual-voltage 230/460 V and 60 Hz, a 326TC frame, and 1180 RPM, installation remains straightforward and scalable. This combination reduces maintenance burden and supports reliable production in hygienic applications. From a business perspective, lower energy use and predictable service cycles translate to measurable ROI over the motor's lifecycle. Its compatibility with standard drive systems helps shorten commissioning and accelerates time-to-production.
Product Information
Extended Description
7BCEWDM4117T ABB: Washdown Motor 30 Hp 230 V (CEWDM4117T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
30HP,1180RPM,3PH,60HZ,326TC,TEFC,F1
Ambient Temperature
40 °C
Bearing
6312
Bearing NDE
6311
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEWDM4117T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Drive End Flange Type
C-Face
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
326
Frequency (f)
60 Hz
Global Commercial Alias
CEWDM4117T
Gross Volume
18748.226 in³
Gross Weight
640 lb
IP Class
IP55
Insulation Class
F
Invoice Description
30HP,1180RPM,3PH,60HZ,326TC,TEFC,F1
Made To Order
No
Maximum Speed
1800 r/min
Medium Description
Stainless Steel, 30 HP, 1200 RPM, Frame Size 326Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CEWDM4117T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
326TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
30 Hp
Power Factor
78 %
Product Name
Stainless Steel
Product Net Depth / Length
33.75 in
Product Net Height
21.625 in
Product Net Weight
640 lb
Product Net Width
25.688 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
78 A | 39 A
Rated Efficiency
93 %
Rated Speed
1180 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
2.13 in
Short Description
30 HP, 1200 RPM, Frame Size 326Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Type of Duty
Continuous
Voltage Rating
230 V | 460 V
Feature: IP55-rated TEFC washdown enclosure protects windings from water and sanitizing chemicals. Business impact: reduces corrosion-related downtime and extends maintenance intervals, delivering higher line availability. Application: ideal for food and beverage processing lines, kitchens, dairy equipment, and pharmaceutical packaging where frequent washdowns occur. Feature: 326TC frame with foot-mounted, horizontal F1 mounting and C-face drive end. Business impact: simplifies retrofits and alignment with standard gearboxes and couplings, cutting installation time and error. Application: suitable for conveyor drives, mixers, and pump systems requiring precise mounting in compact footprints. Feature: 60 Hz, 3-phase operation with dual voltage 230/460 V and direct-on-line starting, rated at 30 HP and 1180 rpm. Business impact: supports flexible electrical supply, lowering wiring costs and spare parts needs, while Direct On Line start reduces soft-start equipment. Application: common in plants where motor speed control is straightforward and compatible with existing drives. Feature: Premium efficiency, insulation class F, IP55 protection, and NEMA design code A. Business impact: lowers energy consumption, improves thermal performance, and ensures compliance with industry standards. Application: long-running continuous duty in demanding environments like food processing and packaging lines. Feature: Availability and service with stock at multiple warehouses and zero-day lead times; warranty terms support quick replacements. Business impact: minimizes downtime when sourcing and reduces risk of production stoppages. Application: global plants needing rapid replacement parts and predictable maintenance cycles. Feature: Robust mechanicals—bearing 6312/6311, shaft diameter 2.13 in, weight 640 lb; direct, reliable coupling to drives. Business impact: supports durable operation in harsh washdown conditions and easy alignment with standard drive components. Application: conveyors, mixers, and processing equipment requiring robust interfaces.
Get a Quick Quote for a ABB 7BCEWDM4117T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEWDM4117T?
Enquire Now
FAQs
The motor is foot-mounted with a horizontal mounting orientation (F1) and a C-Face drive end, designed to simplify retrofits and align with standard gearboxes and couplings. It fits a 326TC frame and supports direct mounting to typical conveyor, mixer, and pump assemblies, reducing alignment errors and installation time on existing lines.
The unit operates at 230/460 V, 60 Hz, three-phase, with a 30 HP rating and 1180 rpm. It supports direct-on-line starting and draws 78 A at full load or 39 A on the lower voltage, enabling straightforward integration with existing electrical infrastructure and minimizing the need for soft-starters in standard duty operations.
Yes. It features an IP55 TEFC enclosure and corrosion-resistant protection designed for frequent washdowns, along with NEMA design A and insulation class F. These attributes help meet stringent sanitation requirements and maintain reliability in humid, dirty, or chemical-cleaning environments typical of food and beverage processing.
The motor carries CSA, UR, and CSA EEV certifications, reinforcing safety and compliance for North American markets. This combination helps with regulatory approvals in food, pharma, and packaging sectors, reducing vendor risk and streamlining validation during audits and supplier qualification processes.
With Premium Efficiency (93%), robust bearings, and a 30 HP rating, energy costs are reduced over time, while the IP55 TEFC design minimizes sanitation-related maintenance. Coupled with immediate availability from multiple warehouses and a straightforward installation, downtime is reduced and return on investment improves through longer service life and predictable operating costs.
