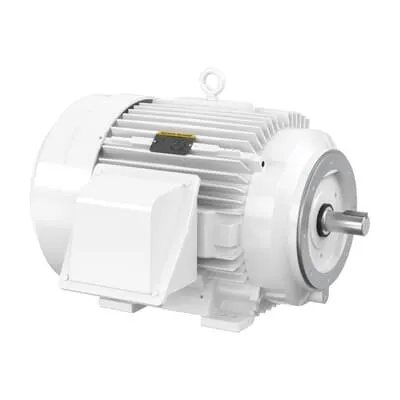

ABB 7BCEWDM4313T Washdown Motor - 75HP, TEFC, IP55
Part Number: 7BCEWDM4313T
Quick Summary
ABB 7BCEWDM4313T Washdown Motor delivers 75 HP for sanitary, high-hygiene applications such as food processing and pharma packaging. This motor is built to help minimize downtime and maintenance in challenging washdown environments while delivering reliable performance. With TEFC enclosure and IP55 protection, it stands up to frequent cleaning and exposure to moisture, dust, and sanitizing agents. The model supports a 60 Hz, 230/460 V, 3‑phase supply and carries certifications aligned with industry standards for safety and reliability. Designed for easy installation and retrofit, it combines robust mechanical design with energy-conscious operation to support lean manufacturing and faster ROI. Secondary keywords include premium efficiency motors and sanitary-duty drive solutions to guide qualified buyers to the right fit.
Product Information
Extended Description
7BCEWDM4313T ABB: Washdown Motor 75 Hp 230 V (CEWDM4313T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
75HP,3555RPM,3PH,60HZ,365TSC,TEFC,F
Ambient Temperature
40 °C
Bearing
65BC03JGG30A, Ball
Bearing NDE
65BC03JGG30A
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEWDM4313T
Certification Agency
CCSA US | CSA EEV
Country of Origin
United States (US)
Customs Tariff Number
85015230
Drive End Flange Type
C-Face
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
365
Frequency (f)
60 Hz
Global Commercial Alias
CEWDM4313T
Gross Volume
33833.008 inÂł
Gross Weight
455.86 kg
IP Class
IP55
Insulation Class
F
Invoice Description
75HP,3555RPM,3PH,60HZ,365TSC,TEFC,F1
Made To Order
No
Medium Description
Stainless Steel, 75 HP, 3600 RPM, Frame Size 365Tsc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CEWDM4313T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
365TSC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
75 Hp
Power Factor
92 %
Product Name
Stainless Steel
Product Net Depth / Length
40.625 in
Product Net Height
25.625 in
Product Net Weight
455.86 kg
Product Net Width
32.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
161 A | 80.7 A
Rated Efficiency
94.50 %
Rated Speed
3555 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.88 in
Short Description
75 HP, 3600 RPM, Frame Size 365Tsc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
Voltage Rating
230 V | 460 V
Feature 1: TEFC enclosure with IP55 rating provides ingress protection suitable for washdown environments, reducing corrosion risk and extending bearing life. Business impact: lower maintenance frequency and longer service life in food processing lines and beverage packaging. Application: conveyors and mixers in sanitary facilities. Feature 2: 75 HP output and rated speed of 3555 r/min enable strong starting torque and consistent performance on heavy-load tasks, supporting line throughput and process stability. Business impact: improved uptime and predictable production schedules. Application: heavy-duty conveying and pumping stages. Feature 3: Dual voltage capability (230 V / 460 V) and 60 Hz operation offer installation flexibility across plants, minimizing spare-part complexity. Business impact: simplified procurement, reduced downtime during upgrades, and broader compatibility with existing drives. Application: multinational facilities with varied electrical infrastructures. Feature 4: NEMA design B, service factor 1.15, and 94.50% efficiency provide reliability and energy savings in continuous-duty applications. Business impact: lower operating costs and improved ROI over the motor’s life. Application: continuous-duty drive systems in manufacturing. Feature 5: 365TSC frame, foot-mounted, and C-face mounting enable straightforward installation and retrofit into standard motor bases and couplings. Business impact: faster commissioning and easier maintenance access. Application: retrofits and new builds in industrial lines. Feature 6: 230/460 V, 3‑phase, 60 Hz with direct-on-line starting reduces control-system complexity and startup energy surge. Business impact: reduced wiring and soft-start requirements, leading to simpler electrical design. Application: line-start conveyors and mixers in sanitary environments. Feature 7: Certification and compliance through CSA EEV, CCSA US, and NEMA standards ensure regulatory alignment for industrial facilities. Business impact: smoother procurement approvals and broader market compatibility. Application: safety-critical installations in regulated industries. Feature 8: Stocked availability with zero-day lead time and multi-warehouse presence supports rapid deployment and minimized production downtime. Business impact: faster project timelines and improved service levels for OEMs and end users.
Get a Quick Quote for a ABB 7BCEWDM4313T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEWDM4313T?
Enquire Now
FAQs
The motor supports dual voltage operation at 230 V and 460 V with a 60 Hz, 3‑phase supply. This flexibility helps match different plant electrical systems and reduces the need for multiple inventory variants, simplifying procurement and installation.
Yes. The TEFC enclosure and IP55 protection rating provide protection against ingress during frequent washdowns, while the 3‑phase drive and robust bearings enable reliable operation in damp, hygienic settings typical of food, beverage, and pharmaceutical lines.
The motor aligns with NEMA design standards and carries CSA EEV and CCSA US certifications, supporting regulatory compliance and safe operation within regulated industrial facilities.
Lead time is listed as 0 day, and the product is stocked at multiple warehouses, enabling rapid deployment and minimized project delays, with regional availability to support fast-track installations.
Ideal uses include sanitary conveyors, pumps, and mixers in food, beverage, and pharma environments. With a 365TSC frame, foot mounting, direct-on-line starting, and a 1.15 service factor, plan for straightforward mounting, proper alignment with couplings, and standard start-up procedures to maximize uptime.
