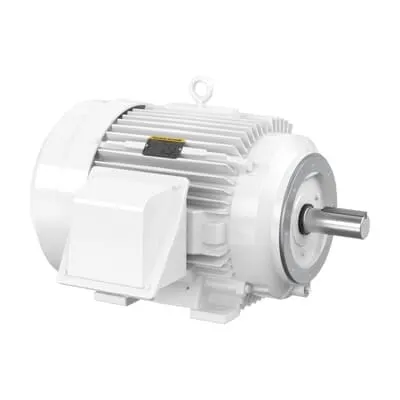

ABB 7BCEWDM4348T Washdown Motor - Premium IP55 TEFC 40 HP
Part Number: 7BCEWDM4348T
Quick Summary
Washdown motor ABB 7BCEWDM4348T delivers 40 HP of robust power for demanding, washing‑down environments such as food processing, dairy, and pharmaceutical lines. Engineers often struggle with moisture ingress, corrosion, and downtime caused by harsh cleaning cycles; this motor addresses those challenges with a TEFC enclosure and IP55 protection that withstands frequent washdowns. It also carries NEMA design B characteristics and a premium efficiency rating to meet regulatory and energy goals. By combining rugged construction with dual voltage capability (230/460 V) and a compact 365TC frame, it offers installation flexibility and long-term operating cost reductions. The result is a scalable, maintainable solution that keeps critical processes running smoothly while meeting industry standards.
Product Information
Extended Description
7BCEWDM4348T ABB: Washdown Motor 40 Hp 230 V (CEWDM4348T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
40HP,890RPM,3PH,60HZ,365TC,TEFC,F1
Ambient Temperature
40 °C
Bearing
65BC03JGG30A, Ball
Bearing NDE
65BC03JGG30A
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEWDM4348T
Certification Agency
CCSA US | CSA EEV
Country of Origin
United States (US)
Customs Tariff Number
85015230
Drive End Flange Type
C-Face
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
CEWDM4348T
Gross Volume
41520.75 inÂł
Gross Weight
417.305 kg
IP Class
IP55
Insulation Class
F
Invoice Description
40HP,890RPM,3PH,60HZ,365TC,TEFC,F1
Made To Order
No
Medium Description
Stainless Steel, 40 HP, 900 RPM, Frame Size 365Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CEWDM4348T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
365TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
8P
Number of Poles (High)
8
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
40 Hp
Power Factor
77 %
Product Name
Stainless Steel
Product Net Depth / Length
41.5 in
Product Net Height
29 in
Product Net Weight
417.305 kg
Product Net Width
34.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
106 A | 53 A
Rated Efficiency
91.70 %
Rated Speed
890 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
2.37 in
Short Description
40 HP, 900 RPM, Frame Size 365Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
900 r/min
Type of Duty
Continuous
Voltage Rating
230 V | 460 V
Feature: Premium efficiency rated at 91.70% reduces energy consumption on continuous-duty lines. This higher efficiency translates to lower operating costs and improved energy stewardship across manufacturing facilities. Application: ideal for conveyors, pumps, and mixers in food and beverage, pharmaceutical, and packaging lines where every kilowatt counts. Feature: IP55 ingress protection with a TEFC enclosure shields windings from dust and washdown exposure. Business impact: longer service intervals, reduced corrosion risk, and higher uptime in wet environments. Application: suitable for washdown zones in dairy, meat processing, and beverage plants where frequent sanitizing cycles occur. Feature: 40 HP, 890 r/min, 8-pole design in a 365TC frame with dual voltage 230/460 V at 60 Hz. Business impact: simplifies spares strategy and replacement planning, while enabling seamless integration with existing plant power systems. Application: retrofit or new installation in continuous-process lines such as mixers, grinders, and conveyors. Feature: Foot-mounted base with C-face drive end flange and direct-on-line starting. Business impact: easier mechanical alignment, faster commissioning, and reduced installation costs. Application: packaging lines, material handling, and robotics interfaces where quick fault isolation and serviceability matter. Feature: NEMA design B, robust iron frame, and CSA EEV/CCSA US certifications support regulatory compliance and reliability. Business impact: compliance with industry standards and reduced risk of non-conformance in regulated facilities, along with a durable build that tolerates high ambient temperatures up to 40 °C. Application: use in harsh production environments that demand dependable torque, steady duty cycles, and long maintenance intervals.
Get a Quick Quote for a ABB 7BCEWDM4348T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEWDM4348T?
Enquire Now
FAQs
The 7BCEWDM4348T is a foot-mounted motor built on a 365TC frame with a 2.37 in shaft diameter and a C-face drive end flange. It supports direct-on-line starting at 60 Hz and dual voltage 230/460 V, simplifying retrofit or new installations in standard processing lines.
This motor delivers a rated efficiency of 91.70%. At 230 V and 460 V, the current draw is 106 A and 53 A respectively, enabling straightforward sizing of supply feeders and protective devices while maintaining robust torque for continuous duty applications.
Yes. With IP55 ingress protection and TEFC enclosure, it withstands frequent washdowns, humidity, and cleaning cycles. The 40 HP, 8-pole design provides reliable performance for conveyors, mixers, and pumps typical in food, beverage, and pharmaceutical production lines.
The motor supports CSA EEV and CCSA US certifications, aligns with NEMA design standards (Code B), and offers IP55 protection. These certifications help ensure regulatory compliance, safety, and reliability in regulated manufacturing environments.
Lead time is listed as 0 day in supplier data, with standard warranty terms requiring return of warranted products. The motor’s premium efficiency and durable TEFC/IP55 design reduce energy use and maintenance frequency, delivering lower total cost of ownership in continuous-duty operations.
