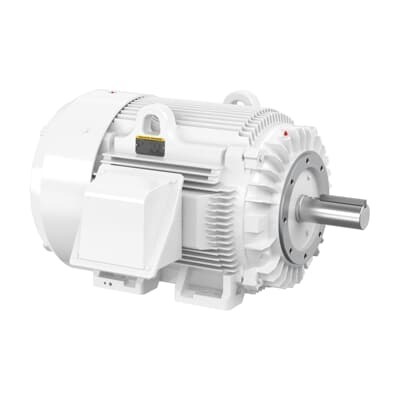

ABB 7BCEWDM4404T Washdown Motor - 75 HP TEFC IP55
Part Number: 7BCEWDM4404T
Quick Summary
Washdown Motor performance delivers hygienic, reliable motion for food and beverage processing lines. Operators struggle with downtime from washdown exposure, corrosion, and frequent maintenance. This 75 HP 230/460 V TEFC IP55 motor combines premium efficiency with NEMA design B and CSA/CCSA certifications, helping you meet industry standards across markets. It supports 3-phase, 60 Hz operation with a 405TC frame and foot mounting, enabling straightforward integration with existing drives and belts. The design reduces energy consumption and maintenance costs while improving equipment uptime, especially in sanitary environments. For procurement teams, the combination of stock availability and compliant specifications accelerates project timelines and maintenance planning.
Product Information
Extended Description
7BCEWDM4404T ABB: Washdown Motor 75 Hp 230 V (CEWDM4404T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
75HP,1185RPM,3PH,60HZ,405TC,TEFC,F1
Ambient Temperature
40 °C
Bearing
80BC03JPP30A, Ball
Bearing NDE
80BC03JPP30A
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEWDM4404T
Certification Agency
CCSA US | CSA EEV
Country of Origin
United States (US)
Customs Tariff Number
85015230
Drive End Flange Type
C-Face
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
CEWDM4404T
Gross Volume
105840 inÂł
Gross Weight
599.649 kg
IP Class
IP55
Insulation Class
F
Invoice Description
75HP,1185RPM,3PH,60HZ,405TC,TEFC,F1
Made To Order
No
Medium Description
Stainless Steel, 75 HP, 1200 RPM, Frame Size 405Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CEWDM4404T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
405TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
75 Hp
Power Factor
85 %
Product Name
Stainless Steel
Product Net Depth / Length
48 in
Product Net Height
52.5 in
Product Net Weight
599.649 kg
Product Net Width
42 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
174 A | 87 A
Rated Efficiency
94.50 %
Rated Speed
1185 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
2.88 in
Short Description
75 HP, 1200 RPM, Frame Size 405Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Type of Duty
Continuous
Voltage Rating
230 V | 460 V
Feature TEFC enclosure with IP55 protection → Business Impact Protects against washdown moisture, dust ingress, and corrosion, extending motor life in sanitary environments; reduces unplanned downtime. Application Food processing lines, packaging machines, and pharmaceutical equipment benefit from reliable operation in harsh cleaning cycles. Feature Premium efficiency rating (94.50%) → Business Impact Lowers energy costs over the motor’s lifecycle, improving total cost of ownership; supports sustainability goals. Application Continuous-duty conveyors, mixers, and pumps where energy optimization matters. Feature 75 HP output at 1185 rpm, 6P, 3-phase, 60 Hz → Business Impact Delivers strong torque with smooth starts, enabling consistent belt drives and load handling; reduces motor stress and wear. Application Heavy-load conveyors and processing machines requiring steady speed control. Feature 405TC frame, TEFC, foot-mounted F1 → Business Impact Simplifies installation and replacement, reducing commissioning time and compatibility risk. Application Retrofit projects and OEM integrations with standard frame sizing. Feature NEMA Design B, CSA/CCSA, CE certifications → Business Impact Ensures cross-market compliance and safer operation, easing procurement and audit processes. Application Global supply chains and regulated industries needing verified standards. Feature Stocked at multiple warehouses, 0 day lead time → Business Impact Improves project timelines and maintenance planning with instant availability. Application Capital equipment installs and service fleets requiring rapid replenishment.
Get a Quick Quote for a ABB 7BCEWDM4404T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEWDM4404T?
Enquire Now
FAQs
This motor supports 230/460 V, 3-phase operation at 60 Hz, with a 405TC frame. It is foot-mounted in the F1 configuration and uses a TEFC enclosure with IP55 protection, facilitating straightforward replacement in existing conveyors or pumps without extensive rework.
Designed for washdown environments, the motor features IP55 protection and a TEFC enclosure to resist moisture and dust ingress. With 75 HP and 1185 rpm, it delivers dependable torque, while the 94.50% efficiency reduces energy waste and heat in continuous-duty processing lines.
Yes. The ABB 7BCEWDM4404T carries CE certification and CSA/CCSA designations, meeting regulatory requirements across multiple markets. Its NEMA Design B rating further supports compatibility with a wide range of US and international equipment and controls.
Lead time is listed as 0 day, and the product is stocked at multiple warehouses, including US and international locations. This enables rapid deployment, reduced downtime, and accelerated project schedules for OEMs and service teams.
Warranty terms indicate standard condition: product under warranty must be returned if a defect is found. The motor’s robust bearings and sealed TEFC design minimize routine maintenance, while the 7BCEWDM4404T’s durable construction supports longer service intervals in demanding washdown environments.
