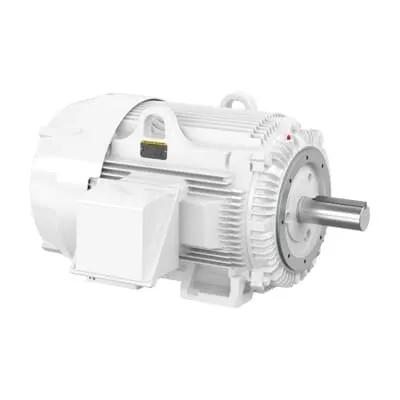

ABB 7BCEWDM4419T Washdown Motor - Premium Efficiency
Part Number: 7BCEWDM4419T
Quick Summary
Washdown Motor 7BCEWDM4419T delivers 75 HP power for sanitary, high-hygiene applications. End users often confront corrosion, wash-down residue, and downtime; this motor is engineered to withstand frequent cleaning and harsh environments. It carries CSA EEV and CCSA US certifications, plus premium efficiency under NEMA standards, ensuring compliance and performance. With 230/460 V and 60 Hz operation, TEFC enclosure, stainless steel construction, and a 444TC frame, it reduces maintenance costs while supporting reliable uptime. In addition, the motor’s compatibility with standard industrial controls and direct-on-line starting helps streamline installation and replacement in modern plants.
Product Information
Extended Description
7BCEWDM4419T ABB: Washdown Motor 75 Hp 230 V (CEWDM4419T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
75HP,890RPM,3PH,60HZ,444TC,TEFC,F1
Ambient Temperature
40 °C
Bearing
90BC03JPP30A, Ball
Bearing NDE
90BC03JPP30A
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEWDM4419T
Certification Agency
CCSA US | CSA EEV
Country of Origin
United States (US)
Customs Tariff Number
85015230
Drive End Flange Type
C-Face
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
CEWDM4419T
Gross Volume
64325 in³
Gross Weight
902.195 kg
Insulation Class
F
Invoice Description
75HP,890RPM,3PH,60HZ,444TC,TEFC,F1
Made To Order
No
Medium Description
Stainless Steel, 75 HP, 900 RPM, Frame Size 444Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CEWDM4419T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
444TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
8P
Number of Poles (High)
8
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
75 Hp
Power Factor
83 %
Product Name
Stainless Steel
Product Net Depth / Length
50 in
Product Net Height
31 in
Product Net Weight
902.195 kg
Product Net Width
41.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
179 A | 89.3 A
Rated Efficiency
93.60 %
Rated Speed
890 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
3.38 in
Short Description
75 HP, 900 RPM, Frame Size 444Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
900 r/min
Type of Duty
Continuous
Voltage Rating
230 V | 460 V
Feature: Stainless steel construction provides outstanding corrosion resistance for washdown and sanitary environments. Business impact: Reduces cleaning-related wear and downtime, extending motor life and minimizing maintenance costs. Application: Food processing, beverage bottling, pharmaceutical production. Feature: TEFC enclosure delivers protection against dust, splashes, and moisture. Business impact: Enables reliable operation in humid spaces and wet rooms, lowering risk of internal damage. Application: Wet + cleaning-in-place (CIP) areas in processing lines. Feature: Premium efficiency (93.60%) with a service factor of 1.15. Business impact: Lower energy consumption, reduced utility costs, and better overall equipment effectiveness. Application: Continuous-duty conveyors and mixers with steady loads. Feature: Dual voltage 230/460 V and 60 Hz. Business impact: Site-wide compatibility reduces spare-part variety and stocking needs, speeding up procurement. Application: Global manufacturing facilities with mixed-power footprints. Feature: 75 HP, 890 r/min, 8P with 444TC frame and 0/1 speed options. Business impact: Precise performance for matched drives and conveyors, enabling predictable process control. Application: High-torque starting for material handling and packaging lines. Feature: Foot-mounted, C-face mounting, and DOL starting. Business impact: Simplified installation, straightforward maintenance, and fast startup without complex soft-starters. Application: Retrofit projects and new-line builds in industrial plants.
Get a Quick Quote for a ABB 7BCEWDM4419T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEWDM4419T?
Enquire Now
FAQs
Yes. The motor is designed for 230/460 V, three-phase operation at 60 Hz, making it suitable for a wide range of industrial power systems. Its dual-voltage capability simplifies sourcing and enables easy replacement in mixed-fleet facilities.
The motor features a premium efficiency rating of 93.60% and a service factor of 1.15. This combination reduces energy consumption during normal operation and provides additional load tolerance, lowering energy costs over time and improving uptime under peak loads.
Designed for washdown and sanitary environments, it uses stainless steel construction and a TEFC enclosure to resist moisture and cleaning chemicals. It is ideal for food & beverage, pharmaceutical, and chemical processing facilities where frequent cleaning is required.
This motor aligns with CSA EEV and CCSA US certifications and adheres to NEMA standards. These certifications ensure safety, reliability, and compatibility with regulatory requirements in North American markets, easing compliance and procurement processes.
With foot-mounted, C-face mounting and a 444TC frame, installation is straightforward and replacement is straightforward. The direct-on-line starting reduces control hardware, while stainless steel construction and a robust bearing arrangement minimize maintenance needs and downtime, delivering faster payback.
