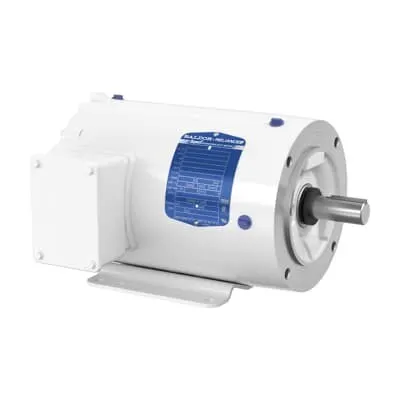

ABB CEWDNM3558T Washdown Motor - 2HP, 60Hz, TENV
Part Number: 7BCEWDNM3558T
Quick Summary
ABB CEWDNM3558T Washdown Motor is a 2 HP three-phase motor designed for demanding washdown environments. End users frequently confront corrosion, unsanitary buildup, and downtime when using standard motors in food, beverage, pharma, and packaging lines. It carries CSA, CSA EEV, and UR certifications and adheres to NEMA standards with a 40 °C ambient rating. Designed for premium efficiency and easy integration with a 145TC frame and C-face mounting, this motor delivers reliable performance and lowers total cost of ownership across modern manufacturing facilities.
Product Information
Extended Description
7BCEWDNM3558T ABB: Washdown Motor 2 Hp 230 V (CEWDNM3558T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,1755RPM,3PH,60HZ,143TC,3540M,TE
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CEWDNM3558T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
35LYSS592: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TENV
Frame Material
Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
CEWDNM3558T
Gross Volume
3496.049 in³
Gross Weight
54 lb
Horsepower Rating UL/CSA
2.000 Hp
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
2HP,1755RPM,3PH,60HZ,143TC,3540M,TENV,F1
Made To Order
No
Medium Description
White Washdown, 2 HP, 1800 RPM, Frame Size 145Tc, C-Face Mounting, 3 Phase, TENV Enclosure, 230/460 V, 60 Hz (CEWDNM3558T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
81 %
Product Name
White Washdown
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
54 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
5.4 A | 2.7 A
Rated Efficiency
86.50 %
Rated Speed
1755 r/min
Replaced Product ID (OLD)
7B35SS592G174G1
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
2 HP, 1800 RPM, Frame Size 145Tc, C-Face, 3 PH, TENV, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature: Washdown-ready TENV enclosure and 145TC frame with C-face mounting. Business Impact: Provides corrosion resistance, easier sanitation, and simplified maintenance in wet, high-pressure cleaning environments. Application: Food processing, beverage lines, and pharmaceutical packaging where frequent washing is required. Feature: 2 HP, 1755 rpm, 60 Hz operation at 230/460 V. Business Impact: Delivers dependable torque with balanced performance and compatible power supply options, reducing wiring changes during install. Application: Conveyors, pumps, and mixers in mixed-voltage facilities. Feature: Premium Efficiency with insulation class F. Business Impact: Lower energy consumption and reduced heat, extending motor life and lowering cooling requirements. Application: Continuous-duty lines with strict energy targets. Feature: Direct On Line starting and 3-phase design. Business Impact: Simplified start-up, robust cold-weather performance, and reduced starter equipment needs. Application: Fast pump and fan commissioning on packaging lines. Feature: 6205 ball bearings and durable steel frame. Business Impact: Enhanced reliability in aggressive washdown cycles, lower maintenance intervals, and longer service life. Application: Harsh production floors in food, pharma, and consumer goods plants.
Get a Quick Quote for a ABB 7BCEWDNM3558T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCEWDNM3558T?
Enquire Now
FAQs
The CEWDNM3558T is designed for dual voltage operation, supporting 230 V and 460 V three-phase power with 60 Hz frequency. This flexibility simplifies installation across facilities with mixed voltages and minimizes transformer needs. It enables consistent performance on conveyors, pumps, and other driven equipment without reconfiguring drive systems.
The motor uses a TENV enclosure with a C-Face drive end flange and is foot mounted on a 145TC frame. This combination provides rugged protection in washdown environments while enabling straightforward alignment with existing conveyors and pumps. The horizontal mounting position (F1) supports standard industrial layouts and easy service access.
Yes. The White Washdown designation and 40 °C ambient rating, combined with a steel frame and corrosion-resistant design, make it well-suited for sanitary washdown regimes common in food and beverage production. The enclosure and bearing choices are optimized for frequent cleaning and resistance to cleaning agents commonly used in these facilities.
CEWDNM3558T carries CSA, CSA EEV, and UR certifications, along with compliance to NEMA standards. These approvals support regulatory compliance in North America and help ensure safe operation in demanding industrial environments. The motor also meets a 40 °C ambient rating and uses a premium efficiency design for energy compliance.
The motor’s premium efficiency, robust bearings (6205 | Ball), and TENV enclosure reduce energy costs and maintenance frequency. With a 1.15 service factor and a 54 lb weight, it offers reliable uptime in continuous-duty lines. ROI is driven by lower energy use, reduced cooling load, and fewer unscheduled outages on packaging and processing lines.
