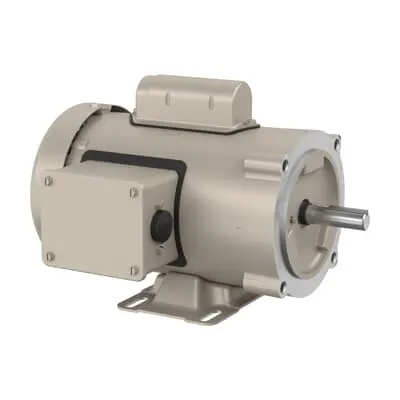

ABB CFDL3504M Farm Duty Motor - TEFC 56C
Part Number: 7BCFDL3504M
Quick Summary
CFDL3504M Farm Duty motor delivers reliable, compact drive for farming equipment and light industrial duties. Operators often contend with mismatched voltage, frequent wear, and long lead times when replacing aging motors. This model carries CSA and UR certifications and RoHS compliance, with a TEFC enclosure ideal for dusty or humid environments. Stocked at multiple warehouses with 0 day lead time, it enables faster maintenance schedules and reduced downtime. Engineered as a 1‑phase motor at 60 Hz, the 0.5 HP, 56C frame version supports easy retrofits, while C‑Face mounting and 1‑phase operation help streamline installation in standard plant layouts.
Product Information
Extended Description
7BCFDL3504M ABB: Farm Duty Motor 0.5 Hp 115 V (CFDL3504M)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.5HP,1725RPM,1PH,60HZ,56C,3421L,TEF
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6203 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CFDL3504M
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85013100
Design
N
Dimension Diagram
34LYM371: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
CFDL3504M
Gross Volume
2110.969 inÂł
Gross Weight
28 lb
Horsepower Rating UL/CSA
0.500 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
B
Invoice Description
.5HP,1725RPM,1PH,60HZ,56C,3421L,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
Farm Duty, 0.5 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 1 Phase, TEFC Enclosure, 115/230 V, 60 Hz (CFDL3504M)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56C
Motor Frame Suffix
C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
N
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.5 Hp
Power Factor
66 %
Product Name
Farm Duty
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
28 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
7.4 A | 3.7 A
Rated Efficiency
68 %
Rated Speed
1725 r/min
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.25
Service Factor Percentage
1.25 %
Shaft Diameter
0.63 in
Short Description
0.5 HP, 1800 RPM, Frame Size 56C, C-Face, 1 PH, TEFC, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101103
Voltage Code
J
Voltage Rating
115 V | 230 V
Feature: The CFDL3504M is a 0.5 HP, single‑phase motor designed for 115/230 V operation at 60 Hz. Benefit: Voltage versatility reduces wiring complexity and minimizes spare parts inventory, speeding up repairs. Application: Ideal for conveyors, fans, pumps, and small machinery in farm and light manufacturing settings. Feature: TEFC enclosure with a 56C frame provides rugged protection. Benefit: Durable performance in dusty, humid, and tough environments lowers maintenance costs and extends service life. Application: Suitable for outdoor equipment, barns, and workshop environments. Feature: C‑Face mounting and foot-mounted, horizontal orientation simplify installation and retrofit. Benefit: Flexible mounting options shorten installation time and reduce adapter needs, cutting total project downtime. Application: Retrofits and new builds across plant floors and livestock facilities. Feature: Regreasable bearings and direct on line starting support long intervals between service and straightforward startup, reducing downtime. Benefit: Lower maintenance costs and simpler electrical design with no special soft-starter required. Application: Continuous duty drives like fans and small conveyors. Feature: Efficiency 68% and power factor 66% improve energy cost efficiency and grid compliance. Benefit: Lower operating expenses and better electrical performance in 1PH systems. Application: Renewable and non-renewable facility applications requiring dependable performance. Feature: Certifications and origin (CSA, UR, RoHS, United States origin) ensure regulatory compliance and supply chain reliability. Benefit: Simplified procurement, regulatory peace of mind, and consistent quality. Application: Government and industrial specs where compliance matters.
