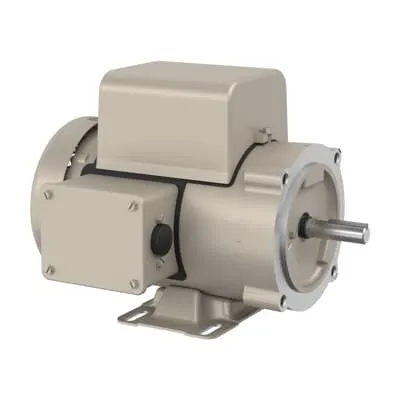

ABB CFDL3507M Farm Duty Motor - CSA UR
Part Number: 7BCFDL3507M
Quick Summary
ABB CFDL3507M Farm Duty Motor is a 0.75 HP single-phase drive designed for agricultural and light industrial applications. This motor minimizes downtime by matching a 60 Hz supply with 115/230 V operation in a rugged TEFC enclosure, simplifying field installation. It carries CSA and UR certification and aligns with NEMA design standards while remaining RoHS compliant for global compliance. The combination of a 56C frame, foot-mounted base, and horizontal mounting makes sourcing and replacement straightforward across OEMs and maintenance services. This helps engineers meet project timelines and regulatory requirements while reducing lifecycle costs.
Product Information
Extended Description
7BCFDL3507M ABB: Farm Duty Motor 0.75 Hp 115 V (CFDL3507M)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.75HP,1725RPM,1PH,60HZ,56C,3432LC,T
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6203 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CFDL3507M
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
N
Dimension Diagram
34LYM369: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
CFDL3507M
Gross Volume
3496.049 inÂł
Gross Weight
39 lb
Horsepower Rating UL/CSA
0.750 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
B
Invoice Description
.75HP,1725RPM,1PH,60HZ,56C,3432LC,TEFC,F
Lubrication
Regreasable
Made To Order
No
Medium Description
Farm Duty, 0.75 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 1 Phase, TEFC Enclosure, 115/230 V, 60 Hz (CFDL3507M)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56C
Motor Frame Suffix
C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
N
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.75 Hp
Power Factor
75 %
Product Name
Farm Duty
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
39 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
8.8 A | 4.4 A
Rated Efficiency
74 %
Rated Speed
1725 r/min
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.25
Service Factor Percentage
1.25 %
Shaft Diameter
0.63 in
Short Description
0.75 HP, 1800 RPM, Frame Size 56C, C-Face, 1 PH, TEFC, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101103
Voltage Code
M
Voltage Rating
115 V | 230 V
Feature: Farm Duty design tailored for intermittent, long-run duty cycles and demanding environments. Business Impact: higher reliability and longer service intervals for pumps, conveyors, and agitation systems in farming or light manufacturing. Application: ideal for irrigation pumps and grain conveyors where uptime matters. Feature: 1 phase, 60 Hz, 115/230 V operation with TEFC enclosure. Business Impact: simplifies electrical planning, reduces wiring complexity, and improves protection against dust and moisture in harsh plant conditions. Application: quickly fits standard controls in rural installations and compact enclosures. Feature: 56C frame with foot-mount base and C-face drive end flange. Business Impact: straightforward installation, compatibility with common mounting kits, and simpler retrofits. Application: plug-and-play in existing machinery footprints. Feature: Service Factor 1.25 and insulation class B. Business Impact: enhanced overload tolerance and temperature resilience, lowering risk of nuisance trips. Application: continuous-duty applications with moderate environmental heat. Feature: RoHS compliant and NEMA-design aligned. Business Impact: regulatory readiness for international markets and dependable cross-border procurement. Application: OEMs and distributors can standardize on a single motor family for multiple regions. Feature: Stock availability and lead-time clarity with multiple warehouses. Business Impact: reduces project wait times and inventory uncertainty. Application: fast replacements and spare-part planning across global sites.
Get a Quick Quote for a ABB 7BCFDL3507M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCFDL3507M?
Enquire Now
FAQs
CFDL3507M uses a 56C frame, foot-mounted base, and horizontal mounting with a C-face drive end flange, making it compatible with common 56C mounting kits and existing control enclosures. Ensure mounting pads match the 56C footprint and the enclosure is TEFC rated to maintain enclosure integrity and protection in harsh environments.
The motor delivers 0.75 HP at 1725 rpm with a single phase 115/230 V, 60 Hz rating and a service factor of 1.25. Insulation class is B, and efficiency is listed at 74%. These specs support reliable, efficient operation in light industrial and farm-duty conditions while providing a margin for short-term overload without excessive temperature rise.
Yes. Designed specifically for Farm Duty, this motor handles continuous or extended duty periods typical of irrigation pumps and farm equipment. The 1-phase, 60 Hz, 115/230 V rating, combined with TEFC and robust 56C frame, ensures dependable operation in outdoor or dusty environments common in agricultural settings.
CFDL3507M is CSA and UR listed, supports NEMA design standards, and is RoHS compliant. These certifications facilitate regulatory compliance for global markets and help ensure safer electrical performance, environmental responsibility, and easier cross-border procurement.
Lead time is listed as 0 day, and the product is stocked at multiple warehouses, including US and international locations. This translates to faster delivery, reduced project delays, and easier contingency planning for maintenance or OEM sourcing.
