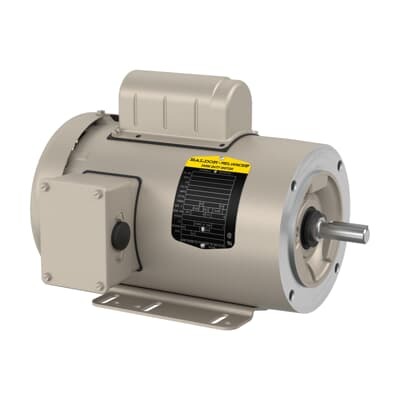

ABB 7BCFDL3510M Farm Duty Motor - CSA/UR Listed
Part Number: 7BCFDL3510M
Quick Summary
ABB 7BCFDL3510M Farm Duty Motor is a 1 HP, single-phase motor for reliable agricultural equipment. Engineers and technicians rely on consistent performance even in demanding farm environments where downtime equals lost productivity. This model carries CSA and UR certifications with a NEMA TEFC enclosure, enhancing safety, protection, and regulatory compliance. Designed for 115/230 V operation and 60 Hz service, it simplifies installation, reduces wiring hassles, and supports quick procurement. Key specs include a 1 HP output, 1725 rpm, 56CH frame, and C-Face mounting, enabling straightforward integration into existing machinery. Stocked at multiple warehouses with rapid lead times, this motor helps minimize downtime and operating costs for livestock housing, irrigation pumps, and processing equipment.
Product Information
Extended Description
7BCFDL3510M ABB: Farm Duty Motor 1 Hp 115 V (CFDL3510M)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1740RPM,1PH,60HZ,56CH,3524L,TEF
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CFDL3510M
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
L
Dimension Diagram
35LYE2324: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
CFDL3510M
Gross Volume
3496.049 in³
Gross Weight
47 lb
Horsepower Rating UL/CSA
1.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
1HP,1740RPM,1PH,60HZ,56CH,3524L,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
Farm Duty, 1 HP, 1800 RPM, Frame Size 56Ch, C-Face Mounting, 1 Phase, TEFC Enclosure, 115/230 V, 60 Hz (CFDL3510M)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56CH
Motor Frame Suffix
CH
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
73 %
Product Name
Farm Duty
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
47 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
13 A | 6.5 A
Rated Efficiency
67 %
Rated Speed
1725 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.63 in
Short Description
1 HP, 1800 RPM, Frame Size 56Ch, C-Face, 1 PH, TEFC, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101103
Voltage Code
L
Voltage Rating
115 V | 230 V
Electrical versatility and straightforward wiring are baked into the 1 HP, 115/230 V, 60 Hz single‑phase configuration. This design reduces the need for transformers and minimizes panel complexity, delivering lower installed costs and easier field wiring for farm installations. Typical applications include irrigation pumps, barn fans, conveyors, and feed systems where dependable start‑up and consistent torque matter for uptime. The TEFC enclosure protects against dust, moisture, and agricultural debris, extending service life in dusty barns and outdoor enclosures. Coupled with a rugged 56CH frame, the motor resists harsh environmental conditions up to 40 °C and 1000 m altitude, helping operators maintain steady performance across seasonal workloads and remote locations. Foot-mounted base with a C-face drive end flange simplifies replacement and retrofit projects, while the 56CH frame and horizontal mounting orientation streamline installation alongside existing equipment. Bearing design includes 6205 ball bearings with 6203 NDE, providing durable, low-maintenance operation. The shaft diameter of 0.63 in supports common couplings and belt pulleys. Regreasable lubrication reduces total cost of ownership by enabling scheduled maintenance rather than premature bearing failure, lowering labor and replacement parts. The motor starts Direct On Line, minimizing start‑up shocks on 1‑phase lines and improving control in pumps and fans commonly deployed in farm deployments. With a service factor of 1.15 and an efficiency of about 67%, the motor balances performance and energy use under continuous duty. The rated speed of 1725 r/min (4-pole) aligns with typical farm drive needs, while a 60 Hz, 115/230 V profile matches regional power grids. The model is stocked at multiple warehouses with 0 day lead time, supporting fast project timelines and reliable supply chain.
Get a Quick Quote for a ABB 7BCFDL3510M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCFDL3510M?
Enquire Now
FAQs
The motor uses a foot-mounted base with a C-face drive end flange, designed for straightforward retrofits into existing equipment. The 56CH frame with a 0.63 inch shaft diameter supports common couplings and pulleys, enabling quick alignment and minimal modification in agricultural conveyors, fans, pumps, and other farm drives. This compatibility helps maintenance teams reduce project downtime and procurement complexity.
Yes. The ABB 7BCFDL3510M is a 1-phase motor rated for 115 V or 230 V operation at 60 Hz. This makes it compatible with standard farm and light industrial power distribution, simplifying installation, reducing the need for voltage converters, and facilitating rapid deployment in field equipment such as irrigation pumps and farm fans.
The motor carries CSA and UR listings, aligning with recognized electrical safety and performance standards. It also adheres to NEMA design and TEFC enclosure requirements, which bolster ruggedness in dusty, moist, or outdoor farming environments. These certifications help meet regulatory requirements for farm equipment and simplify customer qualification processes during audits and procurement reviews.
Lead time is listed as 0 day, and the motor is stocked at multiple warehouses, including locations in the United States and abroad. This combination supports rapid fulfillment for urgent farm projects, reduces downtime when replacing failed drives, and improves overall project timelines for equipment upgrades and maintenance cycles.
Key metrics include 1 HP output, 1725 r/min (4-pole), 60 Hz, 1-phase operation, and a service factor of 1.15 with an efficiency around 67%. These values imply reliable torque and modest energy use under continuous duty, contributing to lower energy costs and extended motor life in farm applications like pumps, fans, and conveyors.
