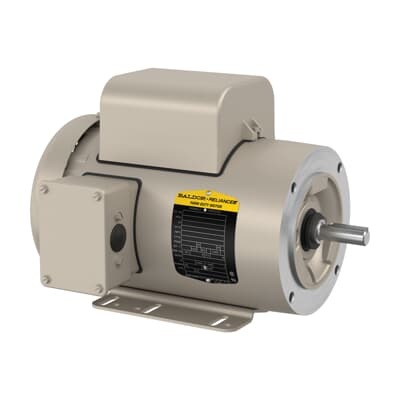

ABB CFDL3514M Farm Duty Motor - CSA/UR 1PH TEFC
Part Number: 7BCFDL3514M
Quick Summary
ABB CFDL3514M Farm Duty Motor is a compact, single-phase drive solution designed for agricultural equipment. Farm operators often struggle with uptime when dust, moisture, and remote sites complicate maintenance. Key certifications include CSA and UR safety markings, plus a NEMA-compliant design, with a TEFC enclosure that protects windings in harsh farm environments. This motor pairs 1.5 HP performance with flexible voltage options (115/208-230 V) for adaptable installations, delivering reliable operation while reducing downtime. The result is a farm-ready drive that balances cost efficiency with robust protection for everyday agricultural tasks and seasonal peak loads.
Product Information
Extended Description
7BCFDL3514M ABB: Farm Duty Motor 1.5 Hp 115 V (CFDL3514M)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,1750RPM,1PH,60HZ,56CH,3532LC,
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CFDL3514M
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
35LYE2322: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
CFDL3514M
Gross Volume
3496.049 in³
Gross Weight
51 lb
Horsepower Rating UL/CSA
1.500 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
B
Invoice Description
1.5HP,1750RPM,1PH,60HZ,56CH,3532LC,TEFC
Lubrication
Regreasable
Made To Order
No
Medium Description
Farm Duty, 1.5 HP, 1800 RPM, Frame Size 56Ch, C-Face Mounting, 1 Phase, TEFC Enclosure, 115/208-230 V, 60 Hz (CFDL3514M)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56CH
Motor Frame Suffix
CH
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1.5 Hp
Power Factor
96 %
Product Name
Farm Duty
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
51 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
12.4 A | 6.8 A | 6.2 A
Rated Efficiency
80 %
Rated Speed
1725 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.63 in
Short Description
1.5 HP, 1800 RPM, Frame Size 56Ch, C-Face, 1 PH, TEFC, 115/208-230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101103
Voltage Code
J
Voltage Rating
115 V | 208 V | 230 V
Feature → Business Impact → Application: The 1.5 HP, single-phase design delivers ample power for small farm conveyors and pumps while keeping electrical complexity low, reducing wiring and control costs in agricultural installations. Benefit: Simplified integration with existing 115 V or 230 V infrastructure improves startup reliability and lowers total cost of ownership in farm sites that require dependable, easy-to-service motors. Application: feed conveyors, irrigation pumps, and grain handling equipment in dairy, poultry, and crop operations. Feature: TEFC enclosure provides dust and moisture resistance; Benefit: extended mean time between failures in dusty barns and outdoor equipment environments; Application: exterior-mounted fans or pumps near milking parlors. Feature: 56CH frame, C-face mounting, and foot-mounted base; Benefit: versatile mounting options, faster installation, and compatibility with common farm gear; Application: compact drive assemblies for small conveyors and agitators. Feature: Regreasable bearings and maintenance-friendly lubrication; Benefit: lower maintenance costs and longer service life in remote locations; Application: slurry pumps and grain conveyors. Feature: Dual voltage rating (115 V / 208-230 V) and 60 Hz operation; Benefit: installation flexibility across facilities with varied supply standards; Application: farm irrigation systems and automation panels. Feature: Direct On Line starting and 1-phase operation; Benefit: simple control logic, reduced startup surprises and energy waste; Application: on-farm water transfer and material handling. Feature: 1800 r/min synchronous speed (1725 r/min rated) and 4-pole design; Benefit: consistent speed for timing-critical farm processes; Application: augers and small air-moving equipment. Feature: CSA/UR and NEMA design alignment; Benefit: regulatory confidence and standardized performance in agricultural environments; Application: any industry-standard farm automation project.
Get a Quick Quote for a ABB 7BCFDL3514M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCFDL3514M?
Enquire Now
FAQs
Yes. CFDL3514M supports 115 V or 230 V single-phase operation, enabling straightforward integration with common farm control panels and switchgear. With a foot-mounted base or horizontal C-Face mounting, it fits typical equipment footprints used in irrigation pumps and conveyors.
The motor is rated at 1.5 HP with a rated speed of 1725 r/min (synchronous 1800 r/min). It operates at 60 Hz and has rated current options of 12.4 A, 6.8 A, and 6.2 A, depending on the voltage configuration (115 V or 208-230 V).
Absolutely. Its 56CH frame, TEFC enclosure, and 1PH configuration are tailored for farm-duty tasks like small conveyors and irrigation pumps. The motor’s rugged build and maintenance-friendly design support continuous-duty cycles common in agricultural applications.
This motor carries CSA and UR safety markings and aligns with NEMA design standards, providing regulatory confidence for farm machinery and automation projects in North America.
With regreasable bearings and a TEFC enclosure, maintenance intervals can be extended in dirty environments, reducing downtime. The dual-voltage capability minimizes wiring changes during upgrades, delivering a lower total cost of ownership for farm automation.
