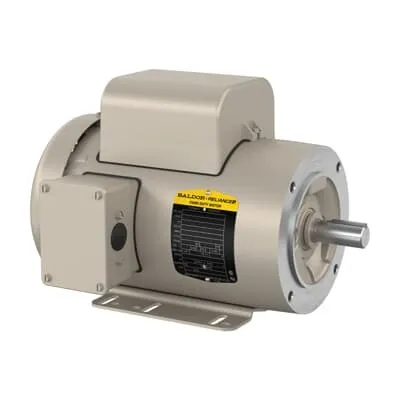

ABB 7BCFDL3516TM Farm Duty Motor 2HP, 230V 1PH TEFC - CSA/UR
Part Number: 7BCFDL3516TM
Quick Summary
Farm Duty Motor is a rugged single-phase drive designed for 2 HP agricultural equipment and irrigation pumps. Engineers often battle downtime and unpredictable performance in farm settings; this motor addresses those pains with a durable TEFC enclosure and reliable 230 V operation. CSA and UR listings, plus adherence to NEMA design standards, help ensure regulatory compliance and safer maintenance across North American facilities. Lead times are minimized with stock at multiple warehouses, simplifying procurement and accelerating project deployment, while 1-phase, 60 Hz service aligns with common rural power.
Product Information
Extended Description
7BCFDL3516TM ABB: Farm Duty Motor 2 Hp 230 V (CFDL3516TM)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,1740RPM,1PH,60HZ,56CHZ,3534LC,T
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CFDL3516TM
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
35LYE2321: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
CFDL3516TM
Gross Volume
3496.049 in³
Gross Weight
53 lb
Horsepower Rating UL/CSA
2.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
2HP,1740RPM,1PH,60HZ,56CHZ,3534LC,TEFC,F
Lubrication
Regreasable
Made To Order
No
Medium Description
Farm Duty, 2 HP, 1800 RPM, Frame Size 56CHz, C-Face Mounting, 1 Phase, TEFC Enclosure, 230 V, 60 Hz (CFDL3516TM)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56CHZ
Motor Frame Suffix
CHZ
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
99 %
Product Name
Farm Duty
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
53 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
7.9 A
Rated Efficiency
82.50 %
Rated Speed
1740 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
2 HP, 1800 RPM, Frame Size 56CHz, C-Face, 1 PH, TEFC, 230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101103
Voltage Code
J
Voltage Rating
230 V
Feature TEFC enclosure improves protection against dust, moisture, and outdoor exposure, delivering higher reliability in harsh farm environments. Business Impact Fewer unexpected outages and lower maintenance costs translate into improved uptime for critical irrigation and processing equipment, enabling predictable production schedules. Application Suitable for outdoor pumps, fans, conveyors, and other farm-duty applications where rugged enclosure is essential. Feature 2 HP, 230 V, 1PH, 60 Hz specification aligns with standard rural electrical infrastructure, reducing installation complexity and wiring costs. Business Impact Simplified electrical design and faster commissioning for new projects, delivering faster time-to-value on farm automation initiatives. Application Ideal for light to moderate load equipment in barns, greenhouses, and field machinery. Feature Frame Size 56CHZ with 0.88 in shaft diameter offers compatibility with common mechanical drives and couplings. Business Impact Enables seamless retrofit and compatibility with existing belts, pulleys, and mounting systems, reducing spare-part variation. Application Replacement or upgrade of aging farm motors with minimal downtime. Feature Regreasable lubrication supports long service intervals and easier maintenance. Business Impact Extends service life and lowers maintenance labor costs, improving total cost of ownership. Application Suitable for continuous or near-continuous duty cycles in farm equipment where reliability matters. Feature Direct On Line starting and 60 Min duty time support efficient startup and sustained operation under typical farm loads. Business Impact Reduces hardware complexity and associated startup seesaw, leading to quicker startup times and consistent performance. Application Pumps and fans that require immediate torque and reliable operation. Feature Stocked At Multiple Warehouses (US, GB, SG, etc.) and 0 day lead time reduces project delays and spare parts shortages. Business Impact Improves project predictability and maintenance planning, lowering downtime risk. Application Procurement for large-scale farm projects and retrofit programs.
Get a Quick Quote for a ABB 7BCFDL3516TM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCFDL3516TM?
Enquire Now
FAQs
Confirm 230 V single-phase supply, 60 Hz operation, and a 1PH configuration. Check that your mounting uses a foot-mounted base with a C-Face drive end flange and Horizontal orientation to match the motor’s 56CHZ frame and 0.88 inch shaft. Verifying these specs ensures a straightforward retrofit with minimal alignment adjustments and reliable belt or coupling fitment.
The motor delivers 2 HP at 230 V with a rated speed of 1740 r/min and a 1-phase, 60 Hz supply. It features a TEFC enclosure for harsh environments, a regreasable lubrication system for maintenance intervals, and a rated current near 7.9 A. With a Power Factor around 99% and continuous duty design, you gain energy efficiency, stable torque, and lower operating costs.
Yes, the TEFC enclosure supports outdoor and dusty environments common in agriculture. The motor is CSA and UR listed, with adherence to NEMA design standards, providing regulatory confidence for North American facilities. Ambient conditions up to 40 °C and altitude up to 1000 m are documented, helping ensure safe operation in typical farm locations.
Verify mounting and flange compatibility: C-Face drive end, foot-mounted base, and horizontal mounting orientation. Confirm shaft diameter is 0.88 in and frame size 56CHZ fits your coupling or pulley. Check stock availability across warehouses to minimize lead times and ensure the 0 day lead time data aligns with your project schedule.
Expected ROI comes from reliable continuous-duty performance, reduced downtime, and low maintenance with regreasable lubrication. Pair the motor with standard drives for straightforward control, track energy usage given a high power factor, and leverage stock at multiple warehouses for rapid replacement. Regular inspection of lubrication intervals and alignment checks will further extend service life.
