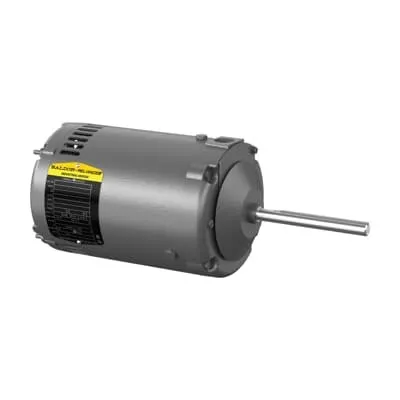

ABB 7BCFM3036A Condensor Fan - 0.5 HP, 3PH, 60 Hz - CSA UR
Part Number: 7BCFM3036A
Quick Summary
ABB 7BCFM3036A Condensor Fan is a compact cooling solution for condenser units in HVAC and industrial chillers. Engineers often struggle to select a fan that reliably matches system voltage, mounting footprint, and environmental conditions. This model features CSA | UR certification and a NEMA B design, supporting safety, regulatory compliance, and broad compatibility. The open enclosure and 60 Hz, 3-phase operation simplify integration into existing plant circuits, while the 0.5 HP rating keeps energy use predictable. With a 1140 rpm speed and a 48YZ frame, installation aligns with standard motor platforms across many OEMs. In practice, this design reduces downtime and minimizes spare parts for service teams, improving maintenance costs and uptime.
Product Information
Extended Description
7BCFM3036A ABB: Condensor Fan 0.5 Hp 208 V (CFM3036A)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.5HP,1140RPM,3PH,60HZ,48YZ,3418M,OP
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6203, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CFM3036A
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
B
Dimension Diagram
34LYJ288: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Resilient Mount
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt | Undefined Efficiency
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
48
Frequency (f)
60 Hz
Global Commercial Alias
CFM3036A
Gross Volume
2200.078 inÂł
Gross Weight
25 lb
Horsepower Rating UL/CSA
0.500 Hp
IC Class
OPEN
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
.5HP,1140RPM,3PH,60HZ,48YZ,3418M,OPEN,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
Condensor Fan, 0.5 HP, 1200 RPM, Frame Size 48Yz, ResilientMount Mounting, 3 Phase, OPEN Enclosure, 208-230/460 V, 60 Hz (CFM3036A)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
48YZ
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.5 Hp
Power Factor
55 %
Product Name
Condensor Fan
Product Net Depth / Length
18.625 in
Product Net Height
11.25 in
Product Net Weight
25 lb
Product Net Width
10.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
2.5 A | 2.4 A | 1.2 A
Rated Efficiency
72 %
Rated Speed
1140 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.5 in
Short Description
0.5 HP, 1200 RPM, Frame Size 48Yz, ResilientMount, 3 PH, OPEN, 208-230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101105
Voltage Code
J
Voltage Rating
208 V | 230 V | 460 V
Feature: 0.5 HP, 1140 rpm motor provides sufficient cooling capacity for medium-load condensers. Business Impact: Maintains condenser efficiency while keeping energy consumption predictable, reducing operating costs. Application: Ideal for HVAC condensers and light-industrial cooling where space and power are constrained. Feature: 3-phase, 60 Hz operation supports stable power delivery and smoother starts. Business Impact: Lowers electrical stress on drives and wiring, extending component life and reducing nuisance trips. Application: Industrial cooling loops and commercial refrigeration systems with standard US power profiles. Feature: Frame Size 48YZ with resilient mounting and open enclosure. Business Impact: Easy retrofits into existing footprints; straightforward installation and service access minimizes downtime. Application: Retrofit projects and OEM replacements in open-frame configurations. Feature: Shaft diameter 0.5 in and Ball bearings (6203) provide robust mechanical reliability. Business Impact: Longer bearing life under continuous duty reduces maintenance intervals and replacement costs. Application: High-cycle condenser fans in harsh environments where vibration is a concern. Feature: Rated current and voltage versatility (208/230/460 V) ensures wide electrical compatibility. Business Impact: Reduces the need for transformers or new wiring during upgrades; supports multi-site deployments. Application: Global or multi-site facilities with varied electrical infrastructure. Feature: CSA | UR certification and NEMA B design support regulatory compliance and compatibility. Business Impact: Streamlines procurement approvals and ensures safe operation in regulated facilities. Application: Industrial and commercial building systems requiring certified motors with predictable protection levels.
