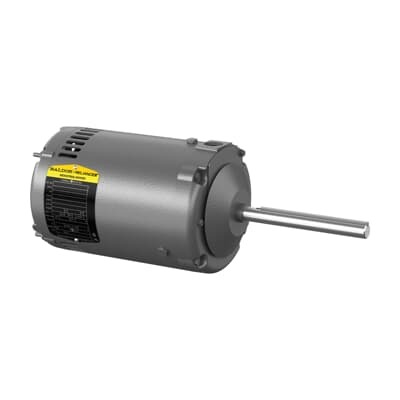

ABB 7BCFM3046A Condensor Fan - 3-Phase 60 Hz CSA UR
Part Number: 7BCFM3046A
Quick Summary
ABB 7BCFM3046A Condensor Fan is a 0.75 HP, three-phase condenser fan designed for open-enclosure condensers in industrial HVAC and refrigeration. When downtime is costly, led times from alternative suppliers can stretch project timelines; this model mitigates that risk with 0 day lead time and nationwide stock. It carries CSA | UR certifications and a NEMA design B classification, supporting reliable regulatory compliance and easy integration. With 208–230/460 V at 60 Hz, a 48YZ frame, and a foot-mounted, resilient-mount design, it delivers straightforward installation and dependable cooling. In practice, procurement teams gain clearer scheduling and maintainers benefit from predictable maintenance windows, all while engineers achieve consistent performance across multiple sites.
Product Information
Extended Description
7BCFM3046A ABB: Condensor Fan 0.75 Hp 208 V (CFM3046A)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.75HP,1140RPM,3PH,60HZ,48YZ,3428M,O
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6203, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CFM3046A
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
B
Dimension Diagram
34LYJ280: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Resilient Mount
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt | Undefined Efficiency
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
48
Frequency (f)
60 Hz
Global Commercial Alias
CFM3046A
Gross Volume
3590.443 in³
Gross Weight
33 lb
Horsepower Rating UL/CSA
0.750 Hp
IC Class
OPEN
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
.75HP,1140RPM,3PH,60HZ,48YZ,3428M,OPEN
Lubrication
Regreasable
Made To Order
No
Medium Description
Condensor Fan, 0.75 HP, 1200 RPM, Frame Size 48Yz, ResilientMount Mounting, 3 Phase, OPEN Enclosure, 208-230/460 V, 60 Hz (CFM3046A)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
48YZ
Mounting Orientation
Horizontal
Mounting Position
F3
NEMA Design Code
B
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.75 Hp
Power Factor
59 %
Product Name
Condensor Fan
Product Net Depth / Length
22.875 in
Product Net Height
12.813 in
Product Net Weight
33 lb
Product Net Width
12.25 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3.3 A | 3 A | 1.5 A
Rated Efficiency
77 %
Rated Speed
1140 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.63 in
Short Description
0.75 HP, 1200 RPM, Frame Size 48Yz, ResilientMount, 3 PH, OPEN, 208-230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101105
Voltage Code
K
Voltage Rating
208 V | 230 V | 460 V
Feature the ABB 7BCFM3046A delivers a 0.75 HP, 3-phase condenser fan configured for open enclosure cooling, providing dependable airflow with measurable efficiency gains. Business Impact: reduced energy waste thanks to a 77% efficiency rating and a favorable power factor of 59%, lowering operating costs over the fan’s service life. Application: ideal for condenser units in industrial HVAC and refrigeration environments where open enclosures are standard and 208–230/460 V power is available. Feature the 48YZ frame and foot-mounted resilient mount for versatile installation and vibration damping, delivering stable operation in tight spaces and retrofit projects. Business Impact: simplified retrofits and faster commissioning with reduced vibration and noise. Application: installations requiring horizontal F3 mounting and reliable startup with Direct On Line control, supporting quick on-site integration. Feature the 1140 r/min running speed and 1200 r/min synchronous speed, ensuring compatible cooling cycles and consistent condenser performance. Business Impact: improved heat rejection efficiency, enabling tighter temperature control with lower energy expenditure. Application: OEMs and service providers seeking standardized components across multi-site deployments. Feature the regreasable bearings and robust 6203 ball bearings, combined with open enclosure design, delivering long service intervals and ease of maintenance. Business Impact: lower maintenance costs and fewer unplanned outages. Application: maintenance teams performing routine checks and lubrication scheduling.
Get a Quick Quote for a ABB 7BCFM3046A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCFM3046A?
Enquire Now
FAQs
The 7BCFM3046A is designed for foot-mounted, horizontal mounting (F3) with a resilient mount. Use Direct On Line starting at 3-phase 208–230/460 V, 60 Hz, and ensure the open enclosure is compatible with the unit’s OPEN enclosure specification. Verify shaft alignment, provide adequate clearance for airflow, and ensure mounting hardware matches the 48YZ frame to prevent vibration and ensure service access.
Key specs include 0.75 HP rated power, 1140 r/min running speed, 3-phase operation, voltage range 208–230/460 V, and 60 Hz. Rated current ranges around 3.3 A / 3 A / 1.5 A depending on operating condition, with a power factor of about 59% and efficiency near 77%. These figures support reliable condenser cooling with predictable energy use.
Yes. The fan is designed for condenser applications with open enclosure and 48YZ frame, providing reliable airflow for heat rejection in HVAC and refrigeration systems. Its 3-phase 60 Hz design, direct-on-line start, and robust bearings support continuous operation in demanding environments while maintaining unit compactness and ease of integration with standard power supplies.
This model carries CSA and UR certifications, supporting North American regulatory compliance. It adheres to NEMA design code B and is built for open enclosure configurations, with a 48YZ frame and standard 3-phase 60 Hz operation. These certifications simplify procurement, quality assurance, and OEM integration.
Take advantage of the regreasable bearings and 6203 ball bearing system for long service life. Schedule periodic lubrication per operating conditions and monitor vibration to catch mount loosening early. With 0 day lead time and broad warehouse stock, you can standardize spares, reducing downtime and maintenance costs across sites.
